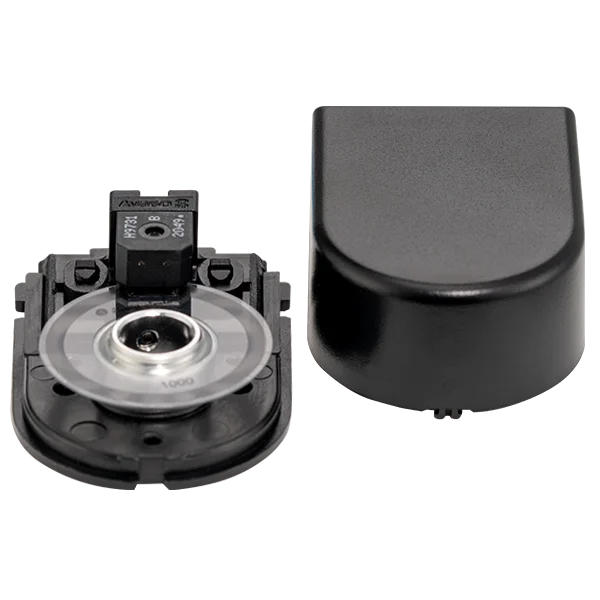

HS30A

|PRODUCTS|

HS30A

Model Encoder Modules_Incremental
96~1024PPR │ AB signal

Product Description

● Application
‧Automated equipment

● Feature
‧ Two channel quadrature TTL compatible outputs
‧ Operating temp: -40℃ ~ 85℃
‧ Efficient Mounting Mechanism
‧ Compact size
‧ Excellent Value
‧ Single 5V DC supply
‧ RoHS compatible

Share:

Resolution :

9610019220025630036040050051210001024Customized

Disc :

P (Plastic)M (Metal)

Hollow :

4mm5mm6mm6.35mm8mmCustomized

Output circuit :

TTL (Single-ended)

Supply voltage :

4.5~5.5 V

Installation tool :

Comes with the goods according to ratio

Quantity:

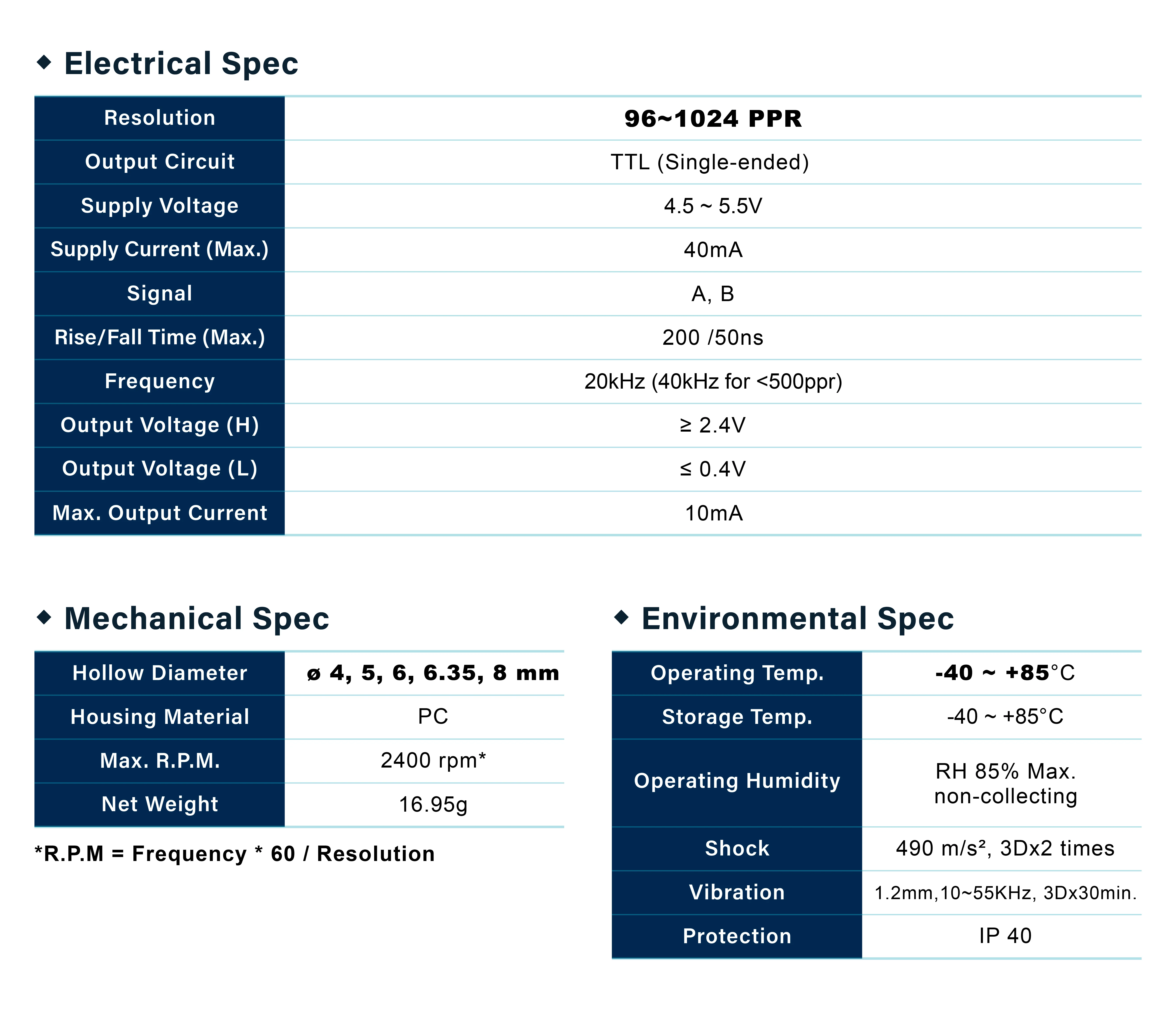

Specification

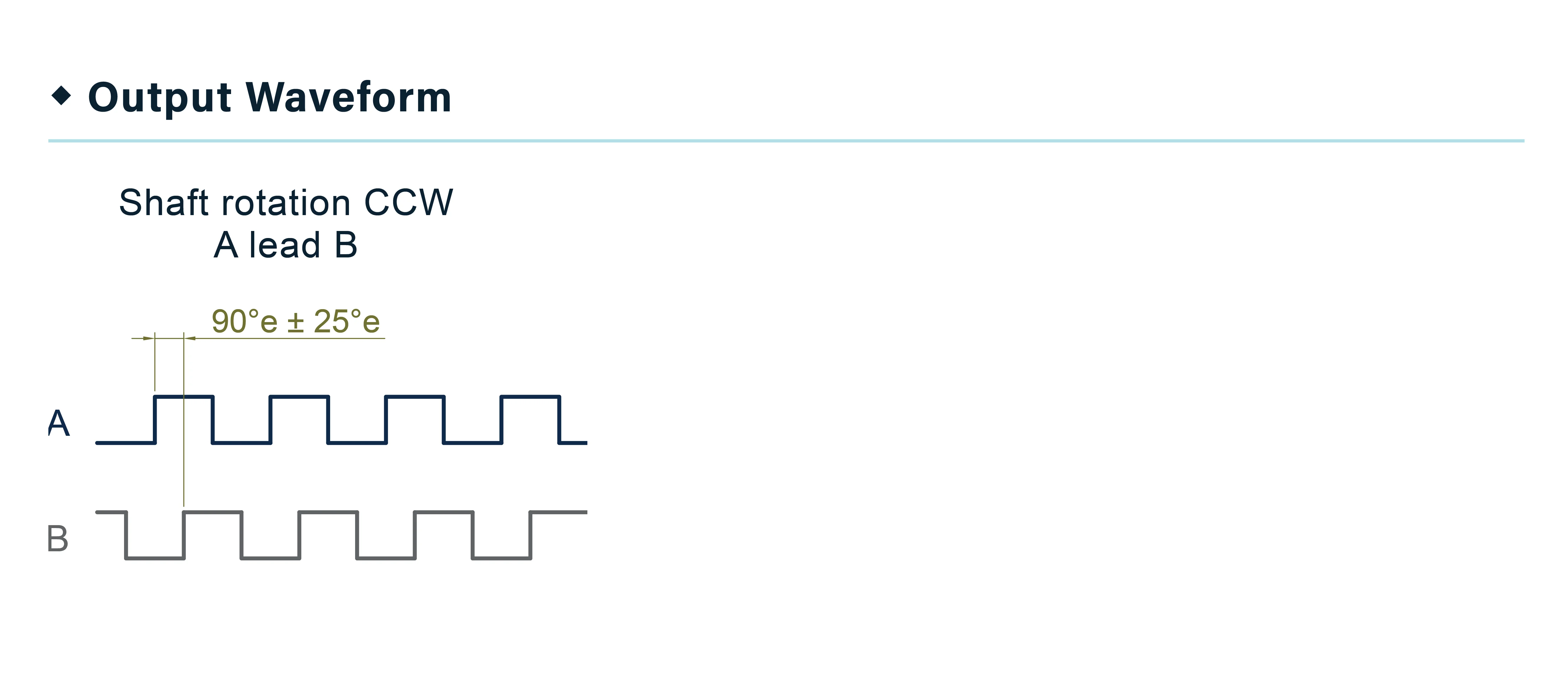

Output Waveform

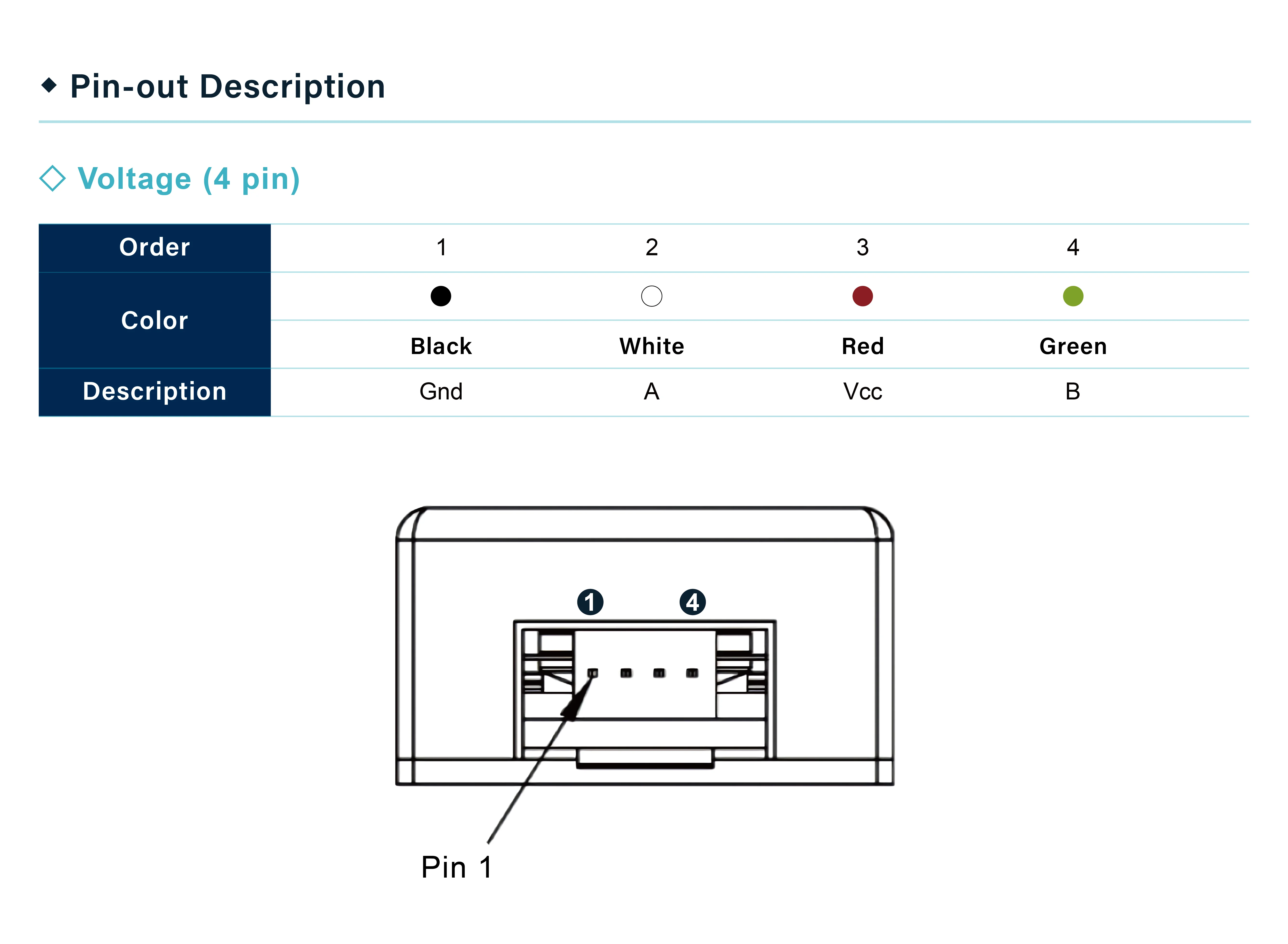

Pin-out Description

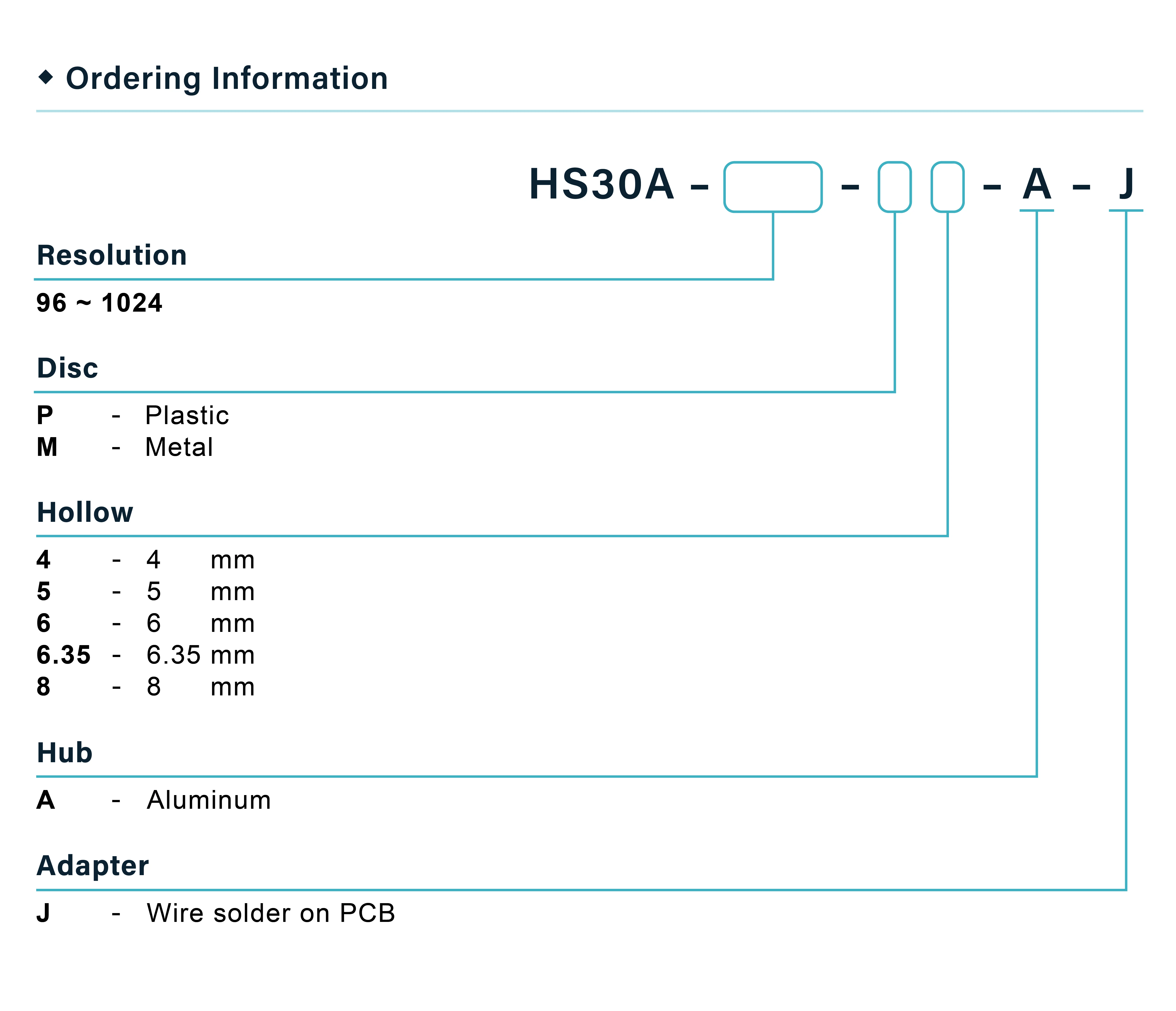

Ordering Information

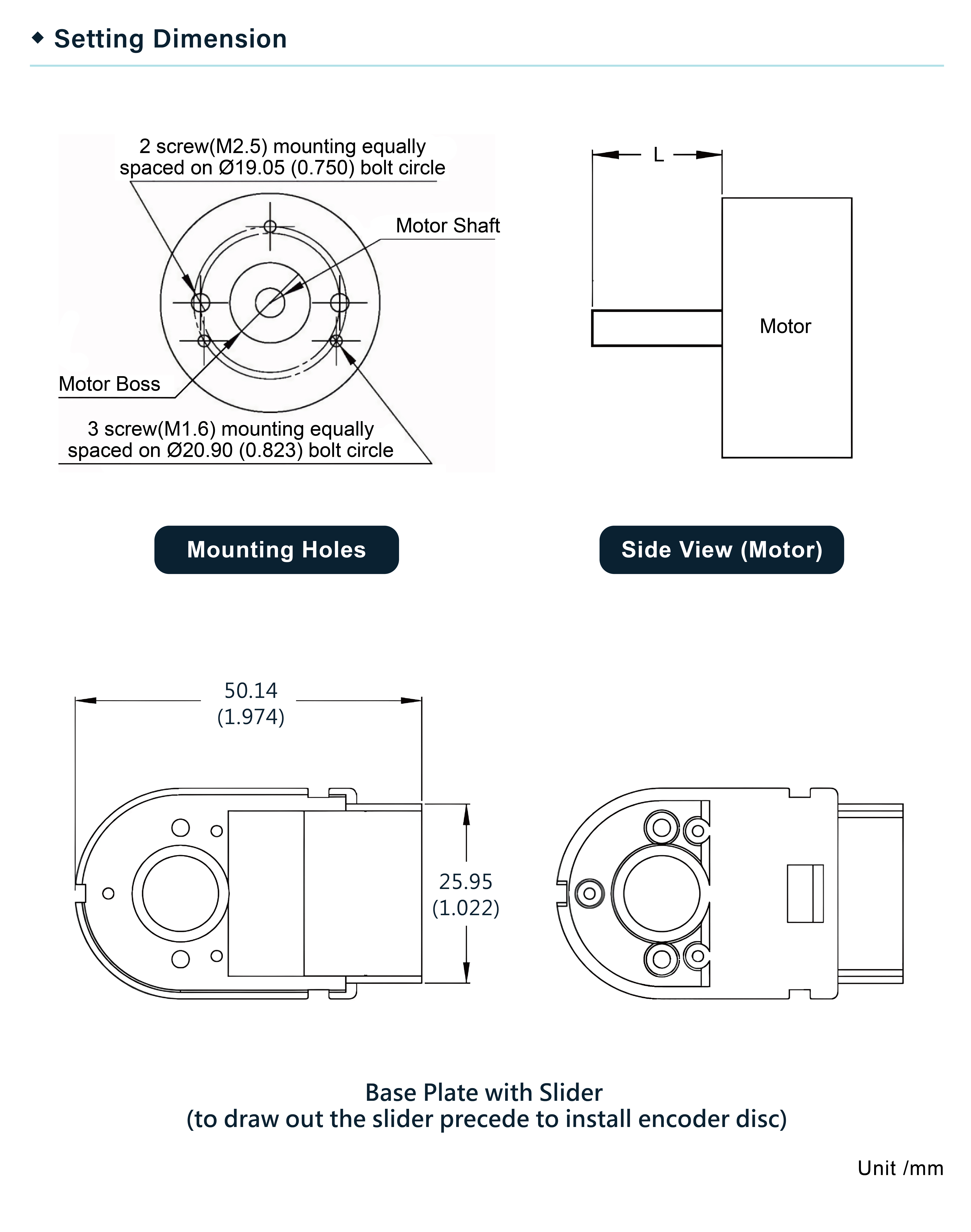

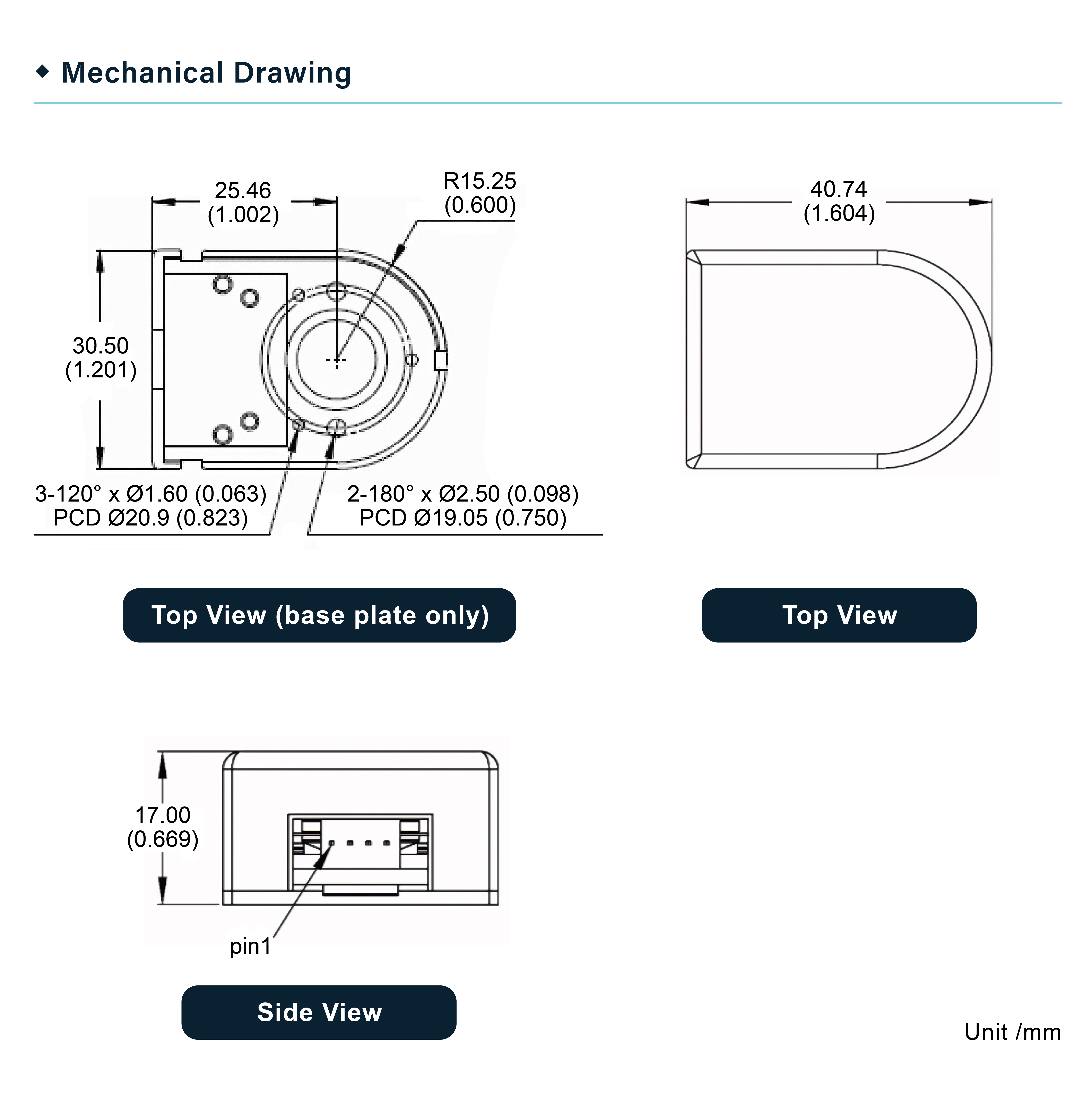

Mechanical Drawing /Setting Dimension
Assembly Guide
Downloads


30A02-en-0505-webp


30A04-en-0505-webp


Parts List

A. Cover x1

B. Sensor+Base x1

C. Screws x2

D. Hubdisk x1

Installation Tool

E. Centering tool x1

F. Hex wrench x1

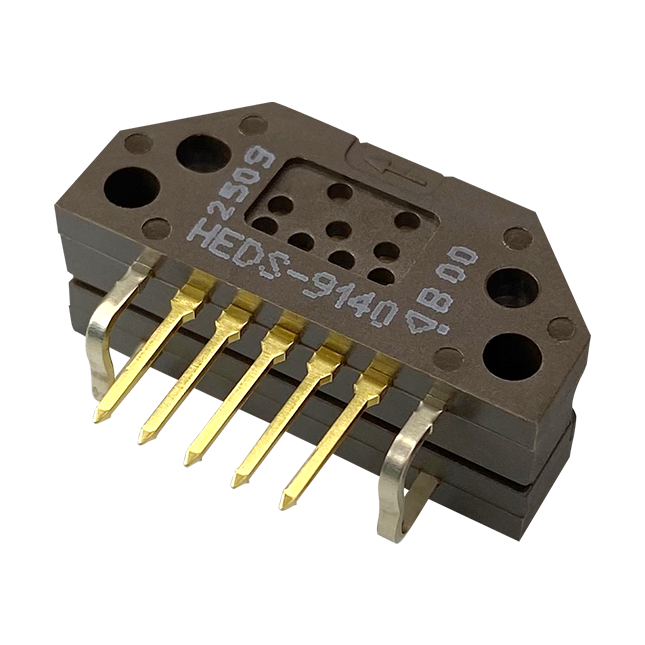

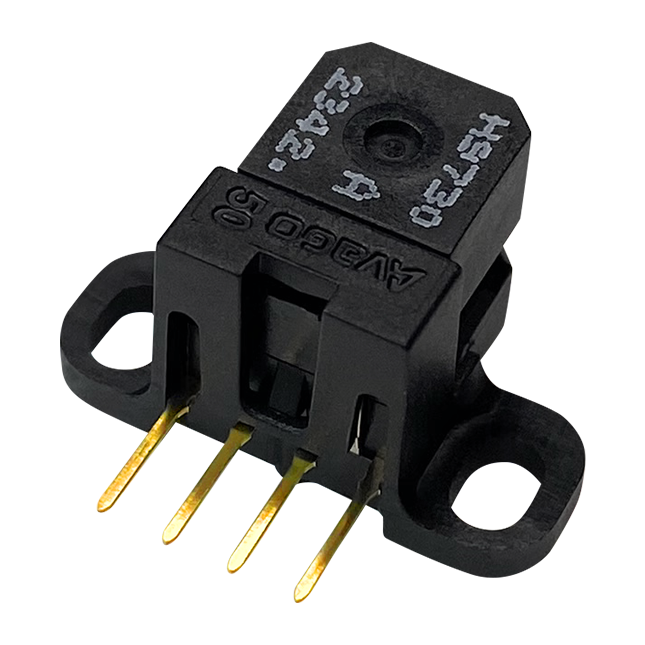

  • Sensor Introduction





Sensor 97



HS30A / HS301



Sensor 91



HS30B / HS302

HS30C / HS303

  •  Assembly Instructions :

1.

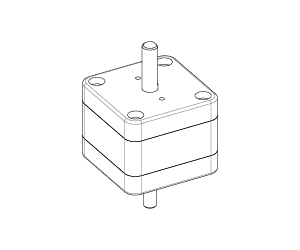

Prepare the motor.

2.

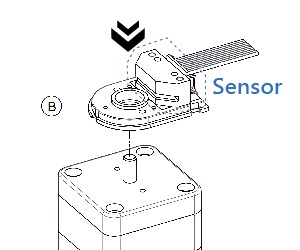

Place the encoder 97 base with sensor.

※HS30A Use Sensor 97

3.

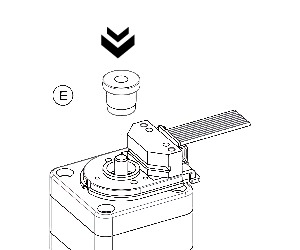

Place the centering tool onto the shaft.

4.

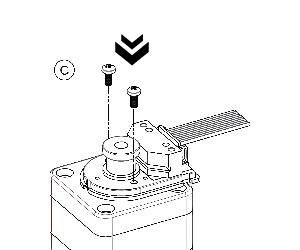

Tighten the mounting screws.

5.

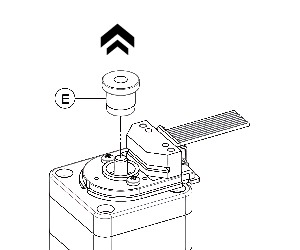

Remove the centering tool.

6.

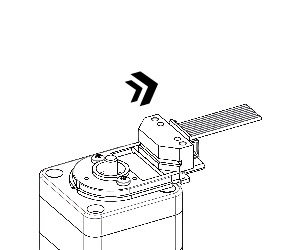

Pull out the slider.

7.

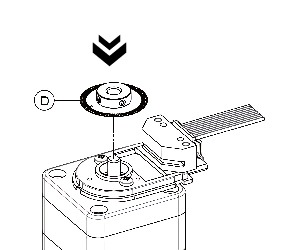

Slip the hubdisk assembly onto the shaf.

8.

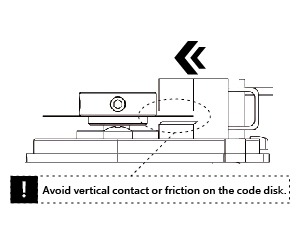

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

9.

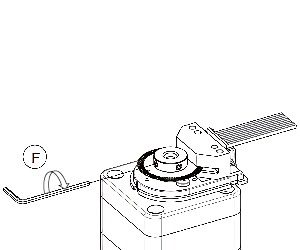

Tighten the set screws.

10.

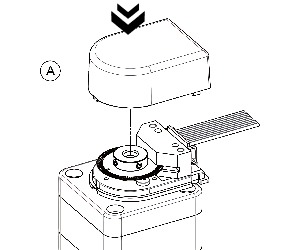

Close the cover.

11.

The assembly process is now completed.

Specification

Output Waveform

30A02-en-0505-webp
Pin-out Description

Ordering Information

30A04-en-0505-webp
Mechanical Drawing /Setting Dimension


Assembly Guide

Parts List

A. Cover x1

B. Sensor+Base x1

C. Screws x2

D. Hubdisk x1

Installation Tool

E. Centering tool x1

F. Hex wrench x1





  • Sensor Introduction





Sensor 97



HS30A / HS301



Sensor 91



HS30B / HS302

HS30C / HS303

  •  Assembly Instructions :

1.

Prepare the motor.

2.

Place the encoder 97 base with sensor.

※HS30A Use Sensor 97

3.

Place the centering tool onto the shaft.

4.

Tighten the mounting screws.

5.

Remove the centering tool.

6.

Pull out the slider.

7.

Slip the hubdisk assembly onto the shaf.

8.

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

9.

Tighten the set screws.

10.

Close the cover.

11.

The assembly process is now completed.
