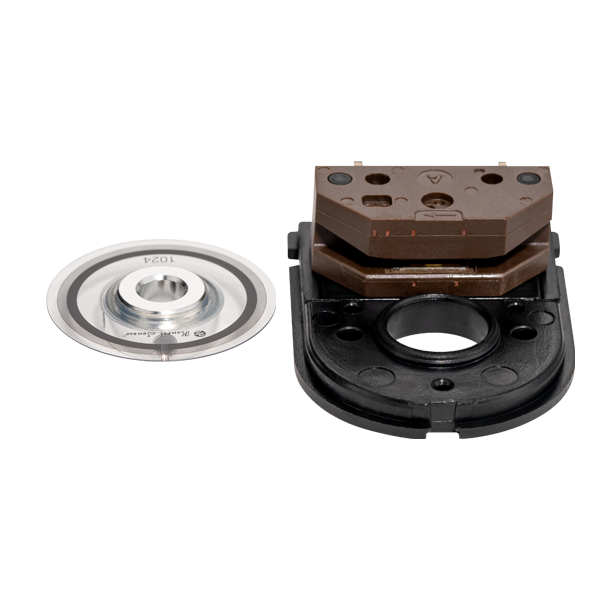

HS30C
Model Encoder Modules_Incremental

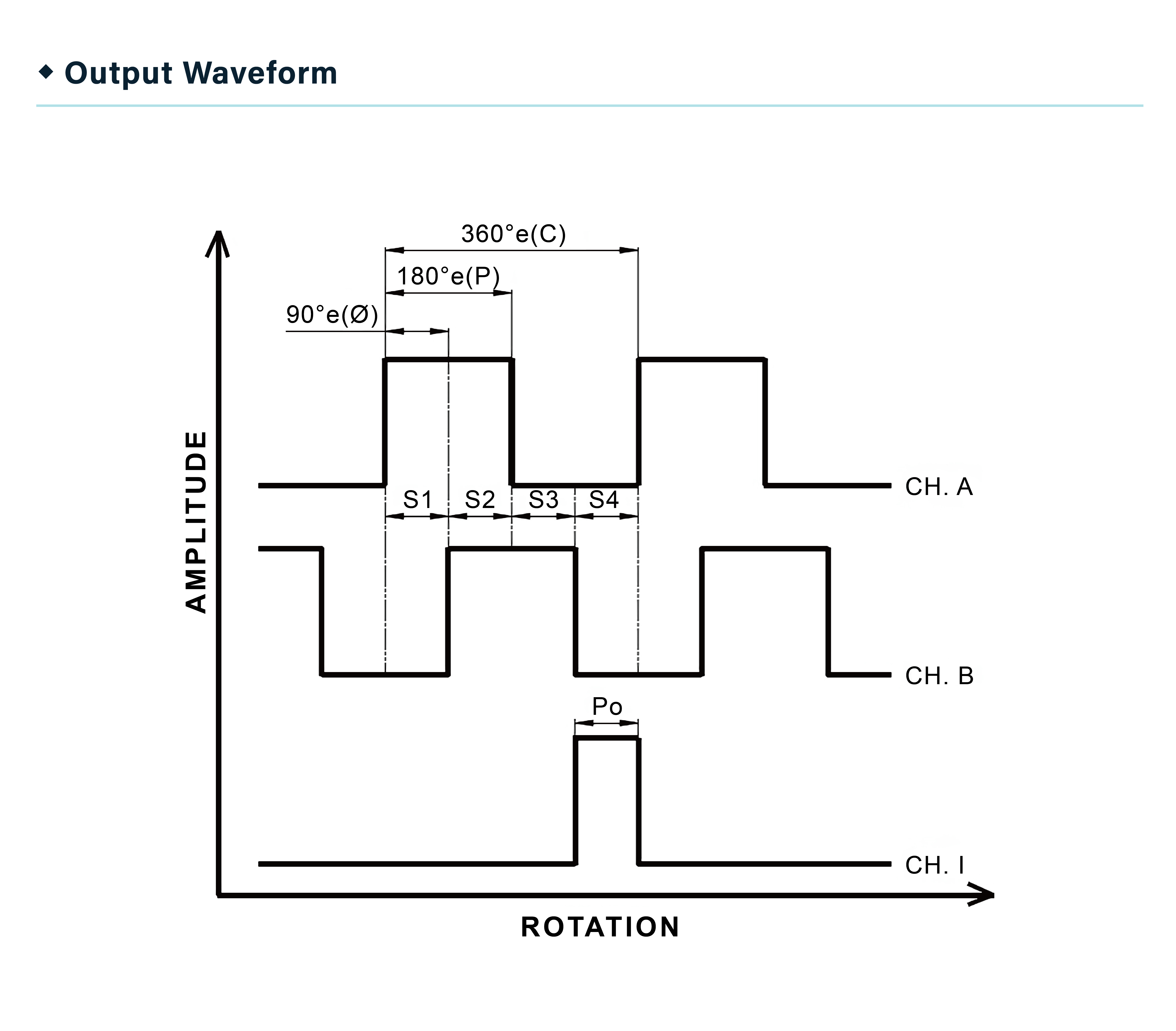

1250~5000 PPR │ ABZ signal

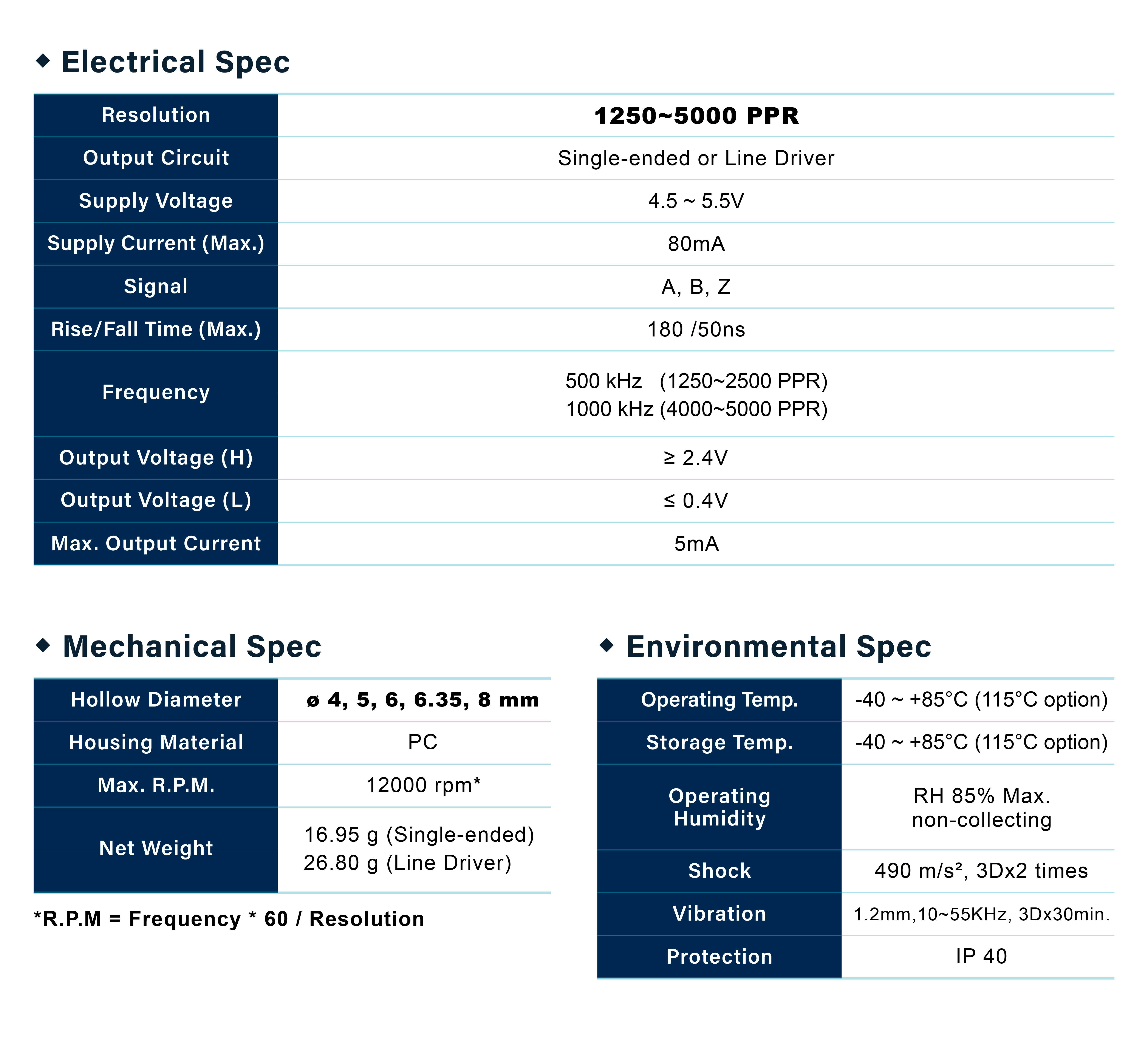

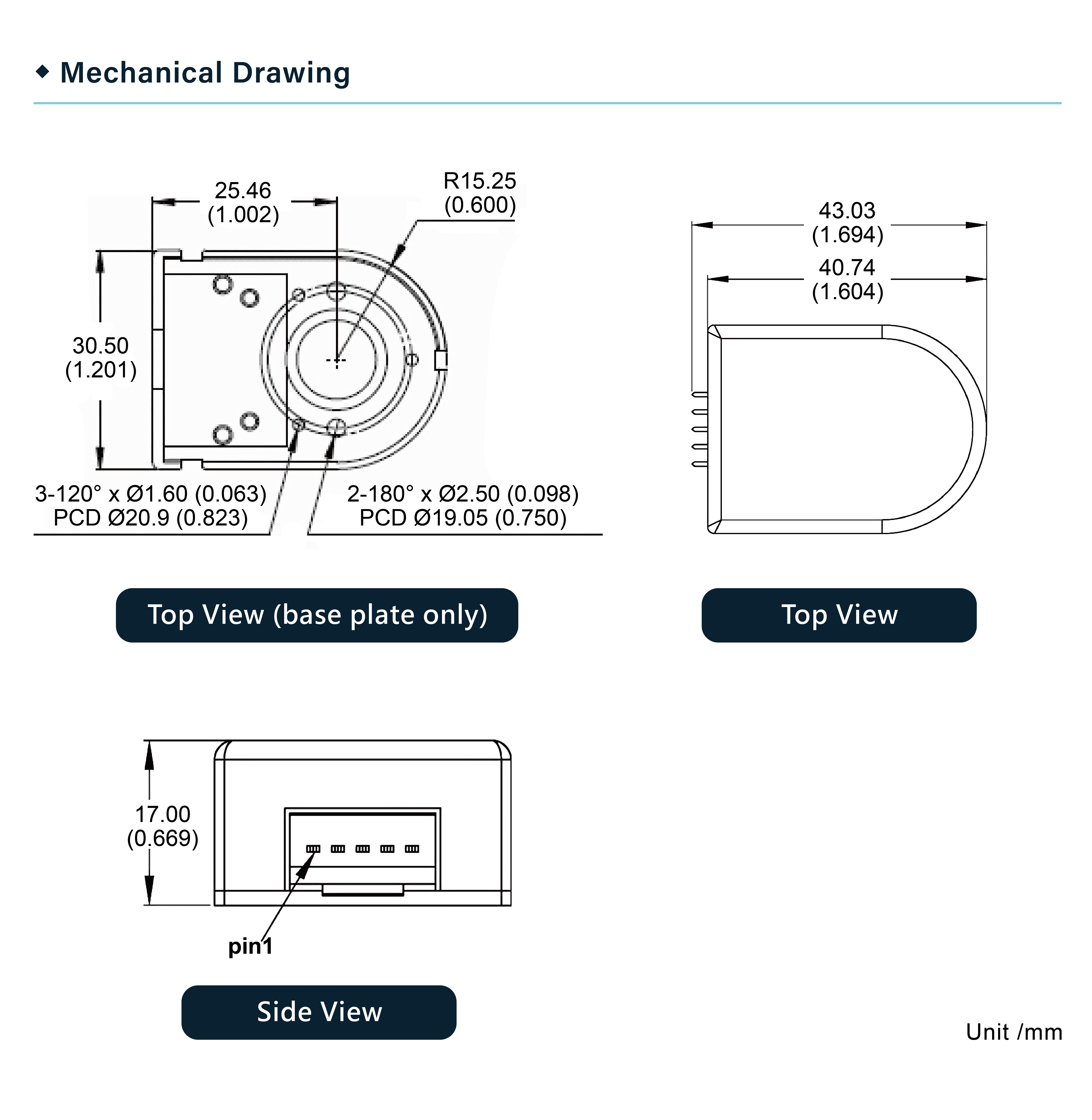

Product Description

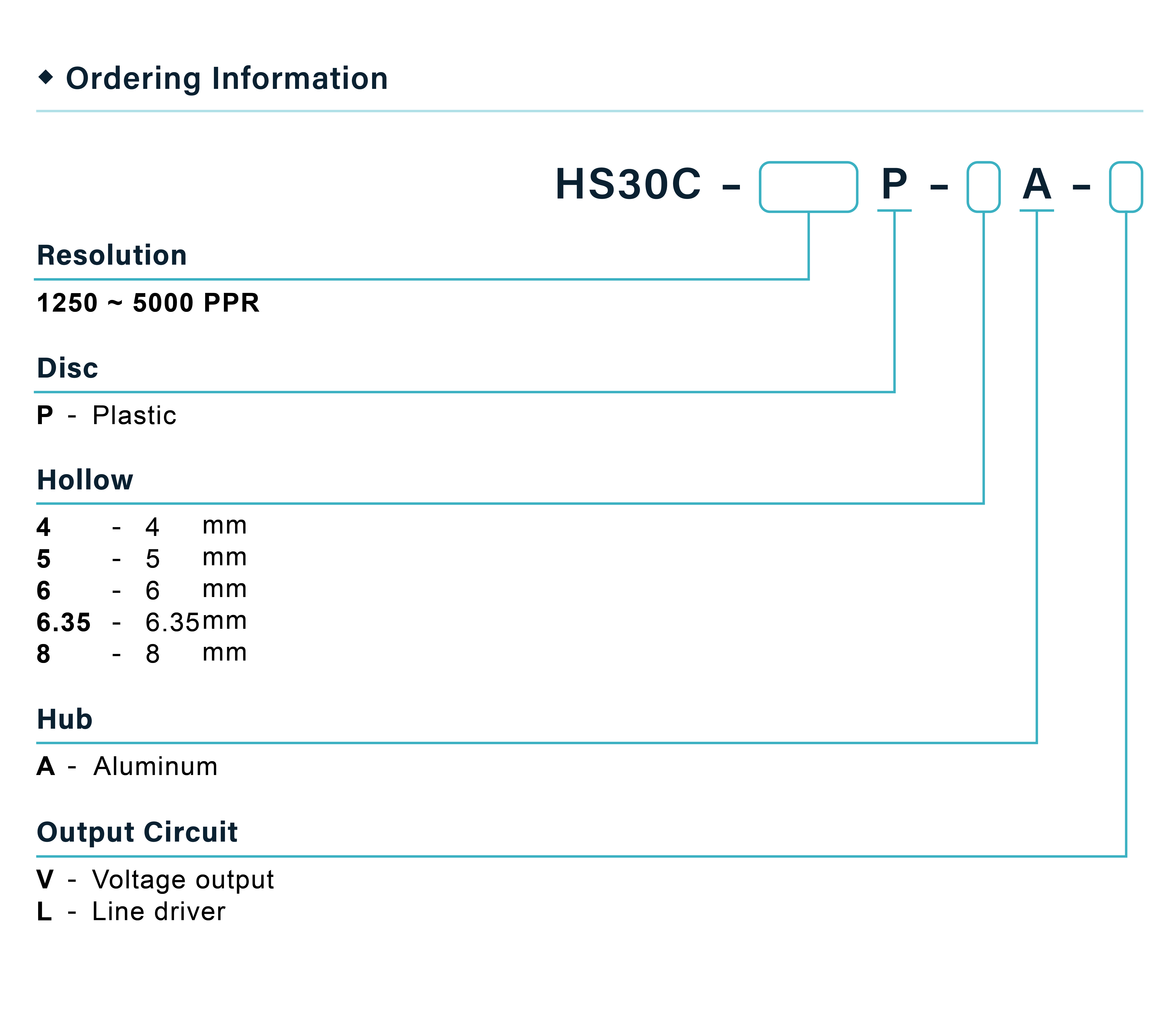

Resolution ：
Hollow ：

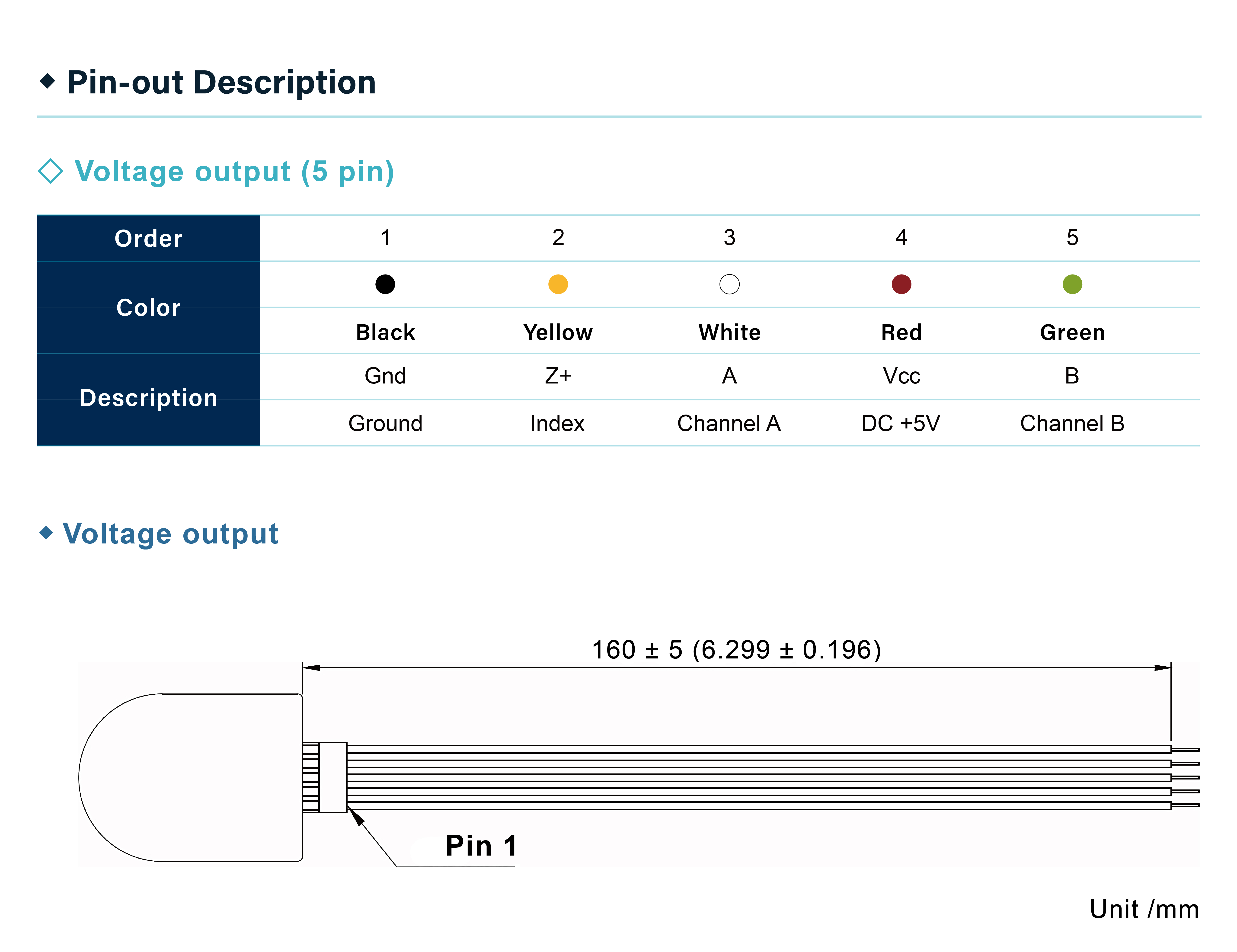

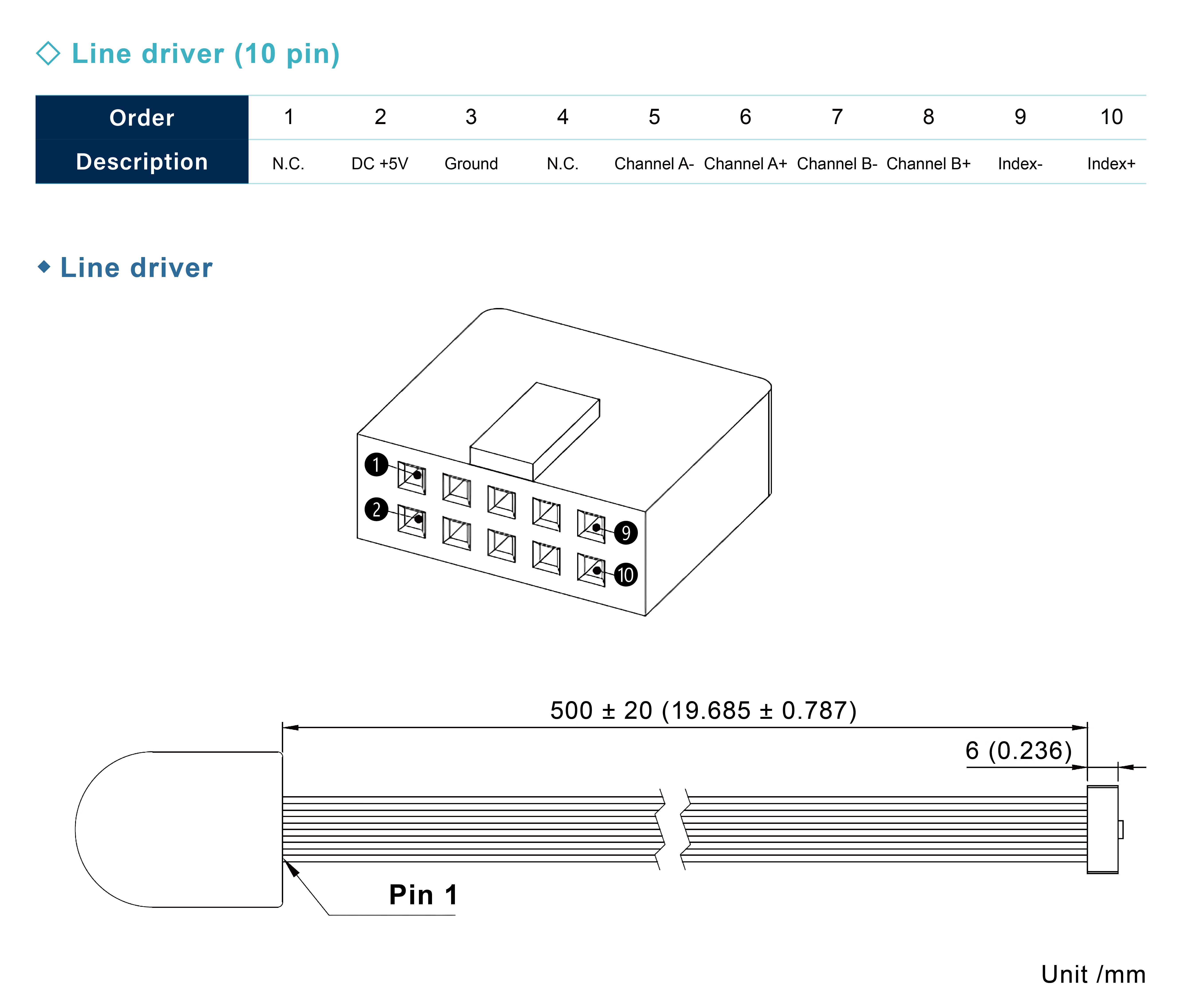

Output circuit ：
Supply voltage ：
Installation tool ：
Quantity：
A. Cover x1
B. Sensor+Base x1
C. Screws x2
D. Hubdisk x1
E. Centering tool x1
F. Hex wrench x1
HS30B / HS302
HS30C / HS303
HS30A / HS301
Prepare the motor.

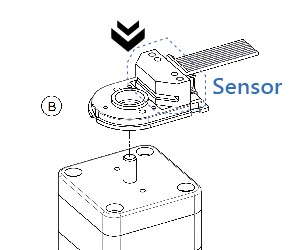

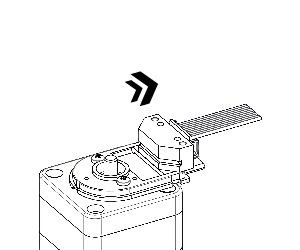

Place the encoder base with sensor.

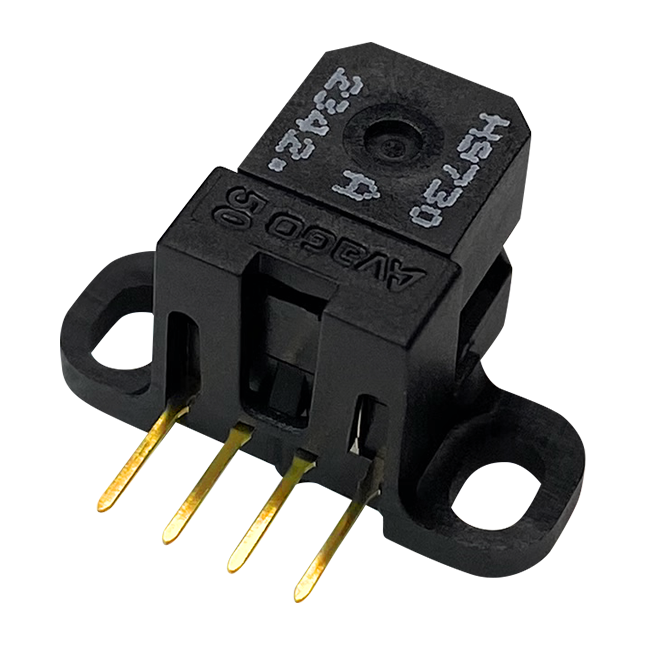

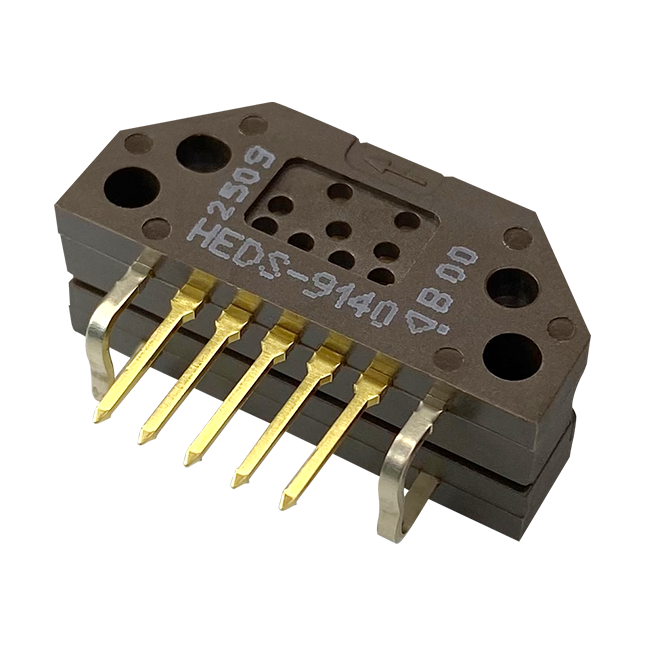

※HS30C Use Sensor 91

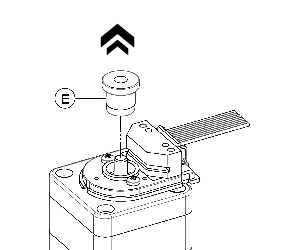

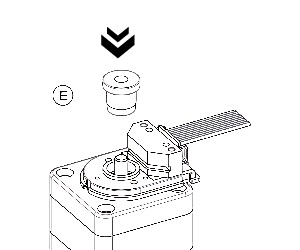

Place the centering tool onto the shaft.

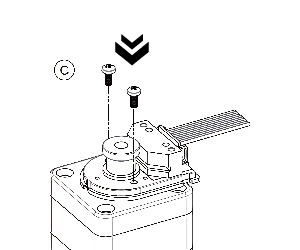

Tighten the mounting screws.
Remove the centering tool.

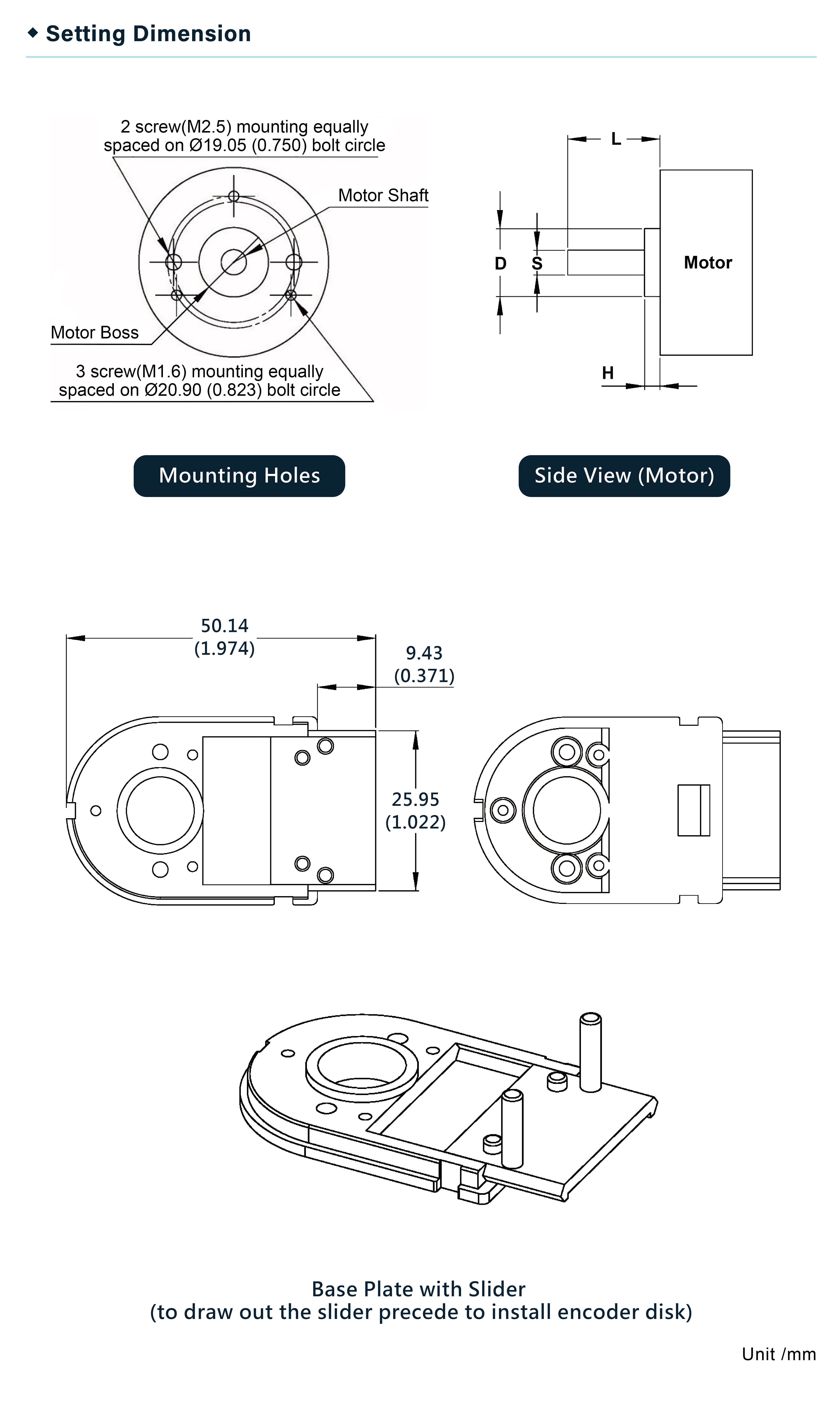

Pull out the slider.

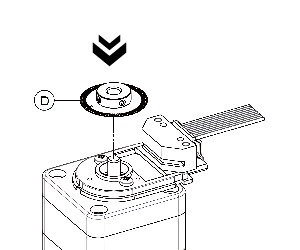

Slip the hubdisk assembly onto the shaf.
Push the slider back to verify the code disk position.

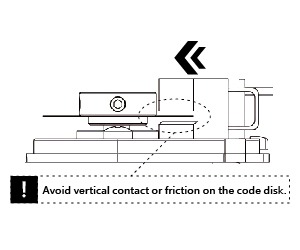

Install the disk with evenly spaced vertical clearance, slightly biased downward.

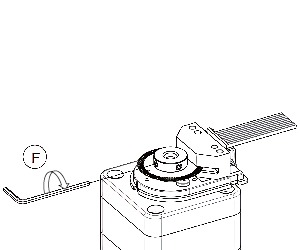

Tighten the set screws.

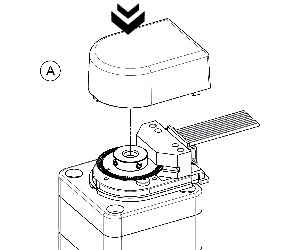

Close the cover.
The assembly process is now completed.
A. Cover x1
B. Sensor+Base x1
C. Screws x2
D. Hubdisk x1
E. Centering tool x1
F. Hex wrench x1
HS30B / HS302
HS30C / HS303
HS30A / HS301
Prepare the motor.
Place the encoder base with sensor.
※HS30C Use Sensor 91
Place the centering tool onto the shaft.
Tighten the mounting screws.
Remove the centering tool.
Pull out the slider.
Slip the hubdisk assembly onto the shaf.
Push the slider back to verify the code disk position.
Install the disk with evenly spaced vertical clearance, slightly biased downward.
Tighten the set screws.
Close the cover.
The assembly process is now completed.
