HS30B

|PRODUCTS|

HS30B

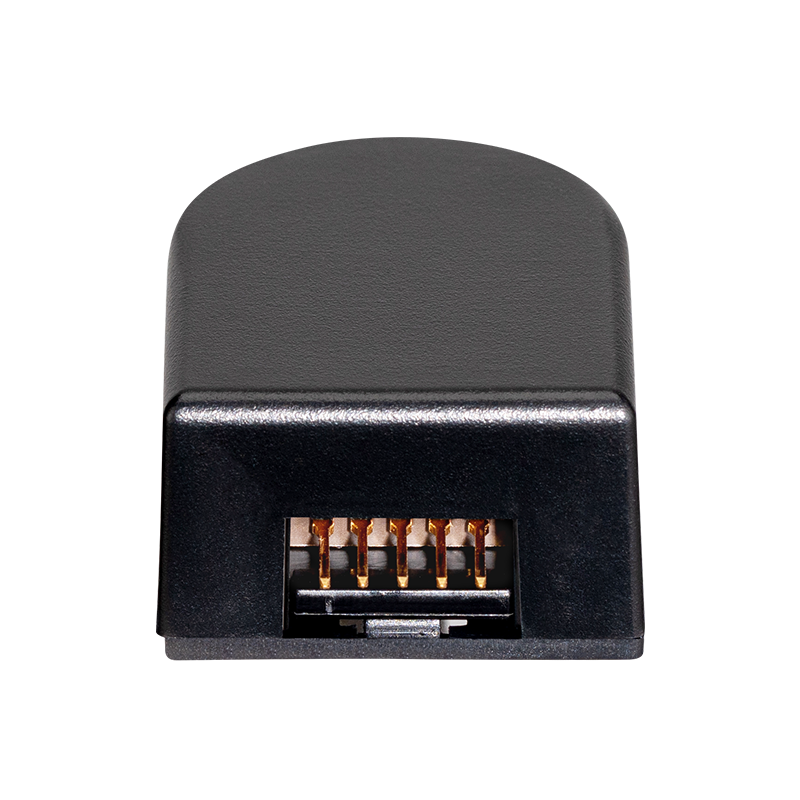

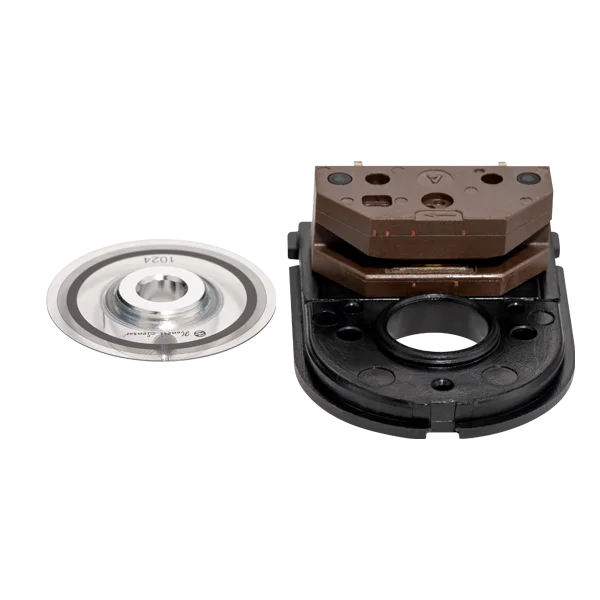

Model Encoder Modules_Incremental
100~1024 PPR │ ABZ signal

Product Description

● Application
‧Automated equipment

Share:

Resolution :

10020025636040050051210001024Customized

Hollow :

4mm5mm6mm6.35mm8mmCustomized

Output circuit :

V (Voltage output)L (Line driver)

Supply voltage :

4.5~5.5 V

Installation tool :

Comes with the goods according to ratio

Quantity:

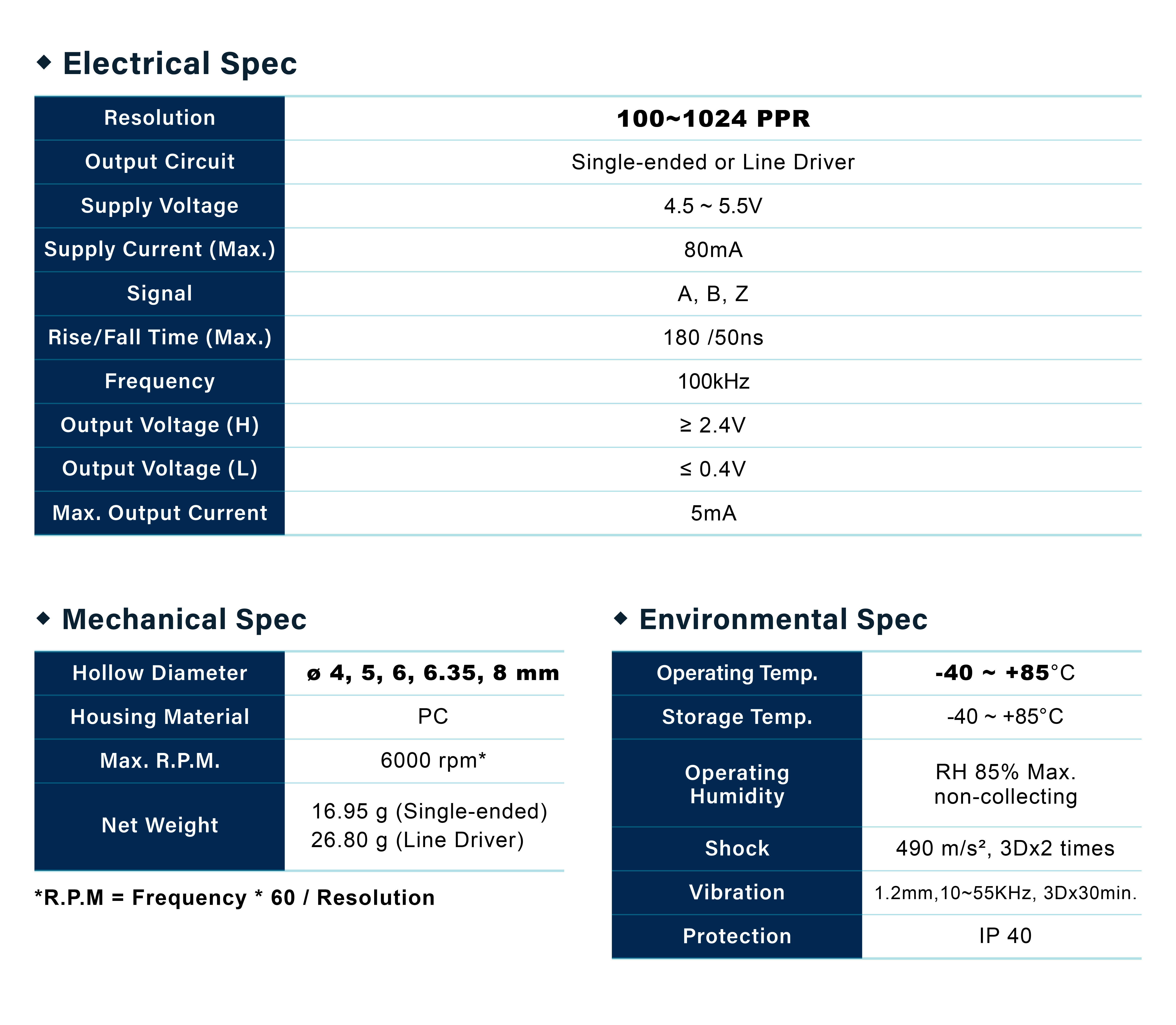

Specification

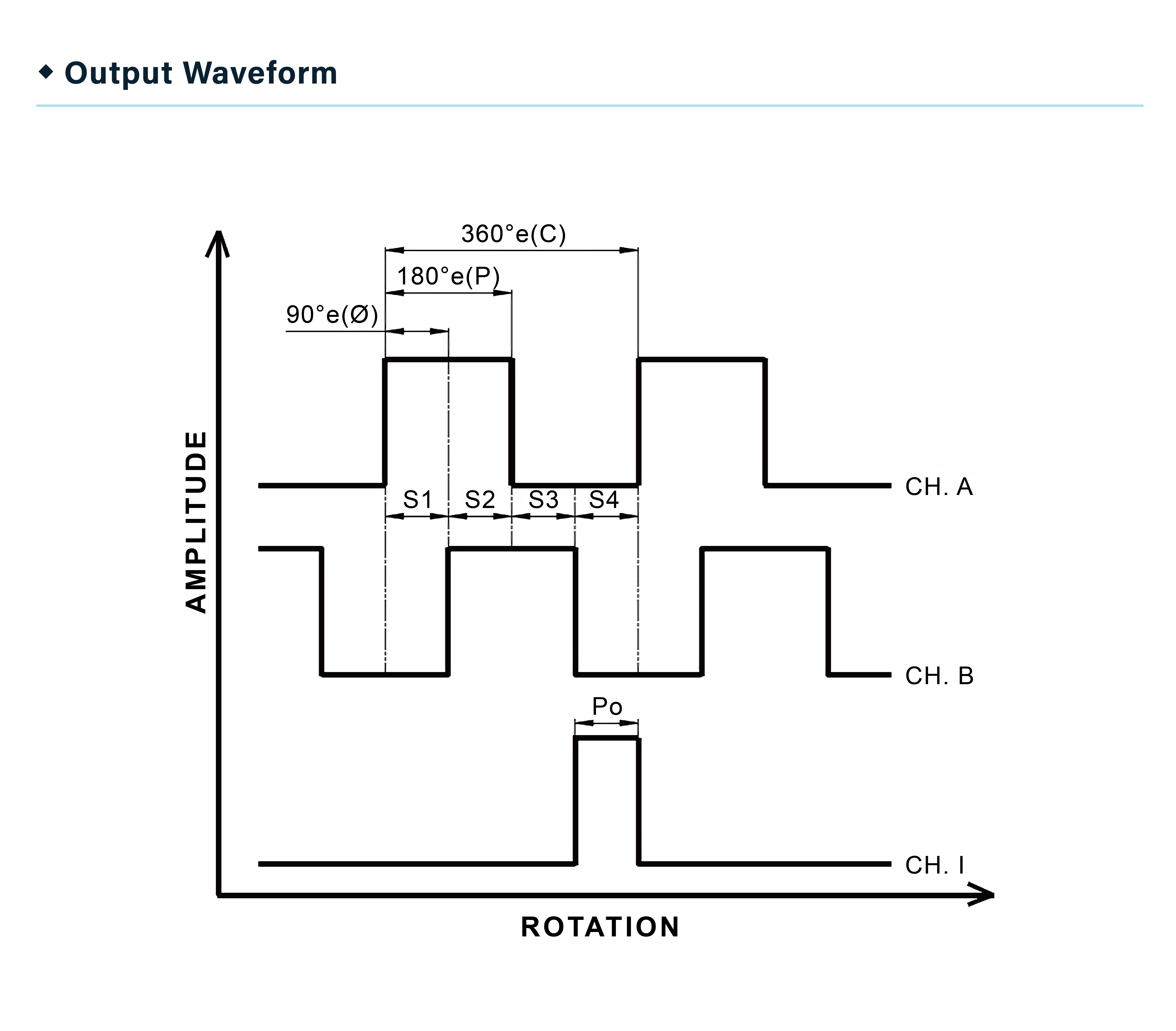

Output Waveform

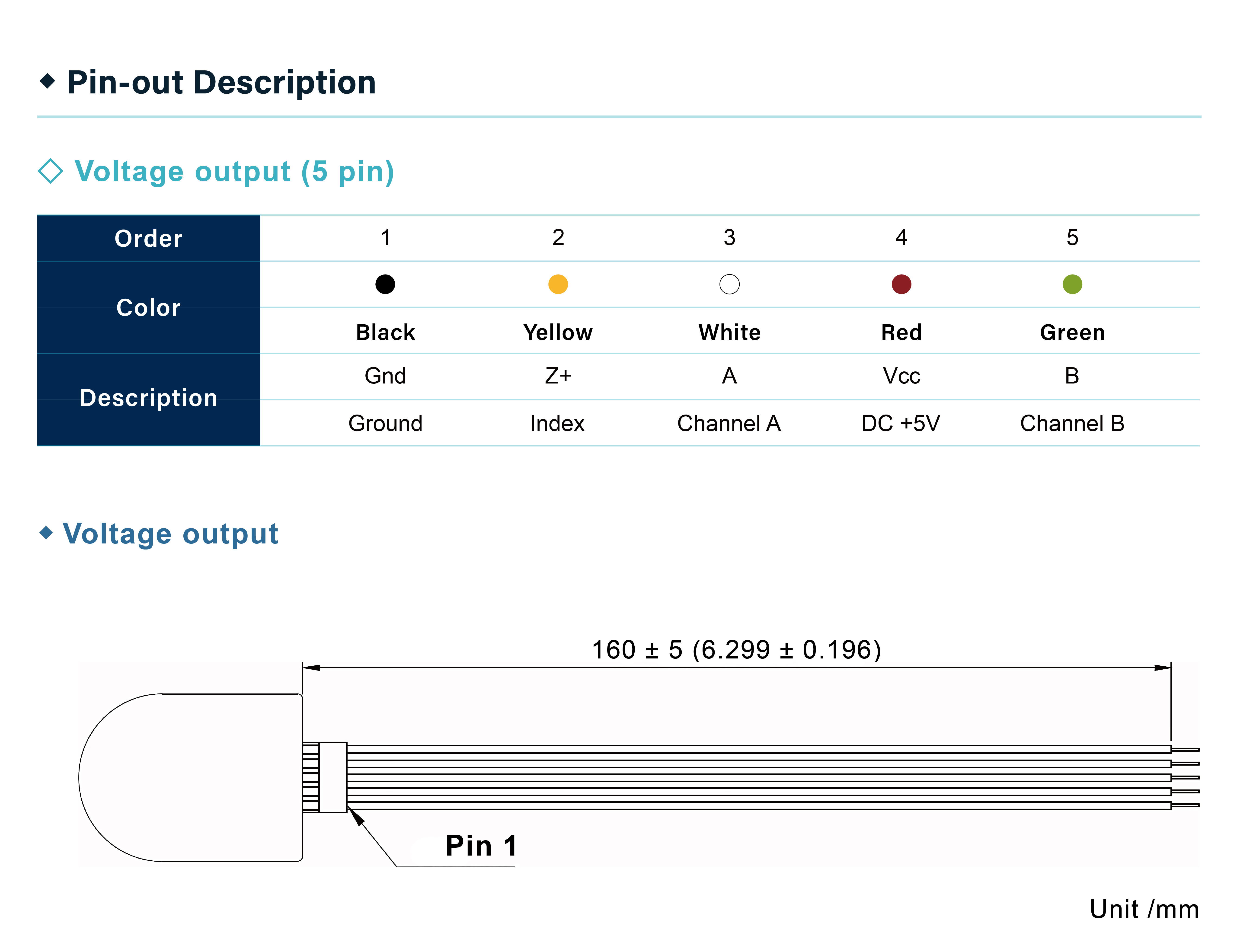

Pin-out Description

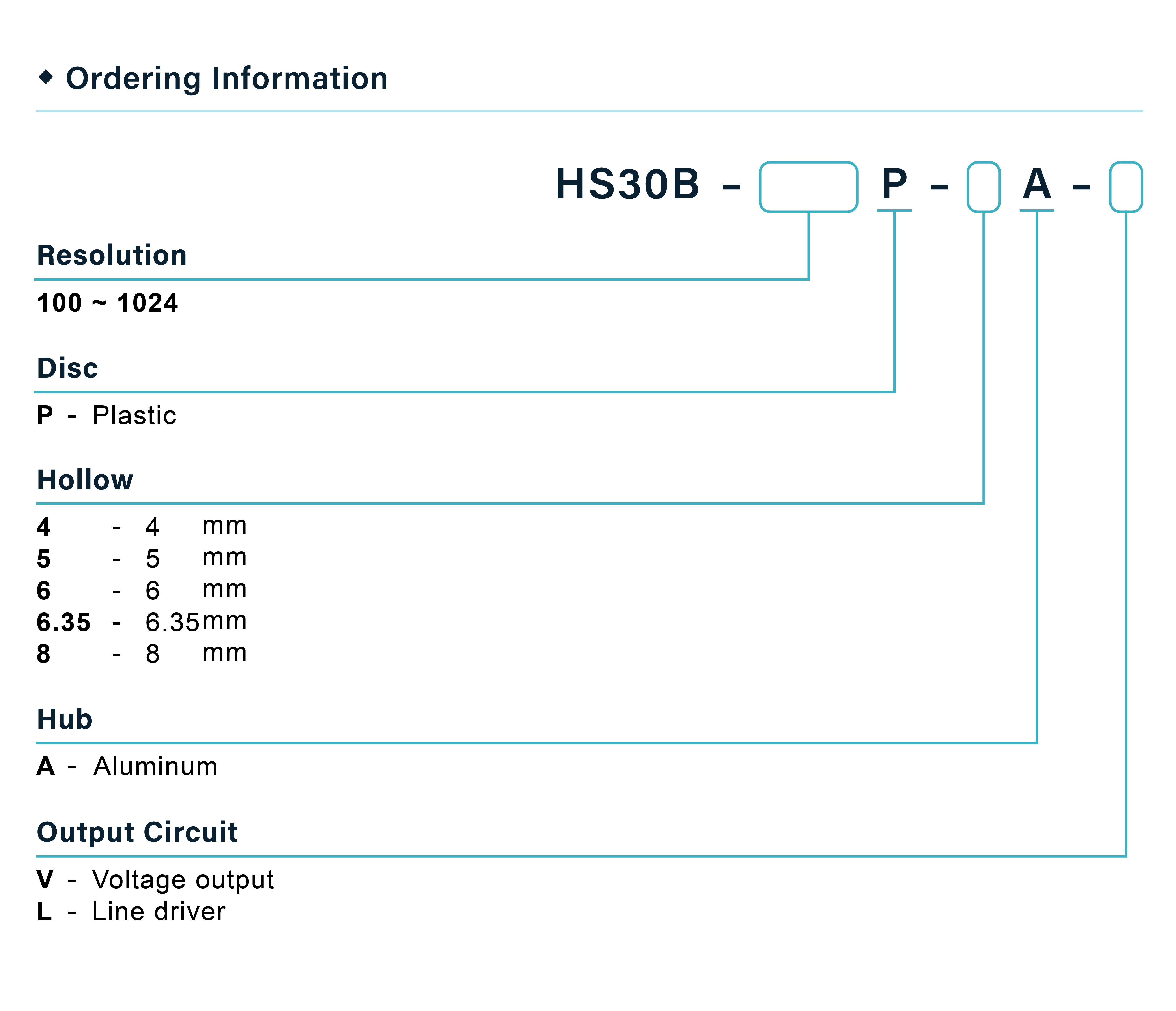

Ordering Information

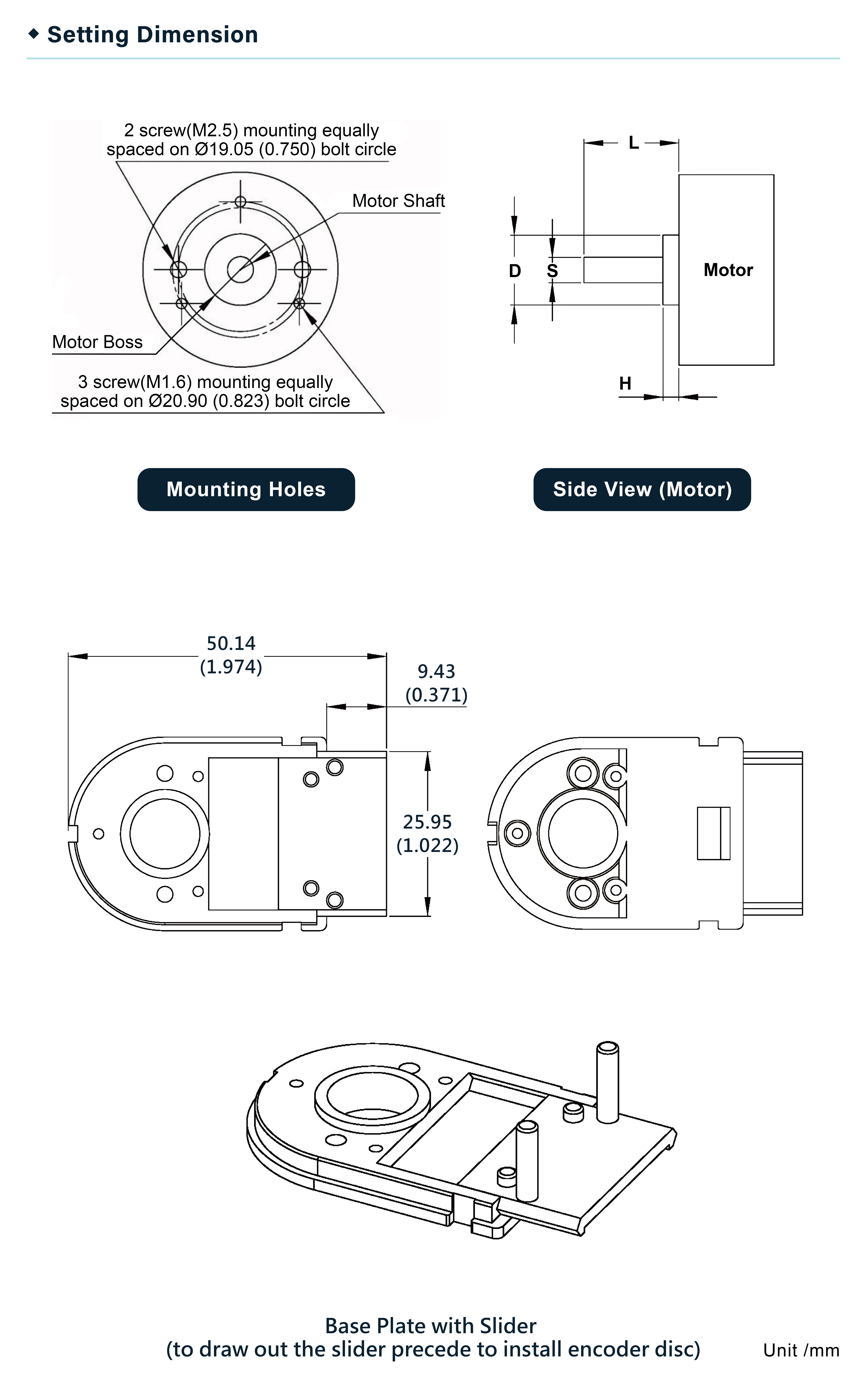

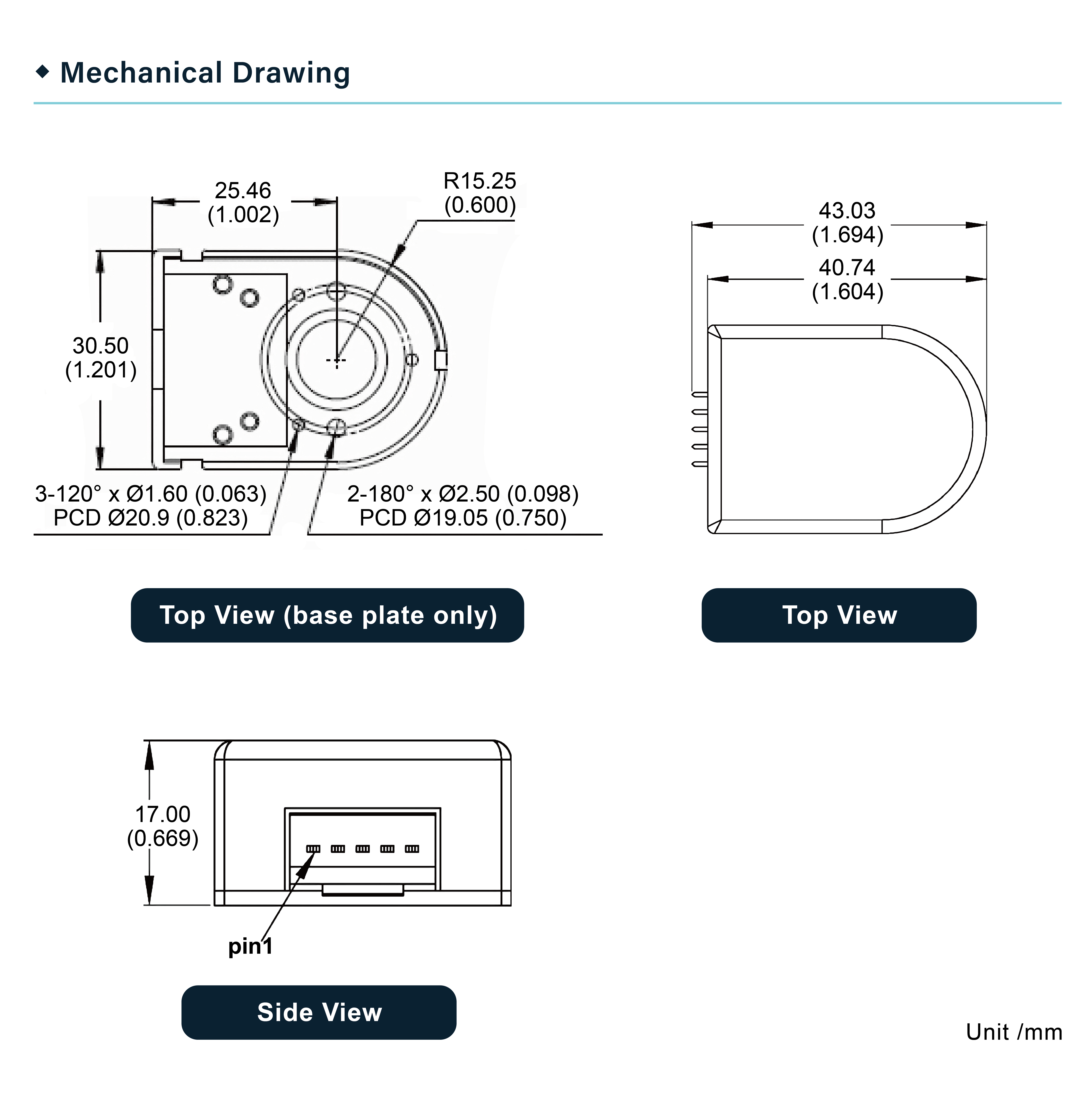

Mechanical Drawing /Setting Dimension
Assembly Guide
Downloads






Cable: UL1430/ AWG26 Insulated Wire

Connector: DuPont 65039-032 with Both. 4825X-000

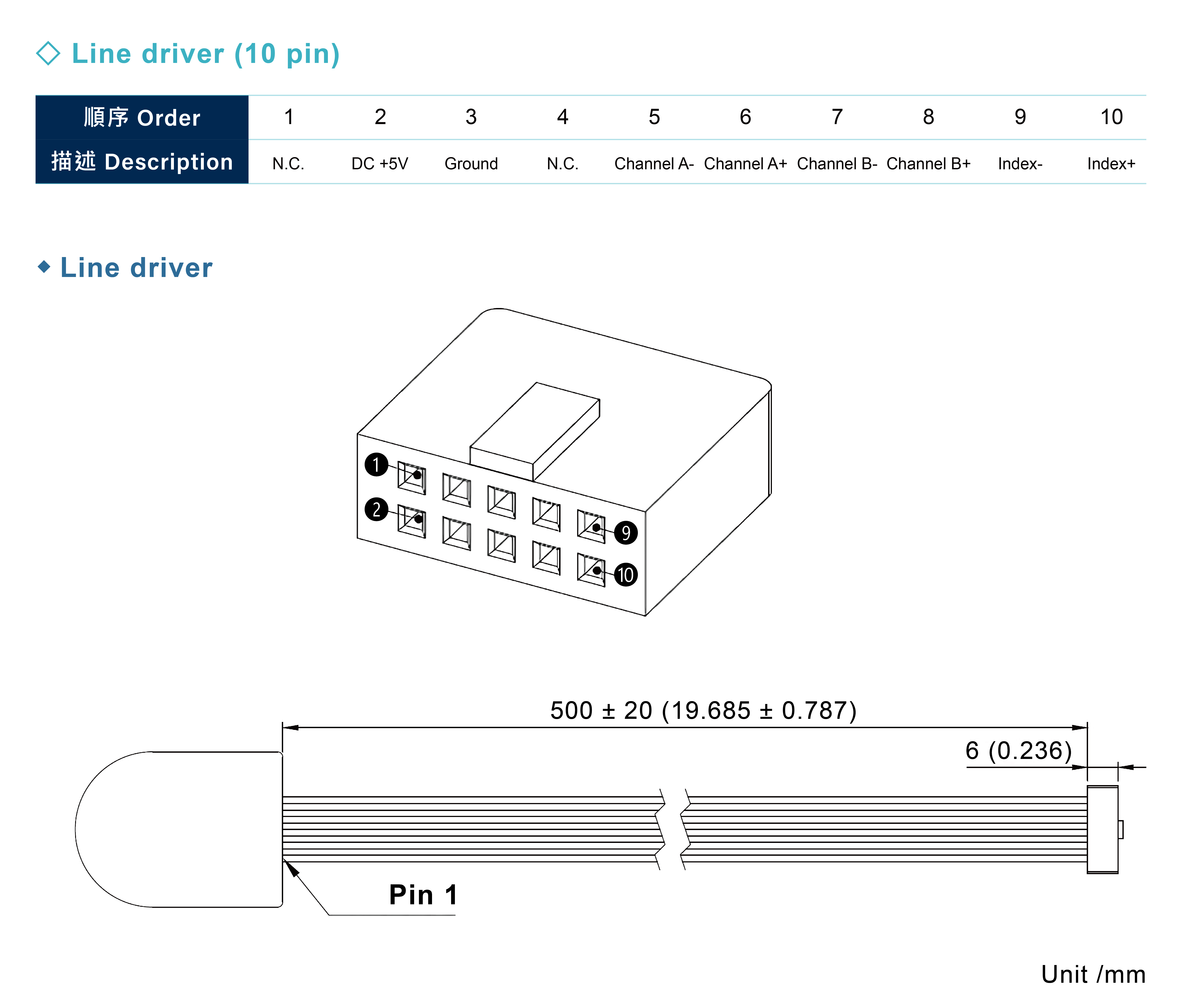

Cable: 10 conductor ribbon cable

Connector: 10 position IDC connector




Parts List

A. Cover x1

B. Sensor+Base x1

C. Screws x2

D. Hubdisk x1

Installation Tool

E. Centering tool x1

F. Hex wrench x1

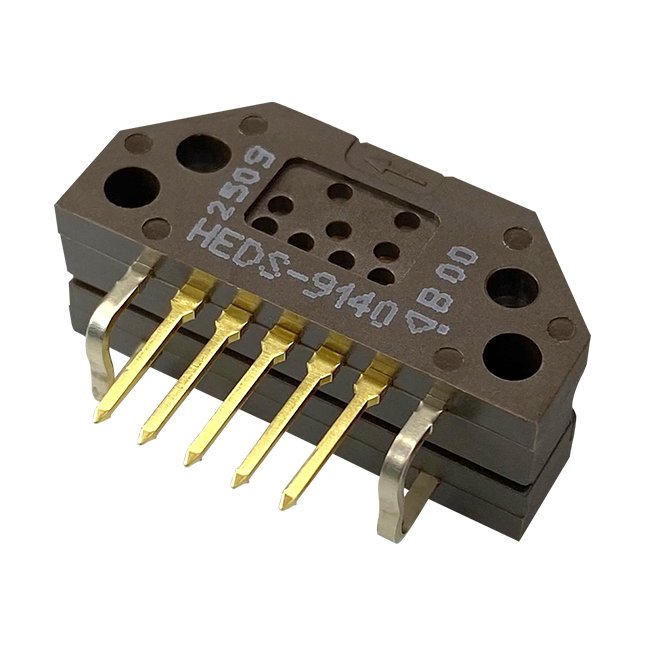

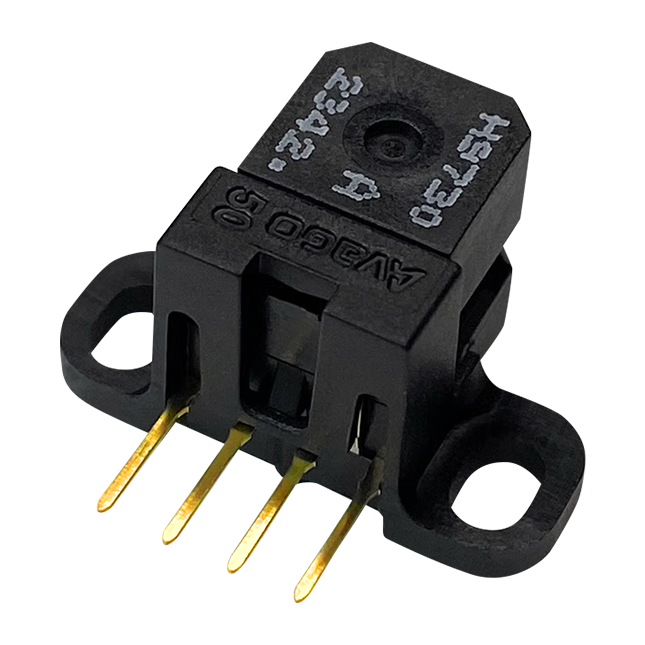

  • Sensor Introduction





Sensor 91



HS30B / HS302

HS30C / HS303



Sensor 97



HS30A / HS301

  • Assembly Instructions :

1.

Prepare the motor.

2.

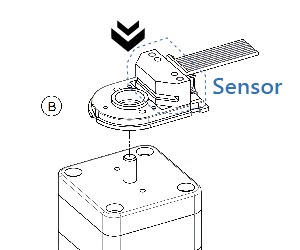

Place the encoder 91 base with sensor.

※HS30B Use Sensor 91

3.

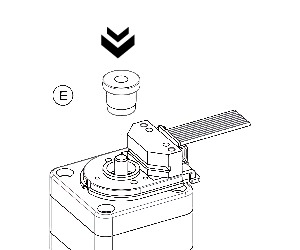

Place the centering tool onto the shaft.

4.

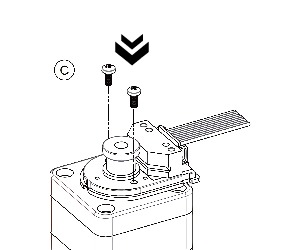

Tighten the mounting screws.

5.

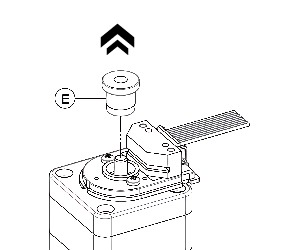

Remove the centering tool.

6.

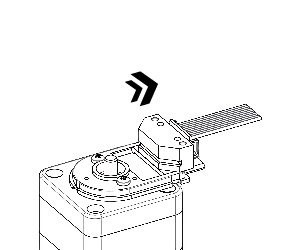

Pull out the slider.

7.

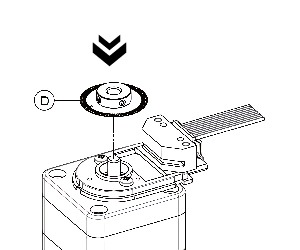

Slip the hubdisk assembly onto the shaf.

8.

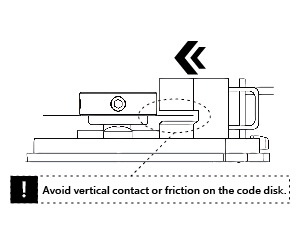

Push the slider back to verify the code disk position.
Install the disk with evenly spaced vertical clearance, slightly biased downward.

9.

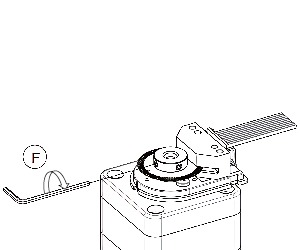

Tighten the set screws.

10.

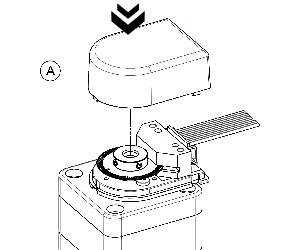

Close the cover.

11.

The assembly process is now completed.

Specification

Output Waveform

Pin-out Description




Cable: UL1430/ AWG26 Insulated Wire

Connector: DuPont 65039-032 with Both. 4825X-000

Cable: 10 conductor ribbon cable

Connector: 10 position IDC connector

Ordering Information

Mechanical Drawing /Setting Dimension


Assembly Guide

Parts List

A. Cover x1

B. Sensor+Base x1

C. Screws x2

D. Hubdisk x1

Installation Tool

E. Centering tool x1

F. Hex wrench x1



  • Sensor Introduction





Sensor 91



HS30B / HS302

HS30C / HS303



Sensor 97



HS30A / HS301

  • Assembly Instructions :

1.

Prepare the motor.

2.

Place the encoder 91 base with sensor.

※HS30B Use Sensor 91

3.

Place the centering tool onto the shaft.

4.

Tighten the mounting screws.

5.

Remove the centering tool.

6.

Pull out the slider.

7.

Slip the hubdisk assembly onto the shaf.

8.

Push the slider back to verify the code disk position.
Install the disk with evenly spaced vertical clearance, slightly biased downward.

9.

Tighten the set screws.

10.

Close the cover.

11.

The assembly process is now completed.
