HS303

|PRODUCTS|

HS303

Model Encoder_Modules_Incremental
1250~5000 PPR │ ABZ signal

Product Description

● Application
‧ Automated equipment

Share:

Resolution :

1250200020482500400040965000Customized

Hollow :

4mm5mm6mm6.35mm8mmCustomized

Output circuit :

V (Voltage output)L (Line driver)

Supply voltage :

4.5~5.5V

Installation tool :

Comes with the goods according to ratio

Quantity:

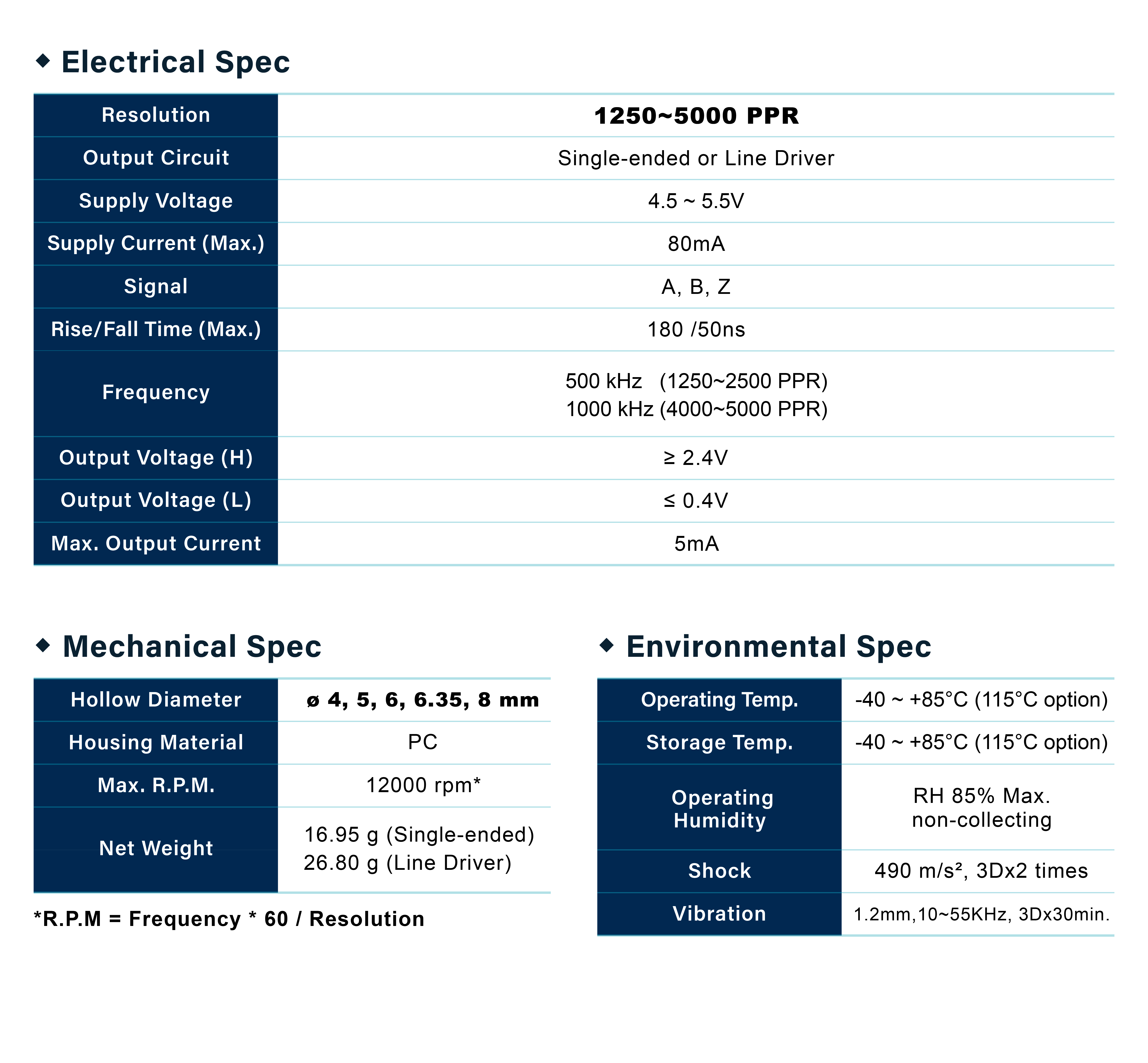

Specification

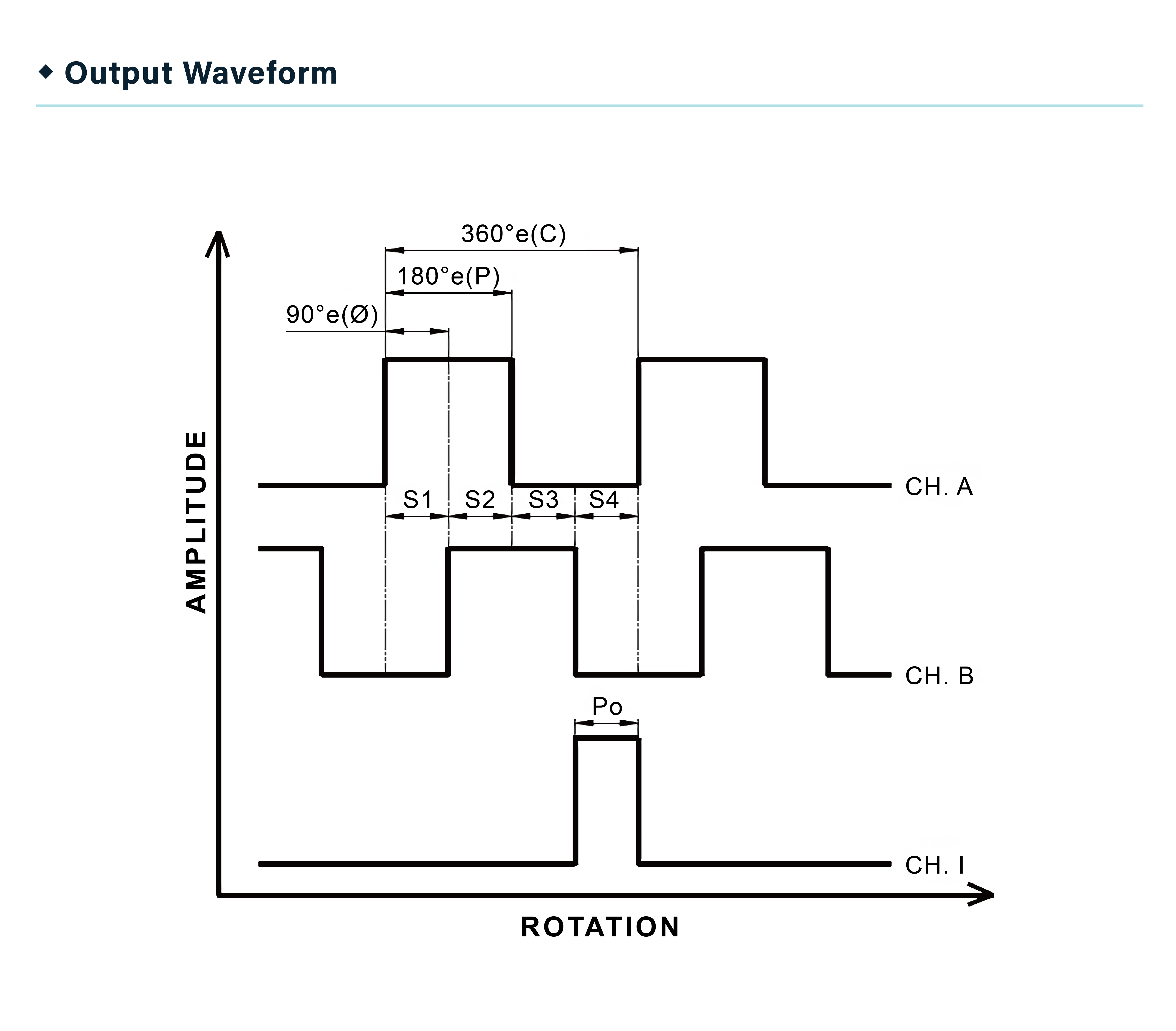

Output Waveform

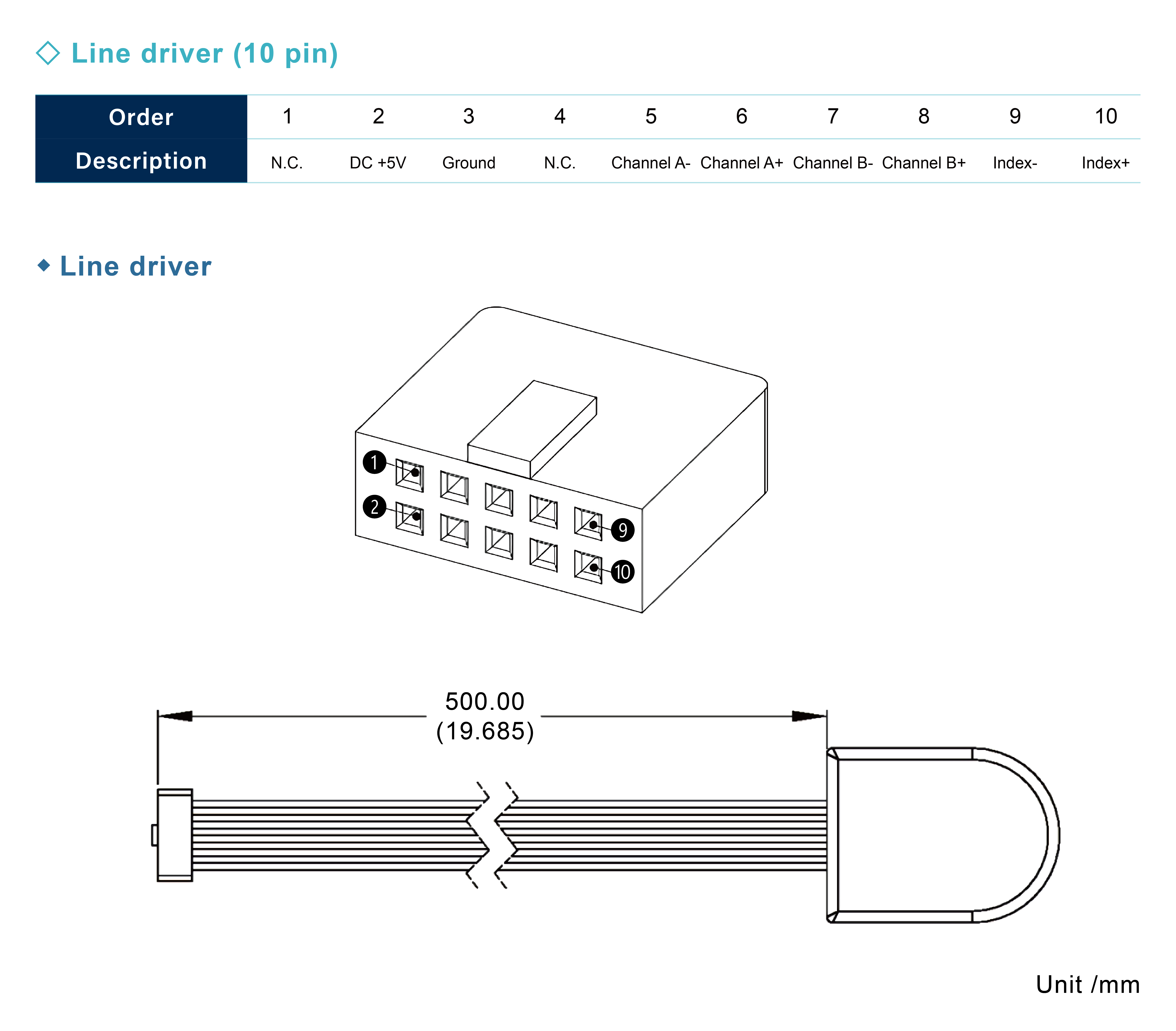

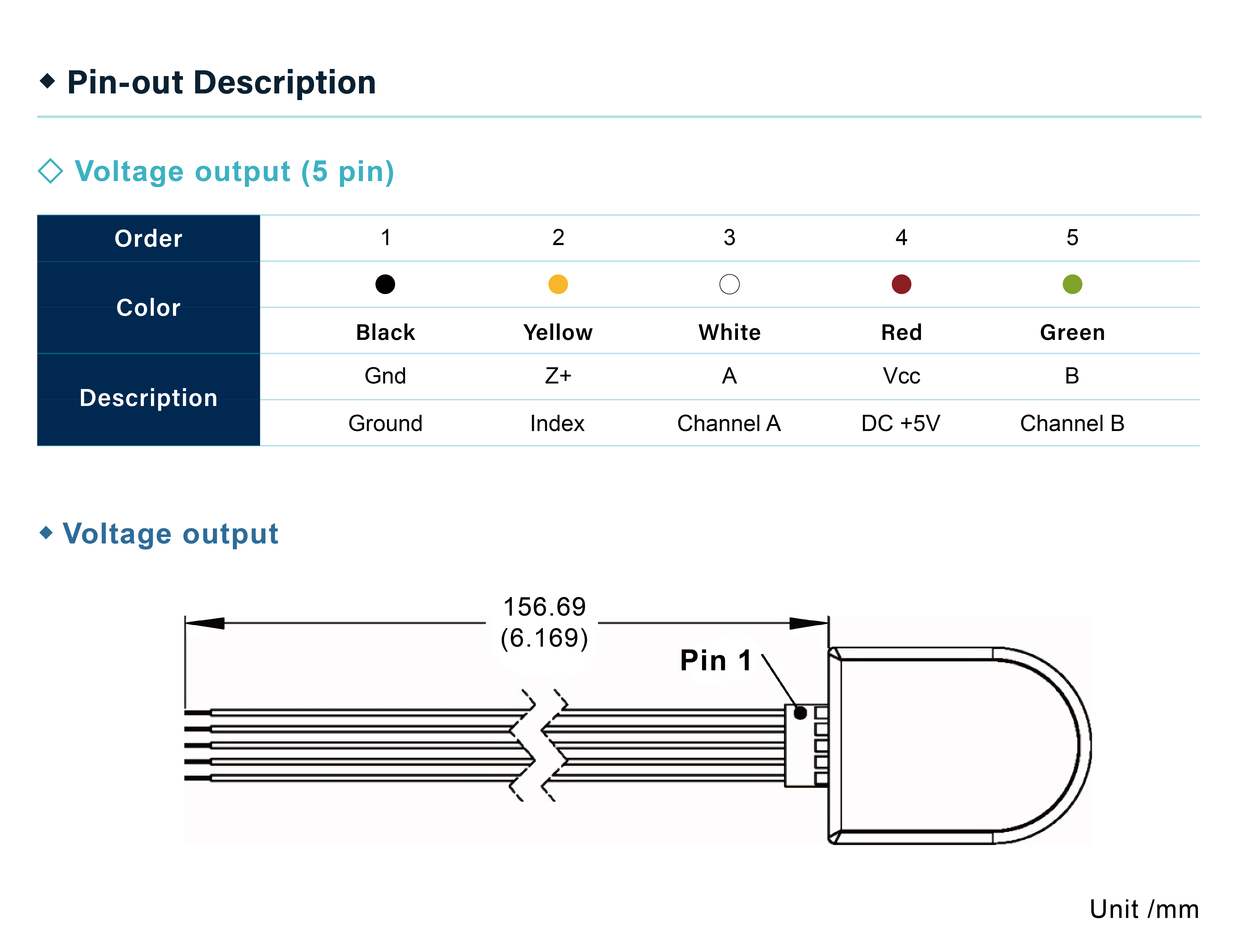

Pin-out Description

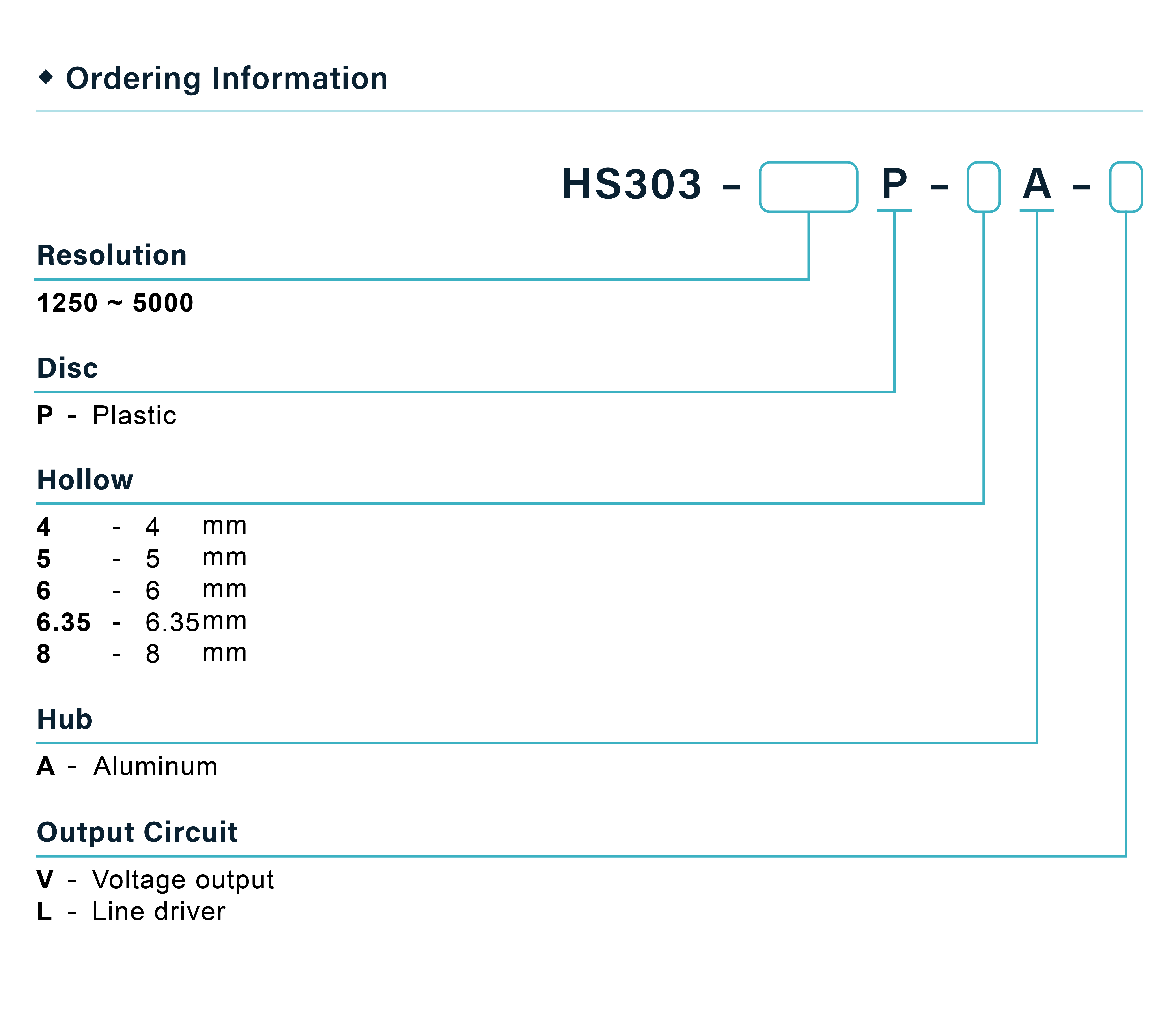

Ordering Information

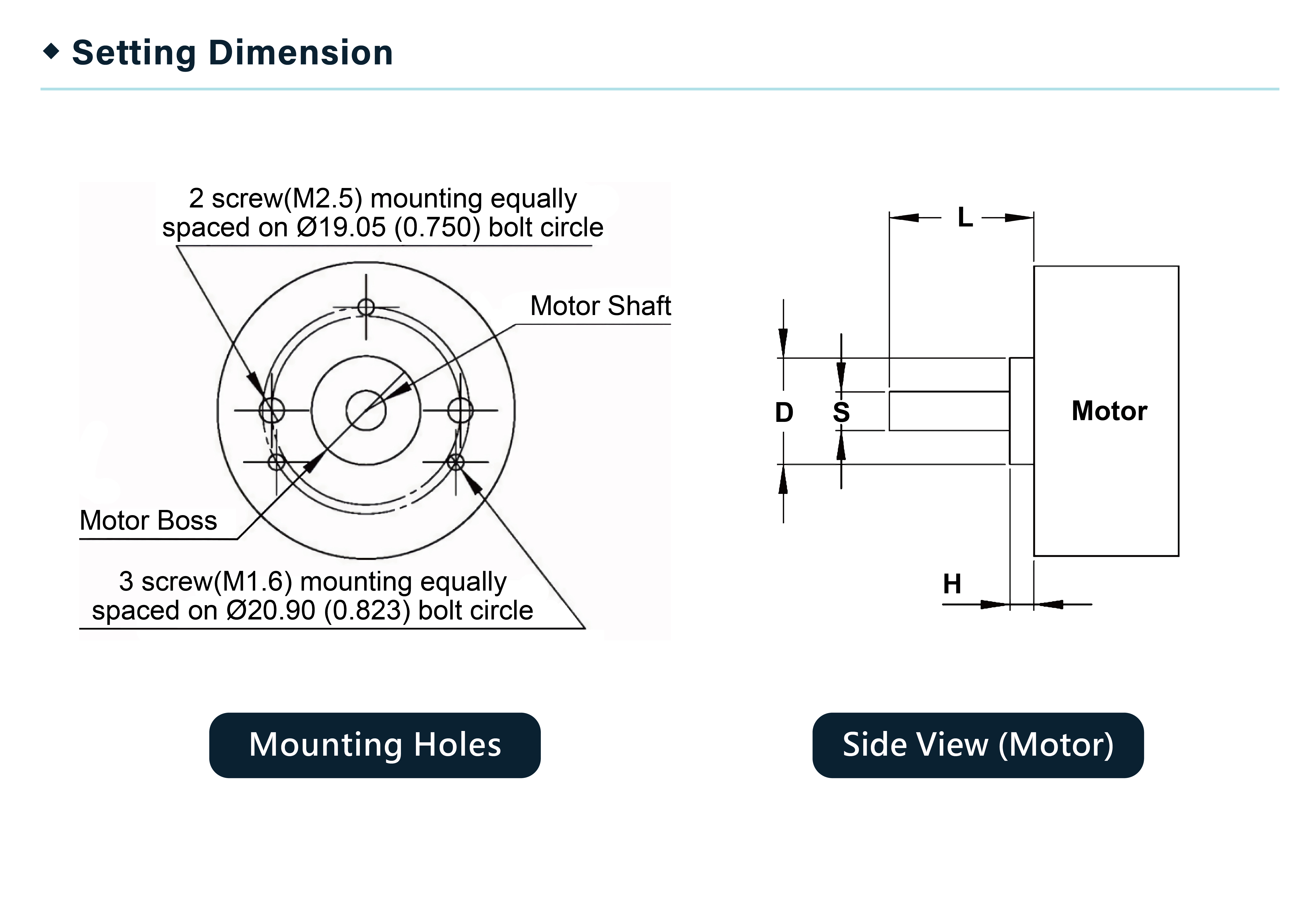

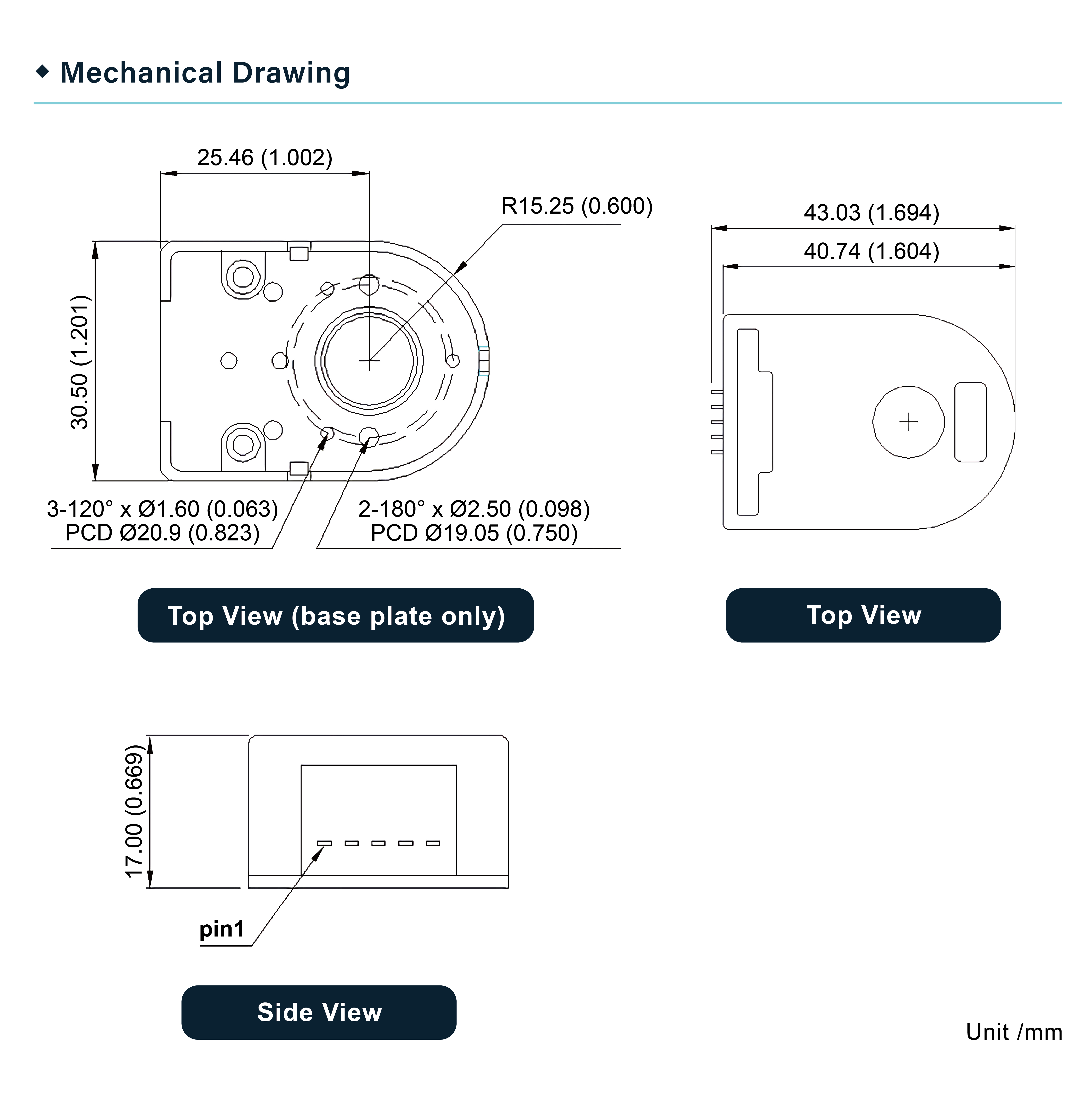

Mechanical Drawing /Setting Dimension
Assembly Guide
Downloads

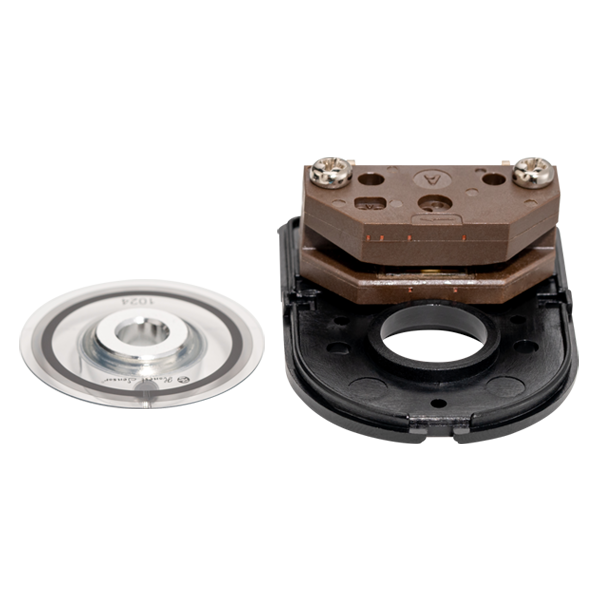

Parts List

A. Cover x1
B. Base x1
C. Sensor+wire x1
D. Pan Screws - Short x2
E. Pan Screws - Long x2
F. Hubdisk x2

Installation Tool

G. Centering tool x1

H. Hex wrench x1





  • Sensor Introduction

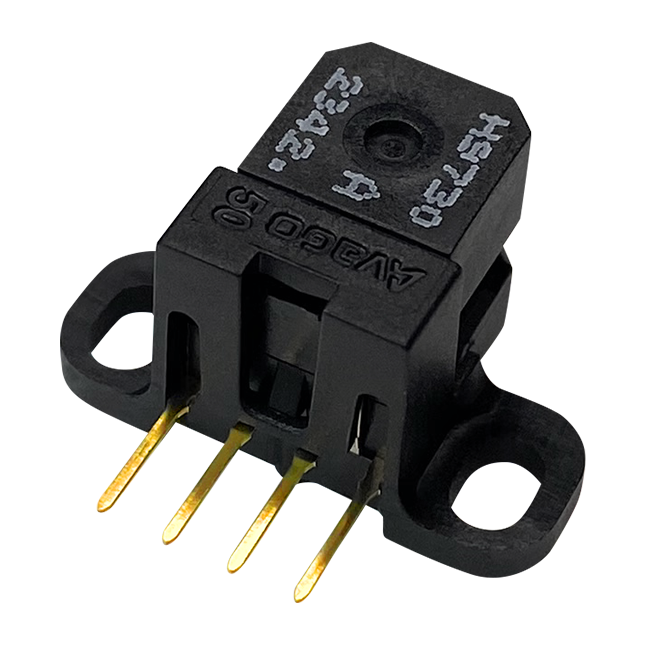

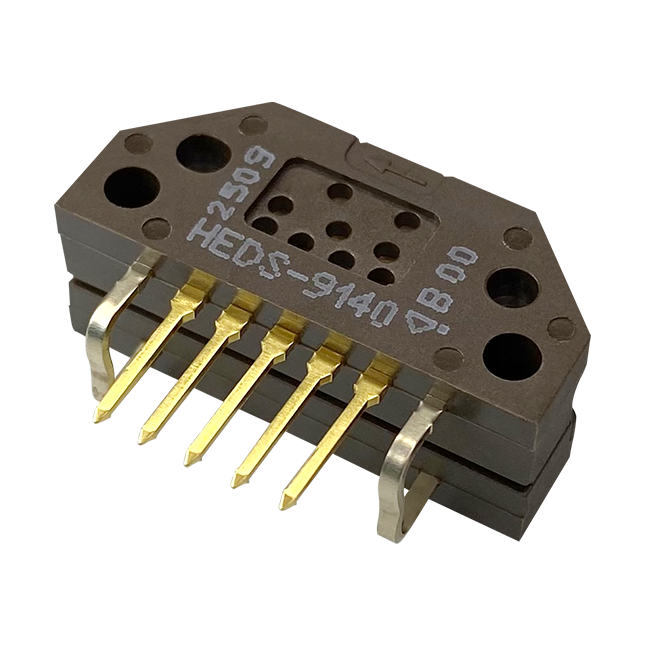

Sensor 91



HS30B / HS302

HS30C / HS303

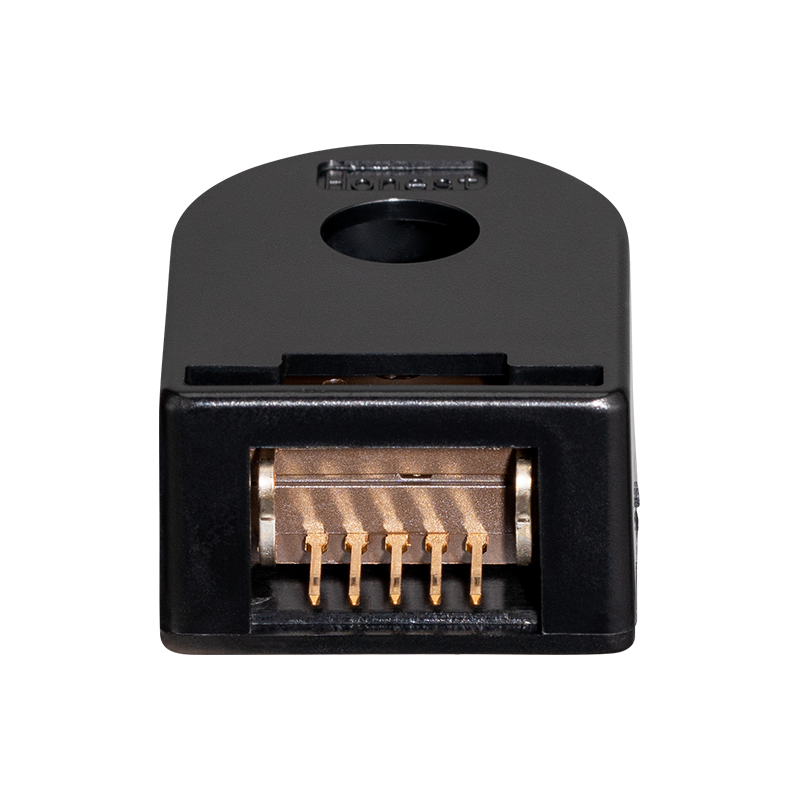

Sensor 97



HS30A / HS301

  • Assembly Instructions :

1.

Prepare the motor.

2.

Place the Ⓑencoder base.

3.

Place the Ⓖcentering tool onto the shaft.

4.

Tighten the mounting Ⓓscrews - short.

5.

Remove the Ⓖcentering tool.

6.

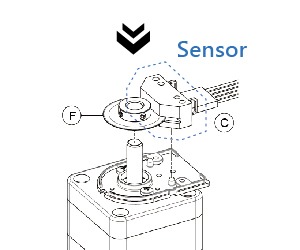

Slip the hubdisk with sensor assembly onto the shaft and base.

※HS303 Use Sensor 91

7.

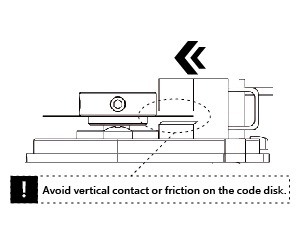

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

8.

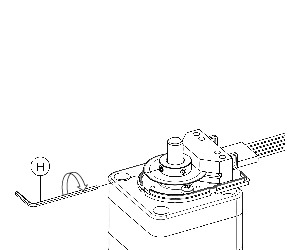

Tighten the set screws.

9.

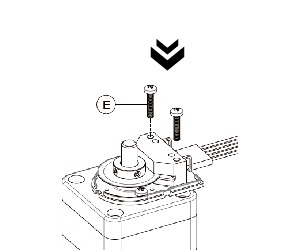

Tighten the mounting Ⓔscrews - long.

10.

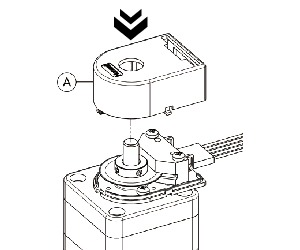

Close the Ⓐcover.

11.

The assembly process is now completed.

Specification



Output Waveform

Pin-out Description


Ordering Information

Mechanical Drawing /Setting Dimension


Assembly Guide

Parts List

A. Cover x1
B. Base x1
C. Sensor+wire x1
D. Pan Screws - Short x2
E. Pan Screws - Long x2
F. Hubdisk x2

Installation Tool

G. Centering tool x1

H. Hex wrench x1





  • Sensor Introduction





Sensor 91



HS30B / HS302

HS30C / HS303



Sensor 97



HS30A / HS301

  • Assembly Instructions :

1.

Prepare the motor.

2.

Place the Ⓑencoder base.

3.

Place the Ⓖcentering tool onto the shaft.

4.

Tighten the mounting Ⓓscrews - short.

5.

Remove the Ⓖcentering tool.

6.

Slip the hubdisk with sensor assembly onto the shaft and base.

※HS303 Use Sensor 91

7.

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

8.

Tighten the set screws.

9.

Tighten the mounting Ⓔscrews - long.

10.

Close the Ⓐcover.

11.

The assembly process is now completed.
