HS302

|PRODUCTS|

HS302

Model Encoder Modules_Incremental
100~1024 PPR │ ABZ signal

Product Description

● Application
‧ Automated equipment

Share:

Resolution :

10020025636040050051210001024Customized

Hollow :

4mm5mm6mm6.35mm8mmCustomized

Output circuit :

V (Voltage output)L (Line driver)

Supply voltage :

4.5~5.5V

Installation tool :

Comes with the goods according to ratio

Quantity:

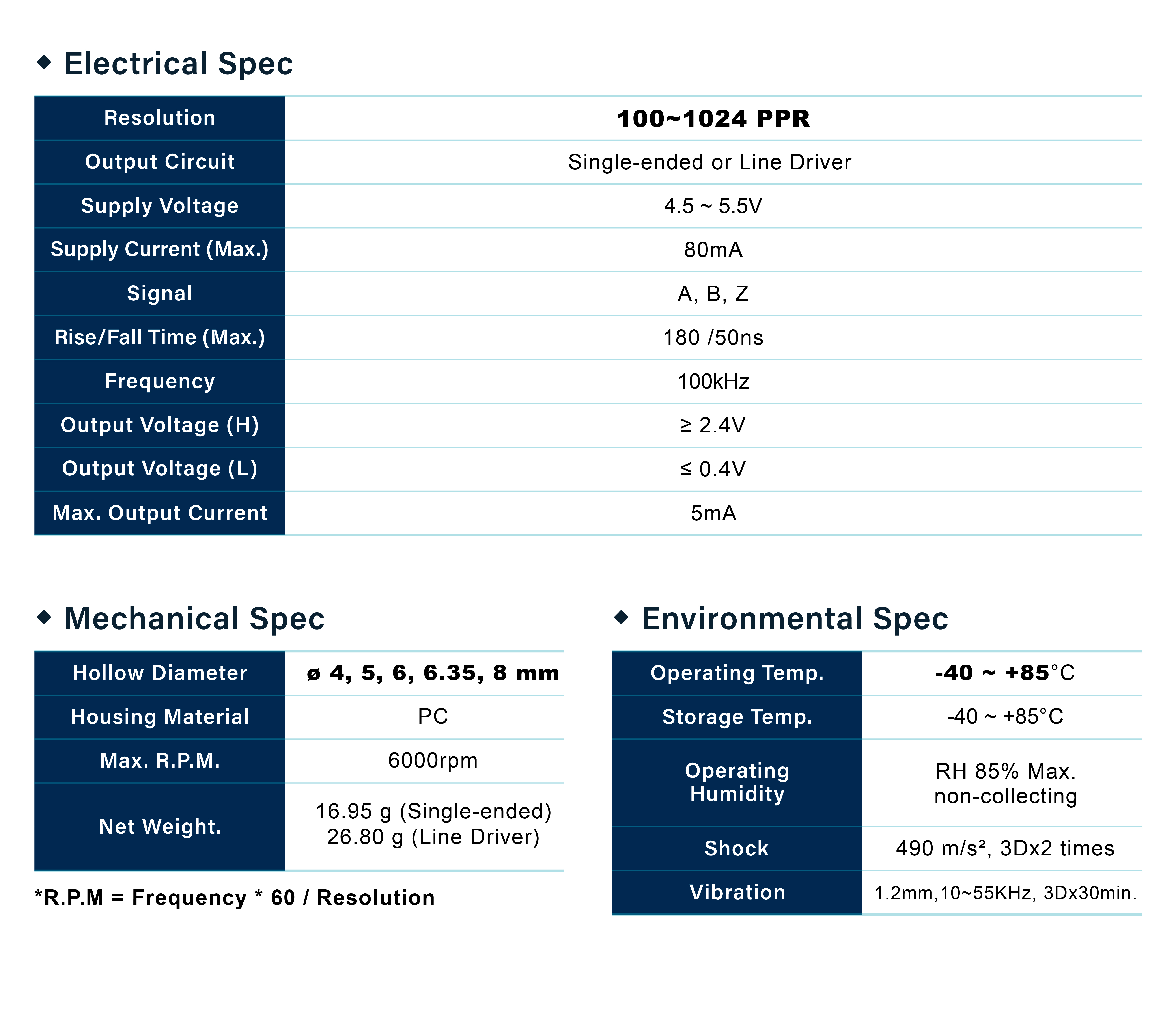

Specification

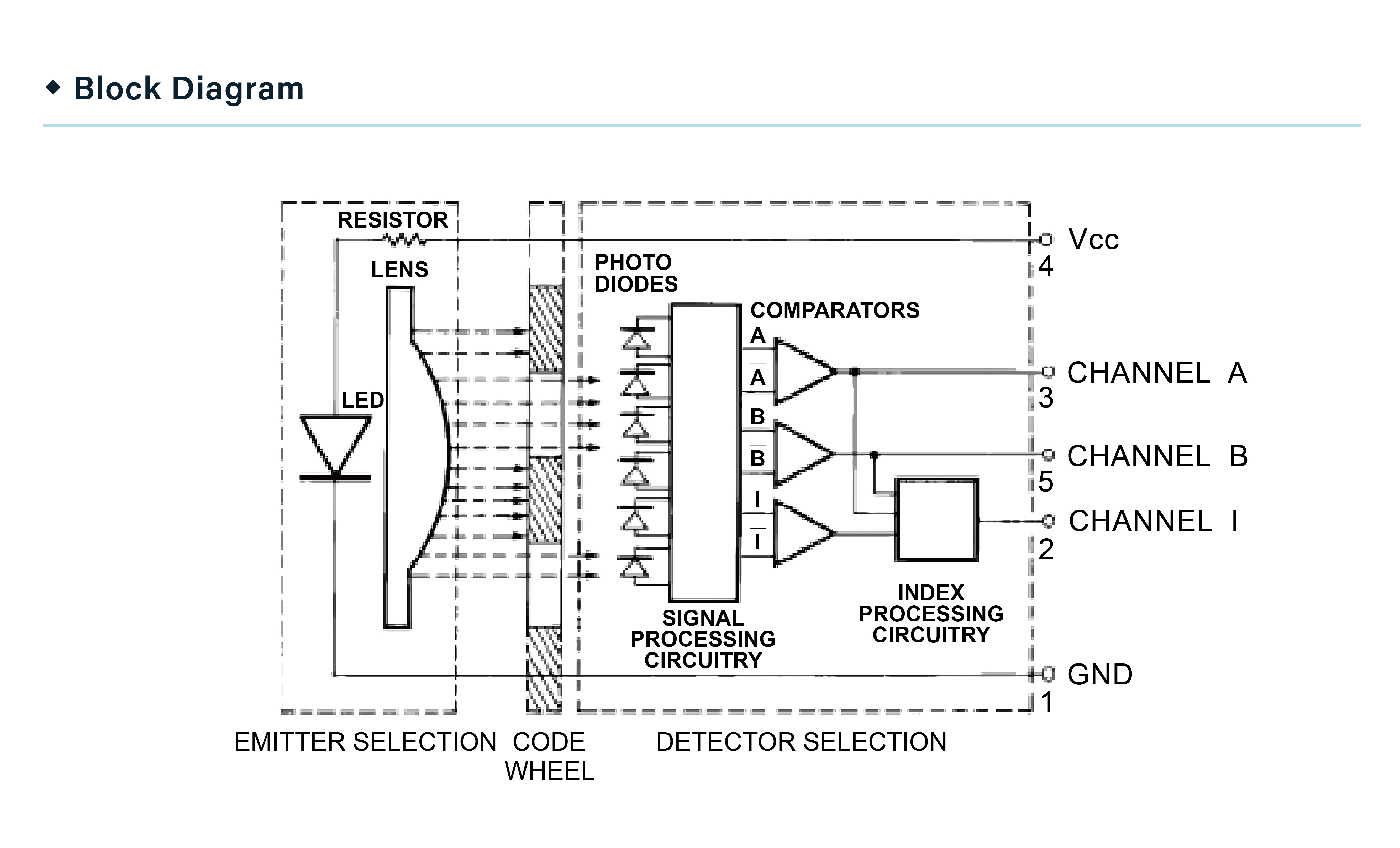

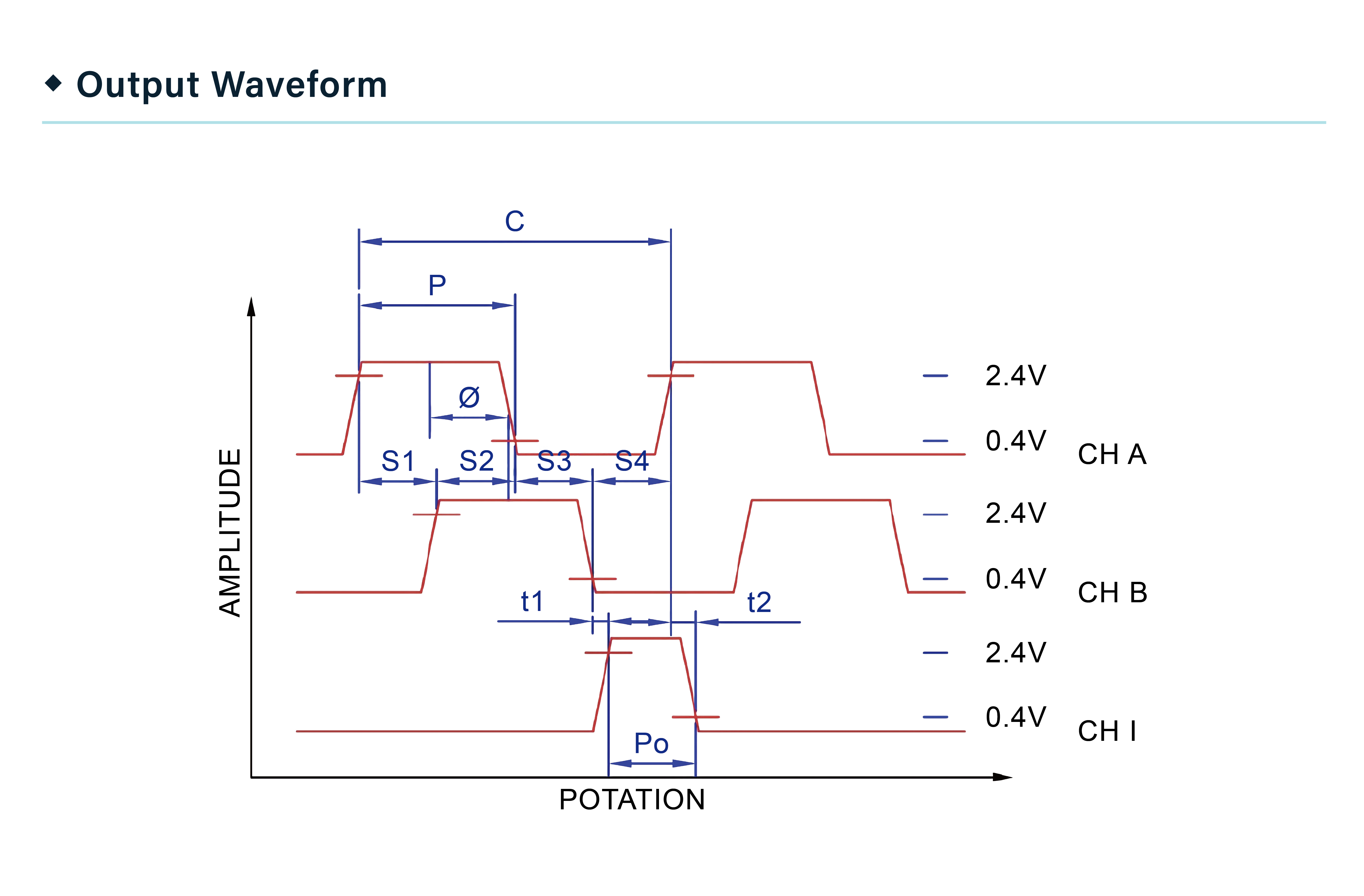

Output Waveform / Block Diagram

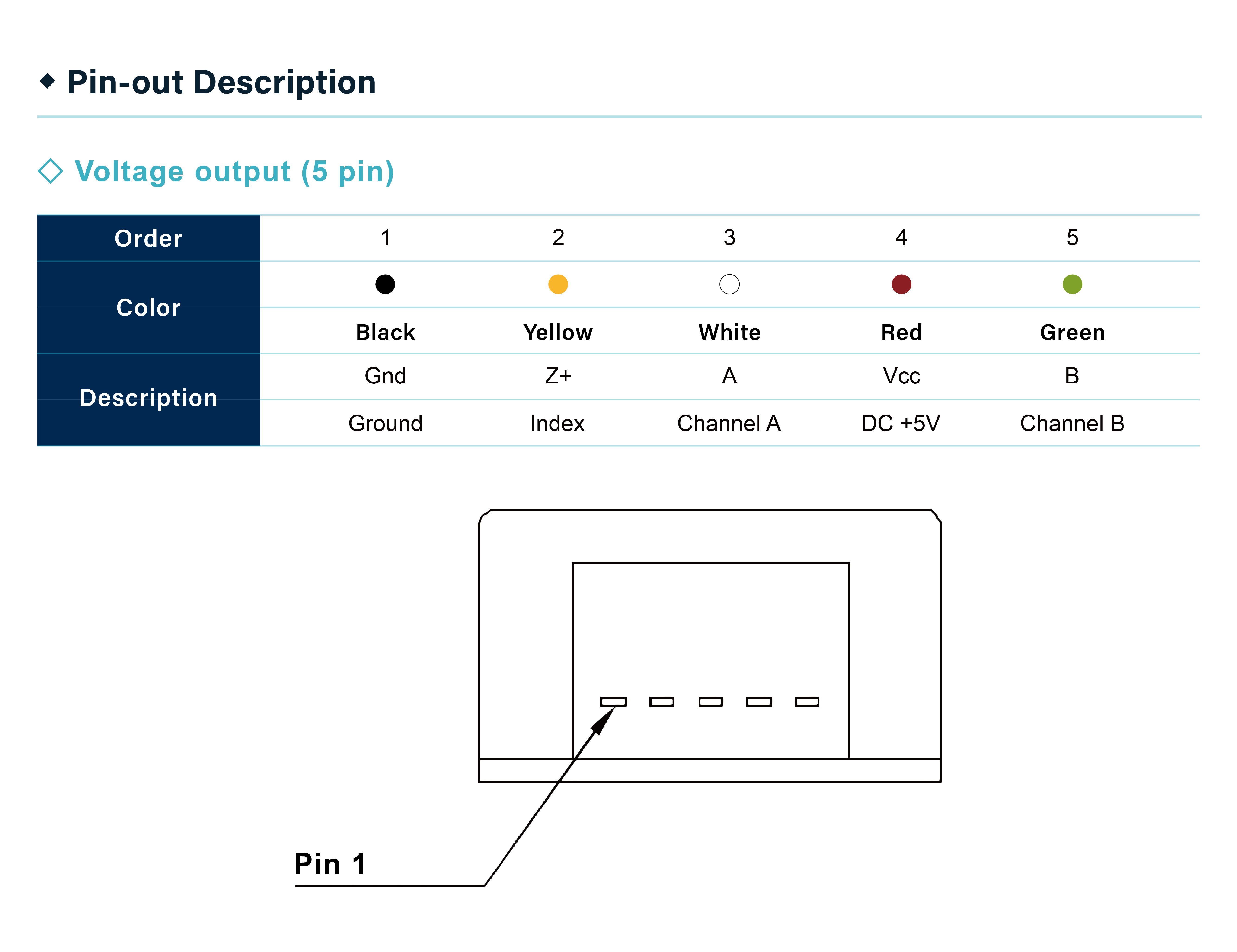

Pin-out Description

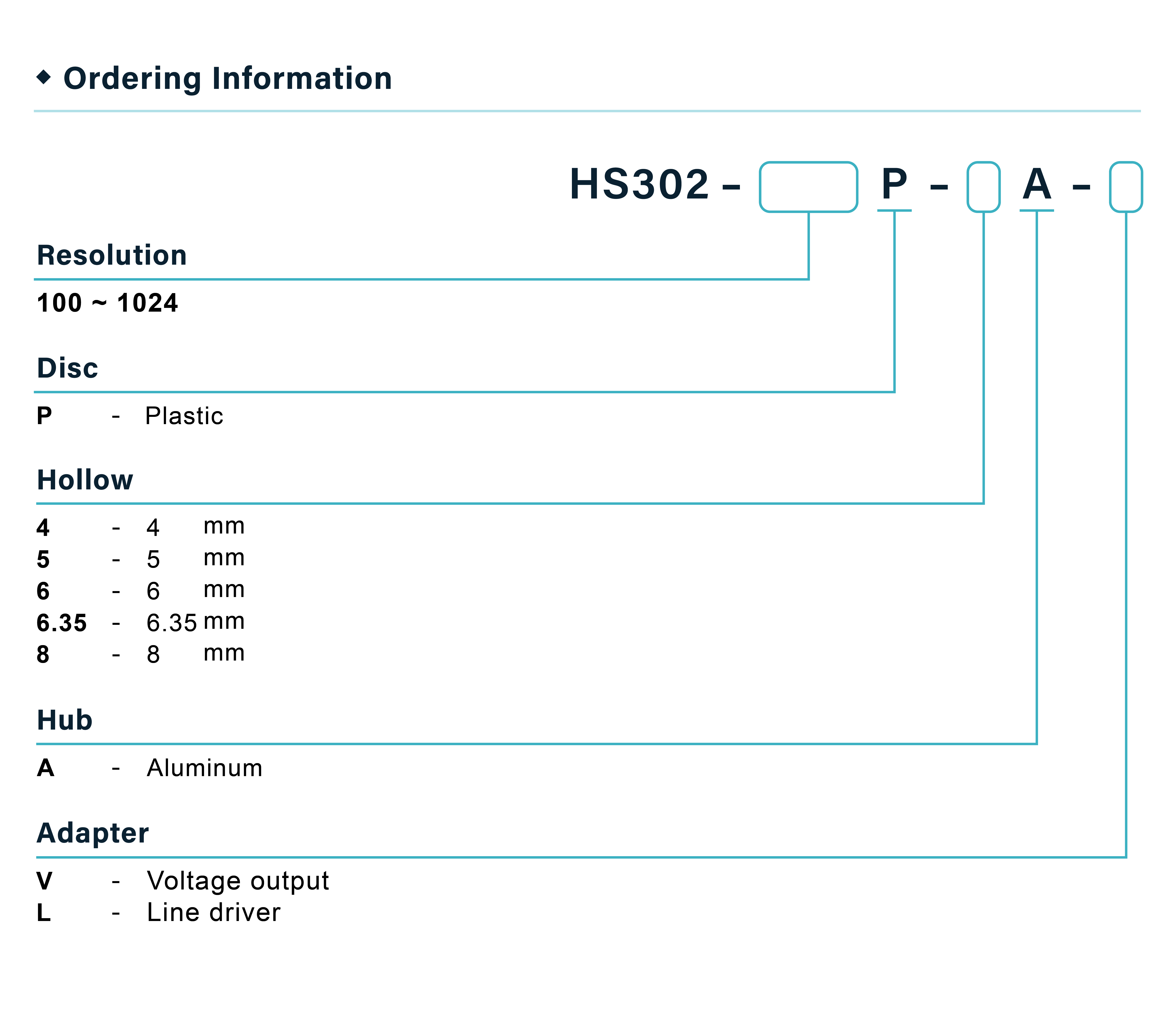

Ordering Information

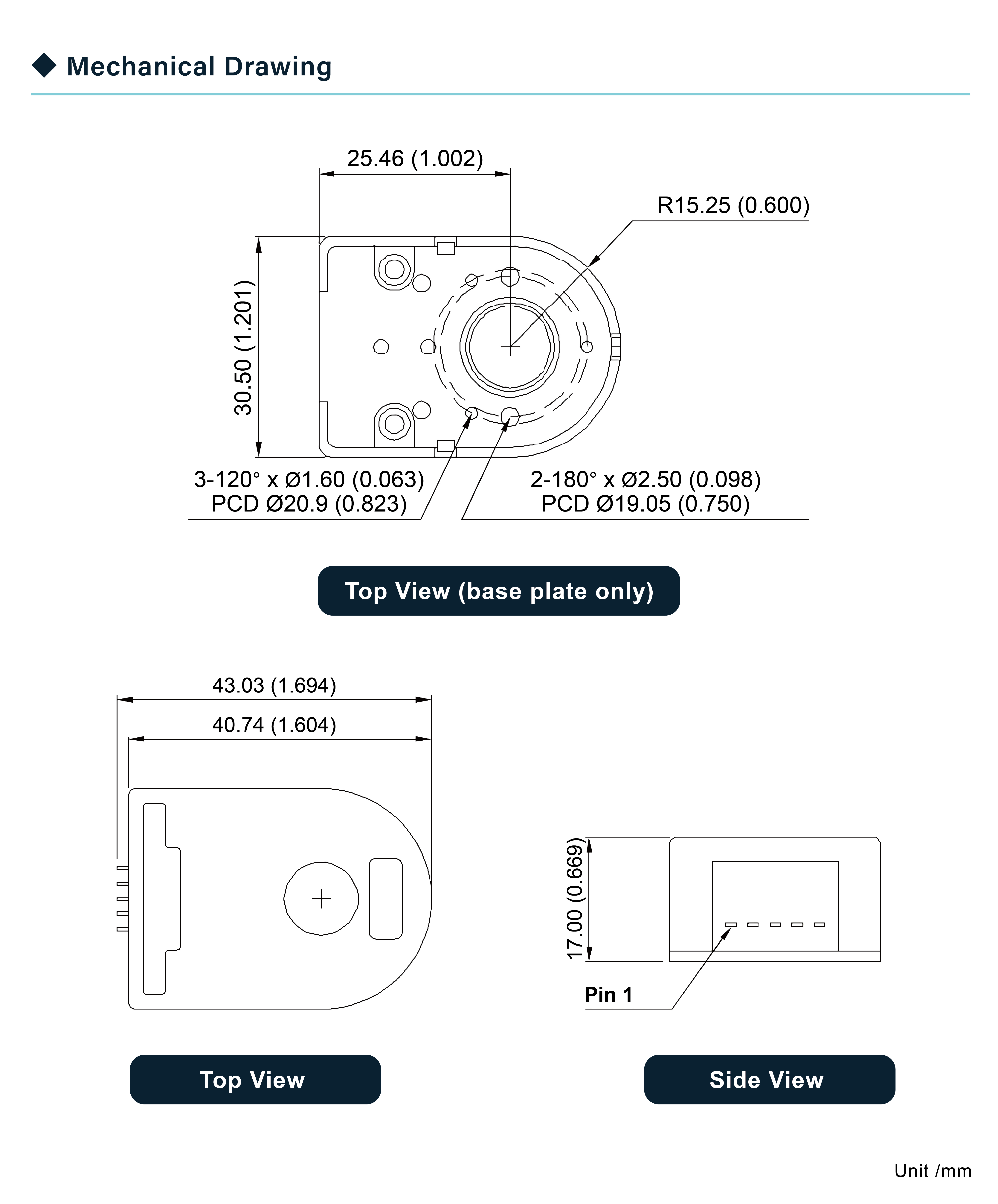

Mechanical Drawing
Assembly Guide
Downloads






Parts List

A. Cover x1
B. Base x1
C. Sensor+wire x1
D. Screws - Short x2
E. Screws - Long x2
F. Hubdisk x2

Installation Tool

G. Centering tool x1

H. Hex wrench x1





  • Sensor Introduction





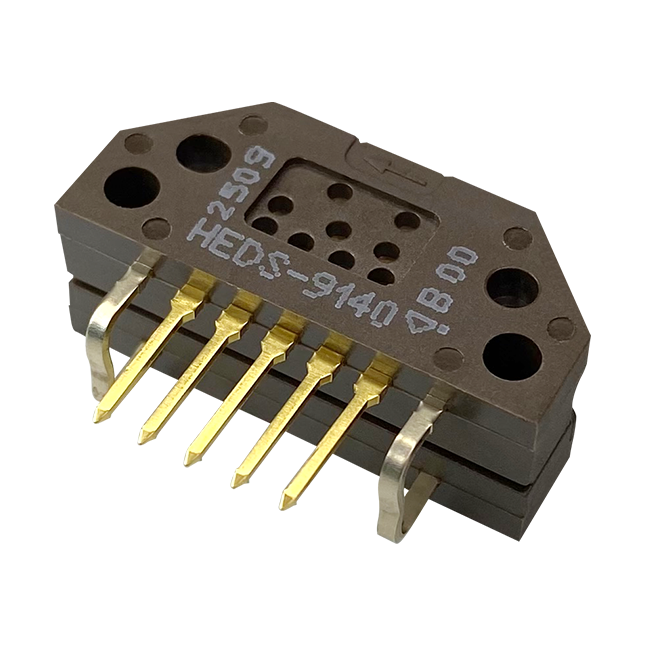

Sensor 91



HS30B / HS302

HS30C / HS303



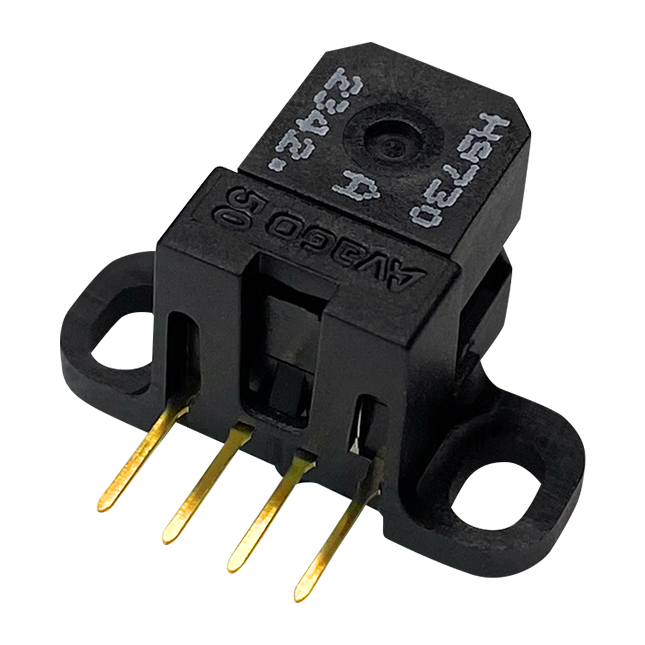

Sensor 97



HS30A / HS301

  • Assembly Instructions :

1.

Prepare the motor.

2.

Place the Ⓑencoder base.

3.

Place the Ⓖcentering tool onto the shaft.

4.

Tighten the mounting Ⓓscrews - short.

5.

Remove the Ⓖcentering tool.

6.

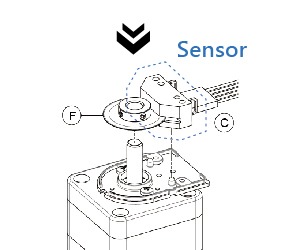

Slip the hubdisk with sensor assembly onto the shaft and base.

※HS302 Use Sensor 91

7.

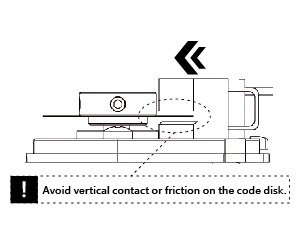

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

8.

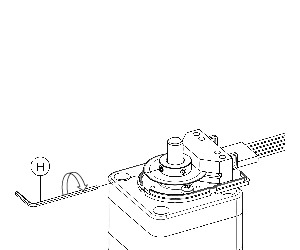

Tighten the set screws.

9.

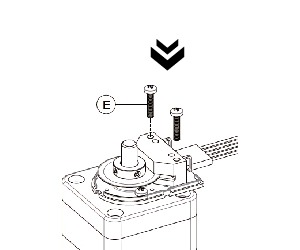

Tighten the mounting Ⓔscrews - long.



10.

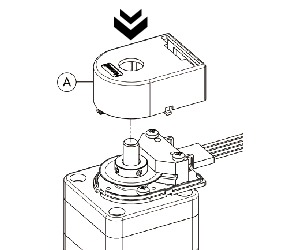

Close the Ⓐcover.

11.

The assembly process is now completed.

Specification

Output Waveform / Block Diagram


Pin-out Description

Ordering Information

Mechanical Drawing

Assembly Guide

Parts List

A. Cover x1
B. Base x1
C. Sensor+wire x1
D. Screws - Short x2
E. Screws - Long x2
F. Hubdisk x2

Installation Tool

G. Centering tool x1

H. Hex wrench x1





  • Sensor Introduction





Sensor 91



HS30B / HS302

HS30C / HS303



Sensor 97



HS30A / HS301

  • Assembly Instructions :

1.

Prepare the motor.

2.

Place the Ⓑencoder base.

3.

Place the Ⓖcentering tool onto the shaft.

4.

Tighten the mounting Ⓓscrews - short.

5.

Remove the Ⓖcentering tool.

6.

Slip the hubdisk with sensor assembly onto the shaft and base.

※HS302 Use Sensor 91

7.

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

8.

Tighten the set screws.

9.

Tighten the mounting Ⓔscrews - long.



10.

Close the Ⓐcover.

11.

The assembly process is now completed.
