HS301

|PRODUCTS|

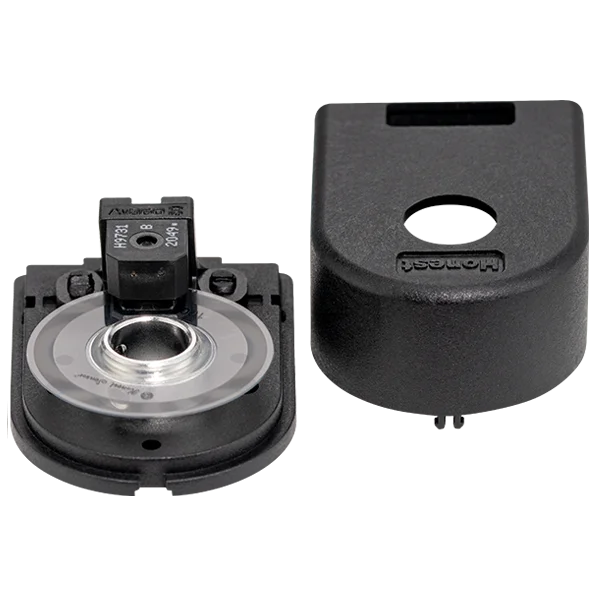

HS301

Model Encoder Modules_Incremental
96~1000 PPR │ AB signal

Product Description

● Application
‧ Automated equipment

● Feature
‧ TTL Compatible
‧ Operating temp:-40℃ ~ 85℃
‧ Efficient Mounting Mechanism
‧ Compact size
‧ Excellent Value
‧ Single 5V DC supply

Share:

Resolution :

961001922002563003604005005121000Customized

Disc :

P (Plastic)

Hollow :

3mm4mm5mm6mm6.35mm8mmCustomized

Output circuit :

TTL (Single-ended)

Supply voltage :

4.5~5.5 V

Cable length :

VO-205mm (Welded)

Installation tool :

Comes with the goods according to ratio

Quantity:

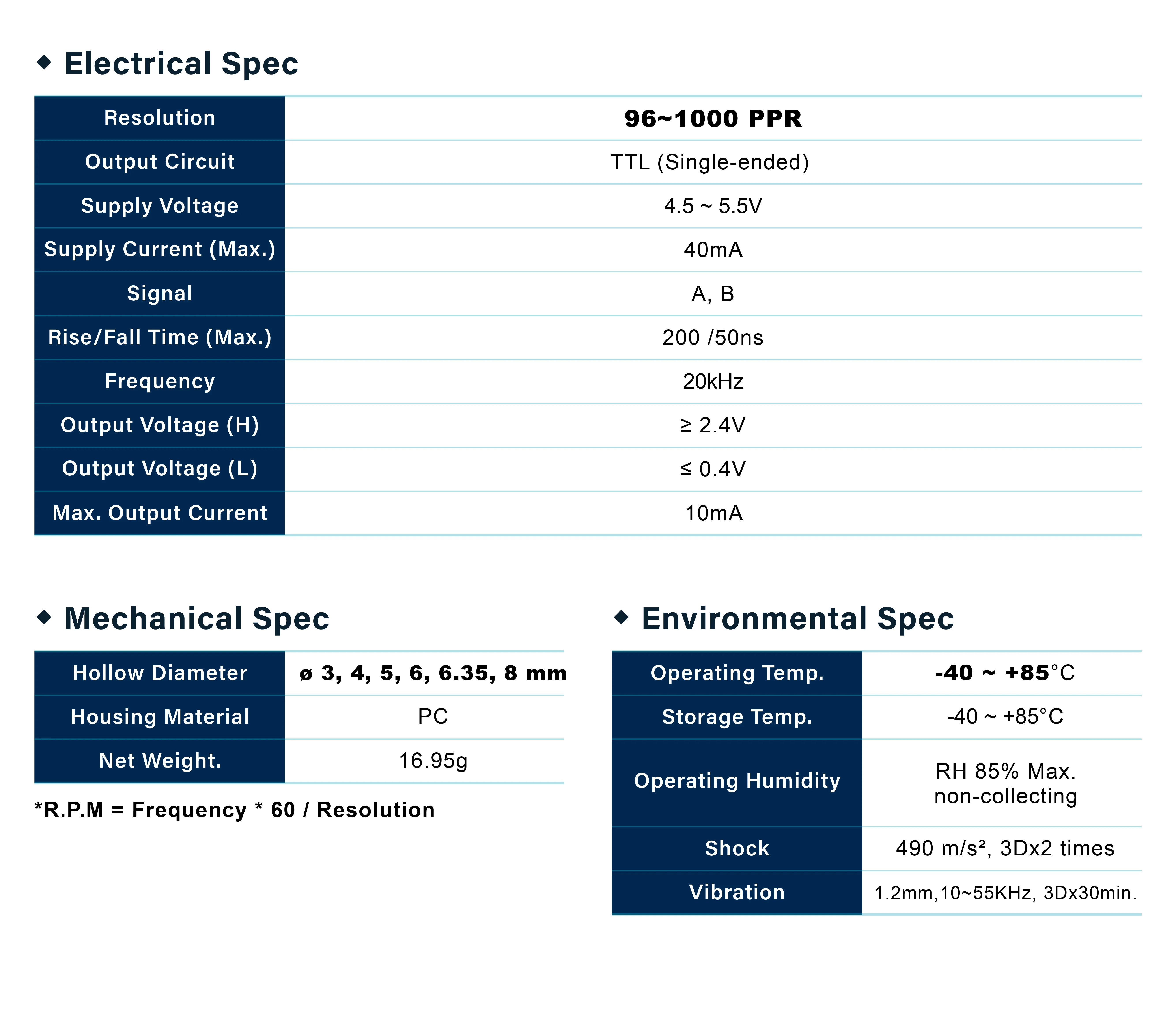

Specification

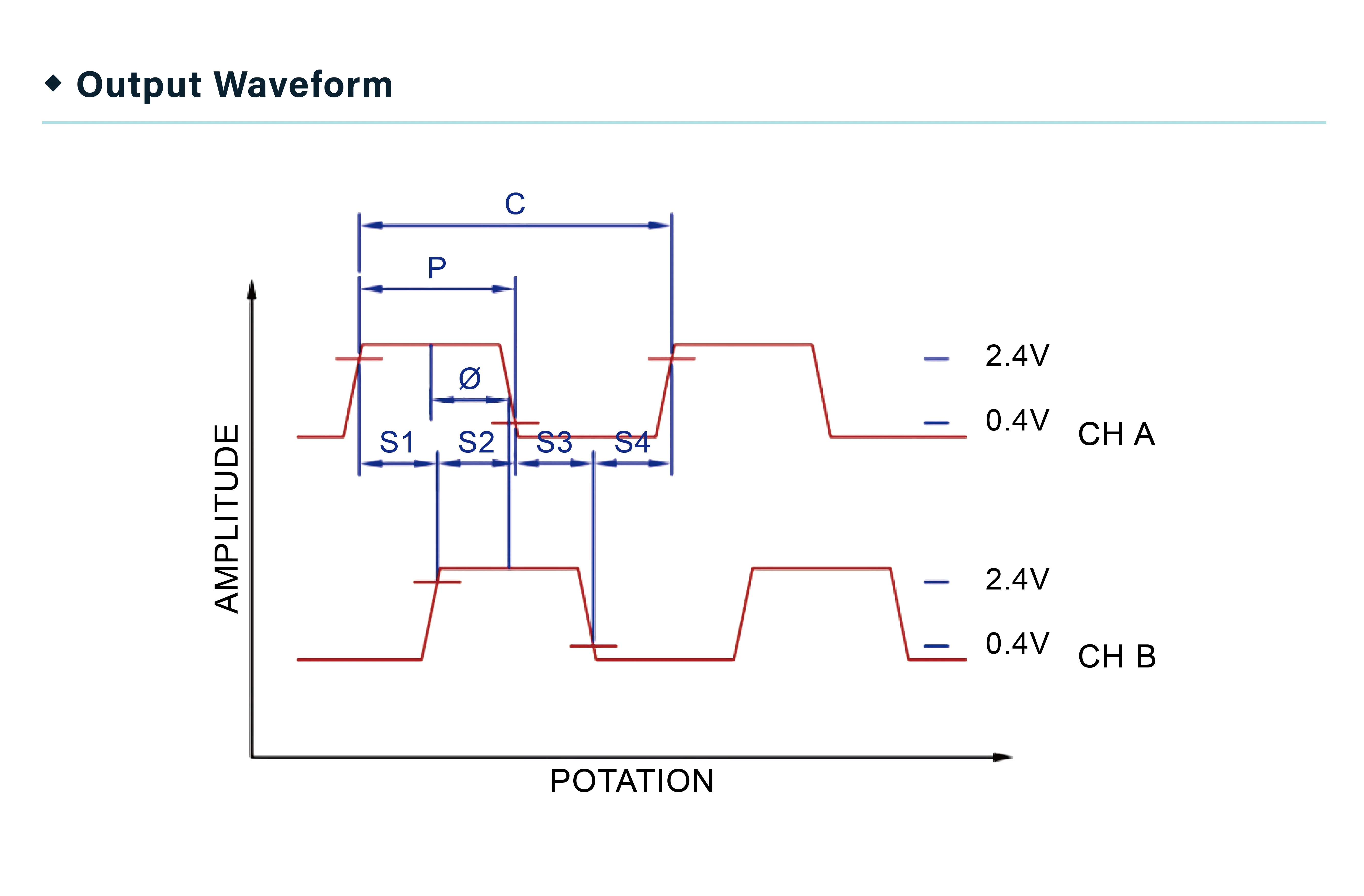

Output Waveform

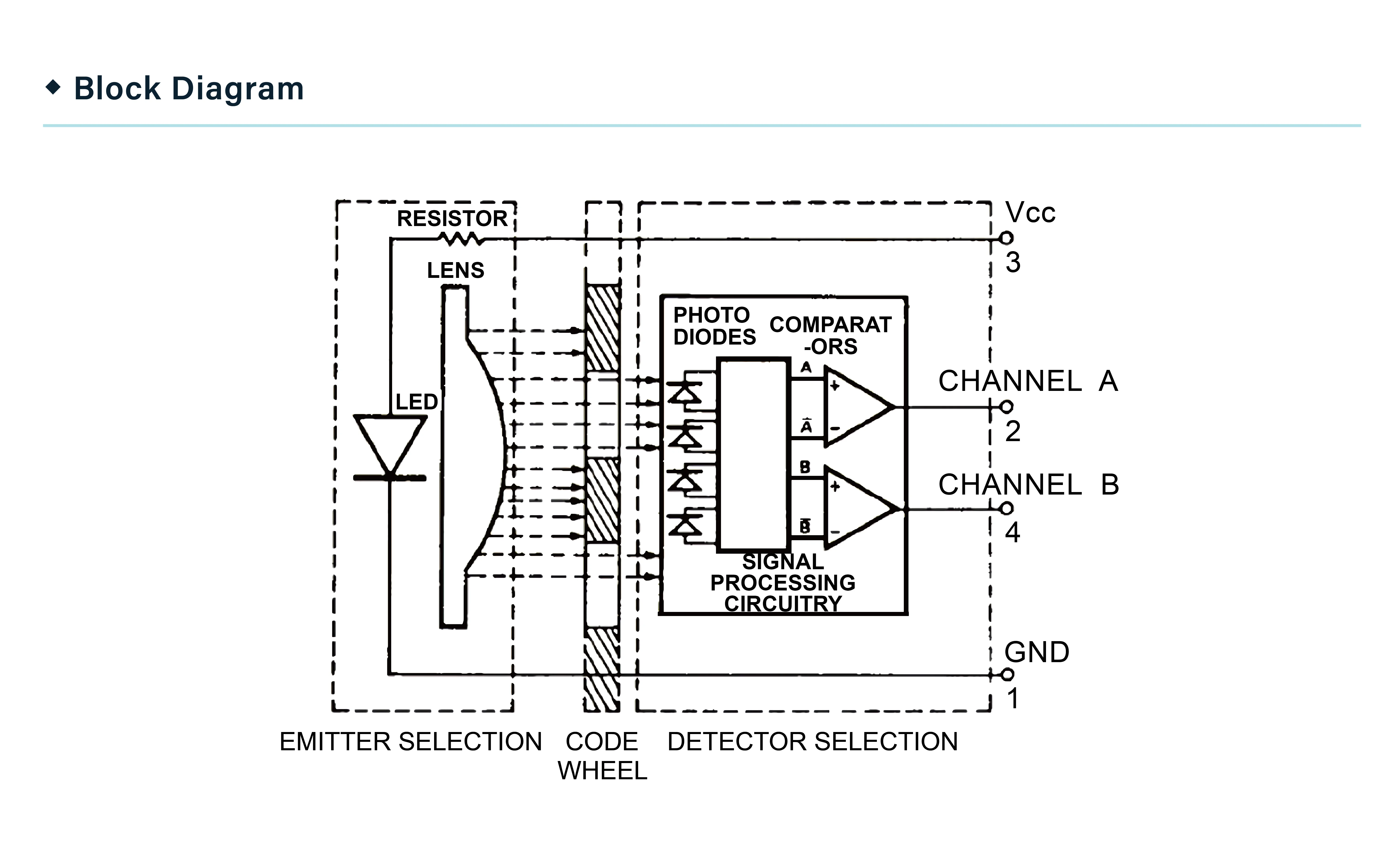

Block Diagram

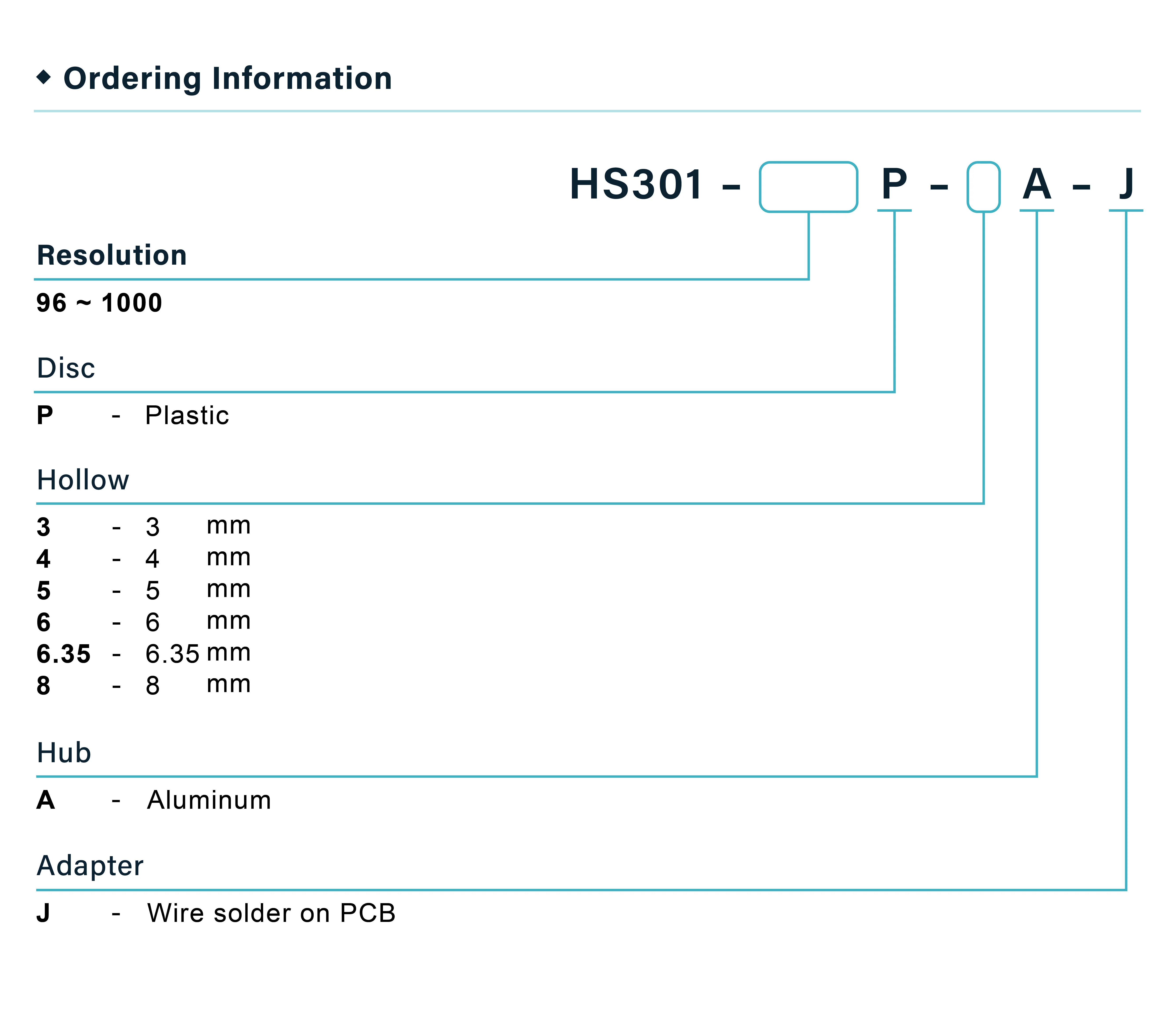

Ordering Information

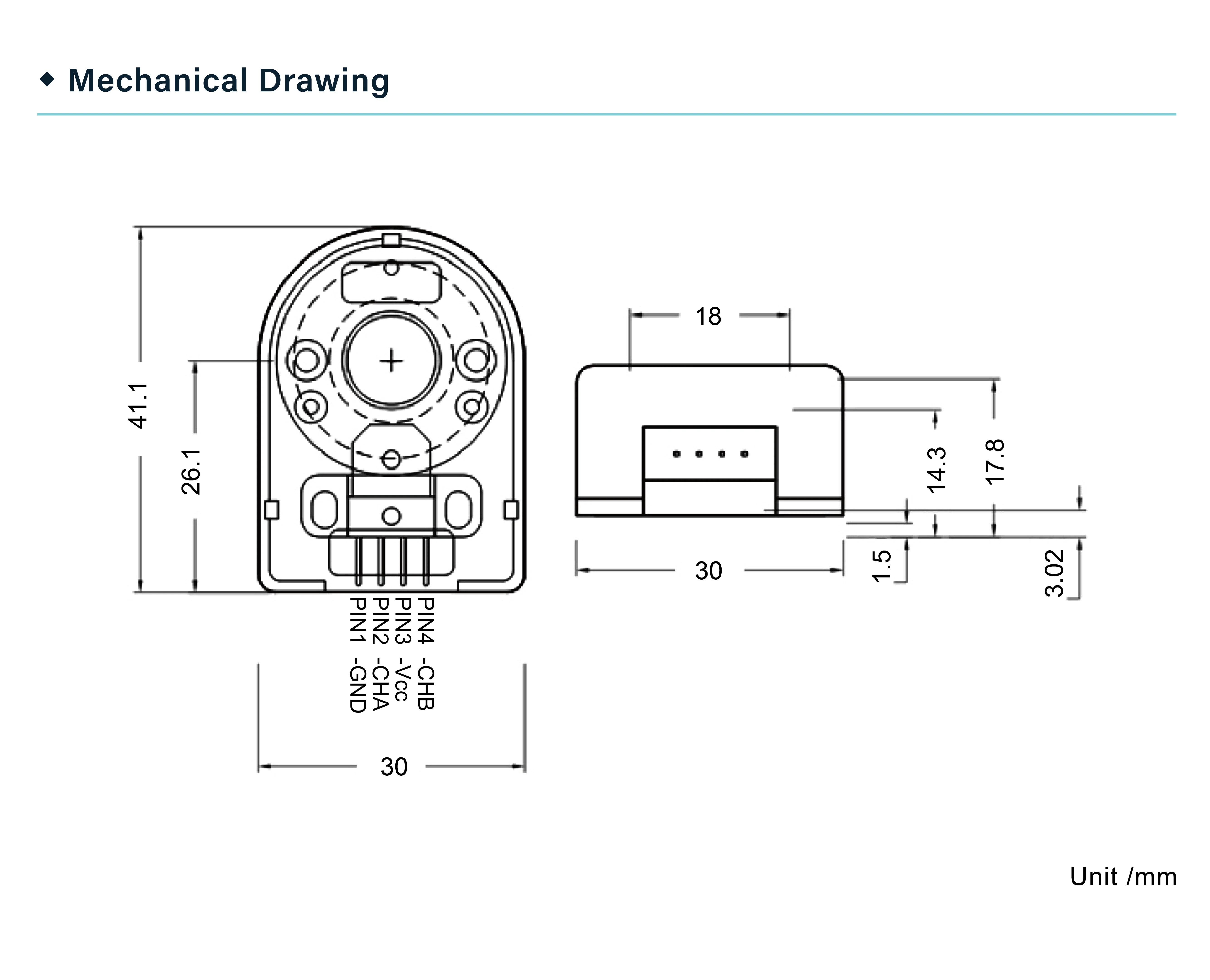

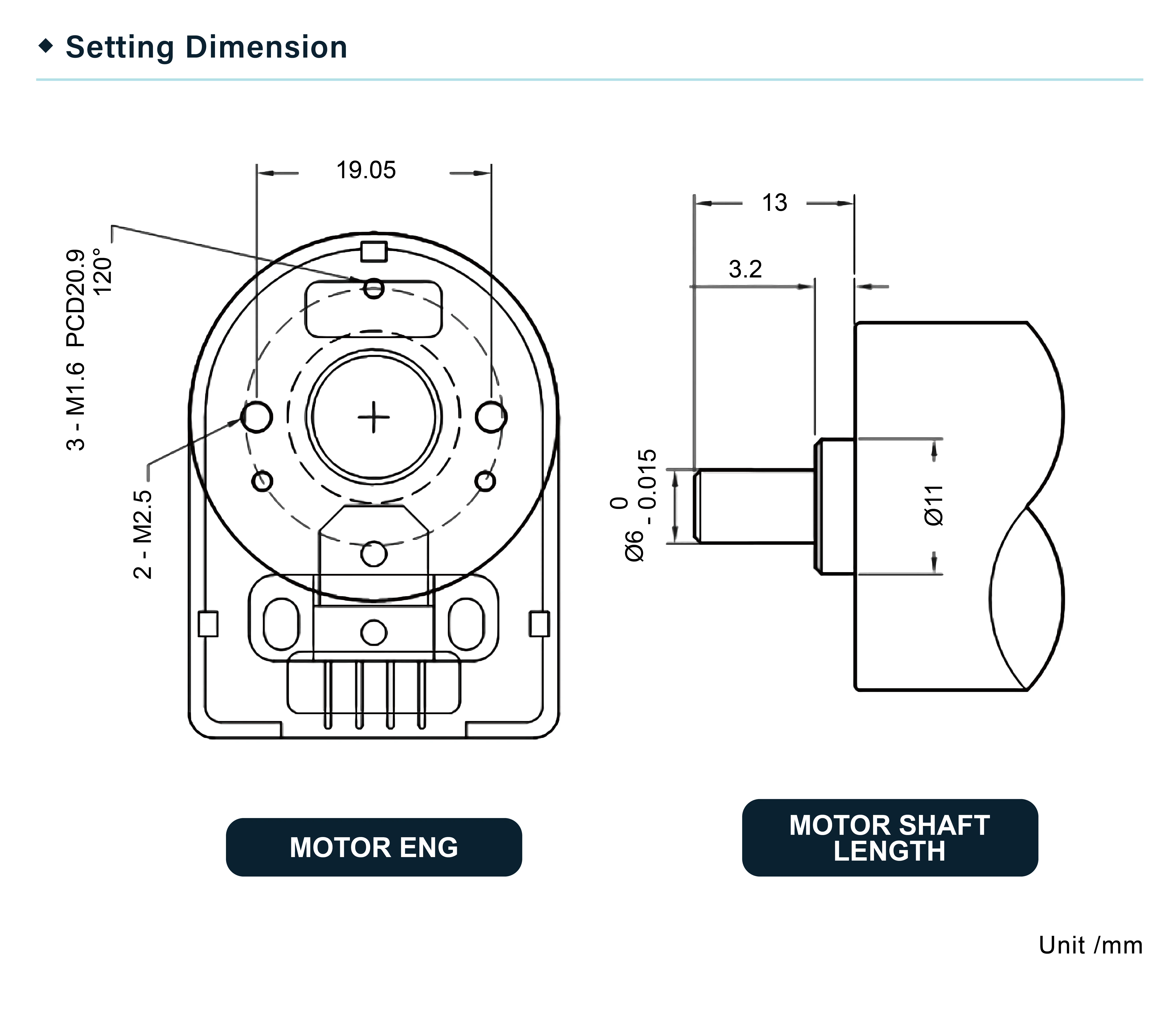

Mechanical Drawing /Setting Dimension
Assembly Guide
Downloads






Parts List

A. Cover x1

B. Base x1

C. Sensor 91+wire x1

D. Screws x2

E. Hubdisk x1

Installation Tool

F. Centering tool x1

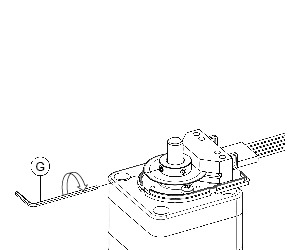

G. Hex wrench x1







  • Sensor Introduction

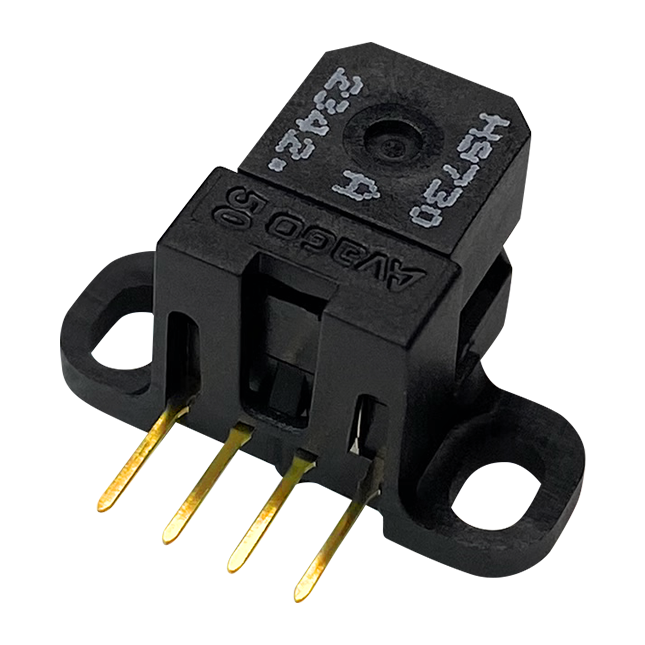

Sensor 97



HS30A / HS301

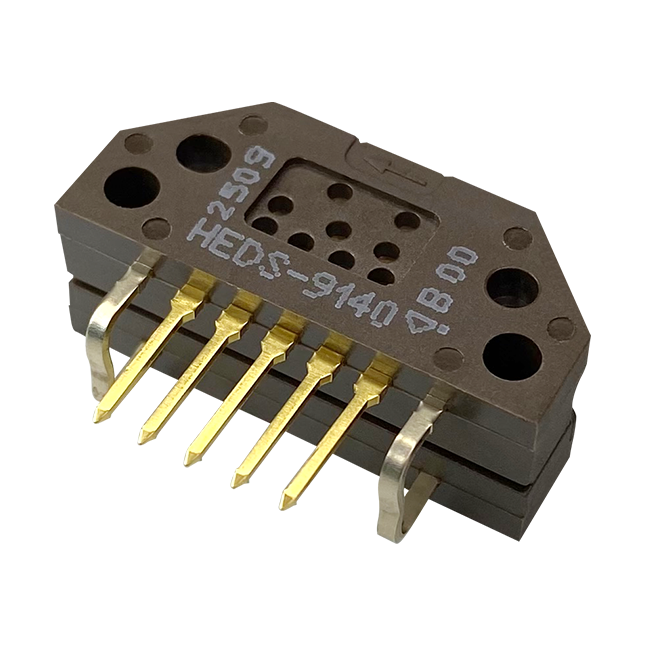

Sensor 91



HS30B / HS302

HS30C / HS303

  • Assembly Instructions

1.

Prepare the motor.

2.

Place the Ⓑencoder base.

3.

Place the Ⓕcentering tool onto the shaft.

4.

Tighten the mounting Ⓓscrews - short.

5.

Remove the Ⓕcentering tool.

6.

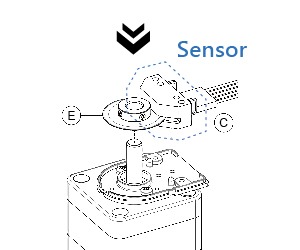

Slip the hubdisk with sensor assembly onto the shaft and base.

※HS301 Use Sensor 97



7.

Push the slider back to verify the code disk position.

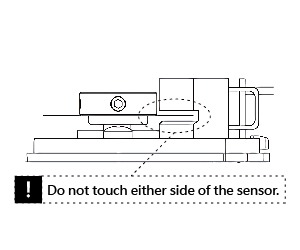

Install the disk with evenly spaced vertical clearance, slightly biased downward.

8.

Tighten the set screws.

9.

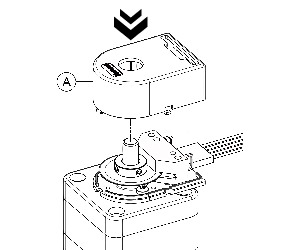

Close the Ⓐcover.

10.

The assembly process is now completed.

Specification

Output Waveform

Block Diagram

Ordering Information

Mechanical Drawing /Setting Dimension


Assembly Guide

Parts List

A. Cover x1

B. Base x1

C. Sensor 91+wire x1

D. Screws x2

E. Hubdisk x1

Installation Tool

F. Centering tool x1

G. Hex wrench x1







  • Sensor Introduction





Sensor 97



HS30A / HS301





Sensor 91



HS30B / HS302

HS30C / HS303

  • Assembly Instructions

1.

Prepare the motor.

2.

Place the Ⓑencoder base.

3.

Place the Ⓕcentering tool onto the shaft.

4.

Tighten the mounting Ⓓscrews - short.

5.

Remove the Ⓕcentering tool.

6.

Slip the hubdisk with sensor assembly onto the shaft and base.

※HS301 Use Sensor 97



7.

Push the slider back to verify the code disk position.

Install the disk with evenly spaced vertical clearance, slightly biased downward.

8.

Tighten the set screws.

9.

Close the Ⓐcover.

10.

The assembly process is now completed.
