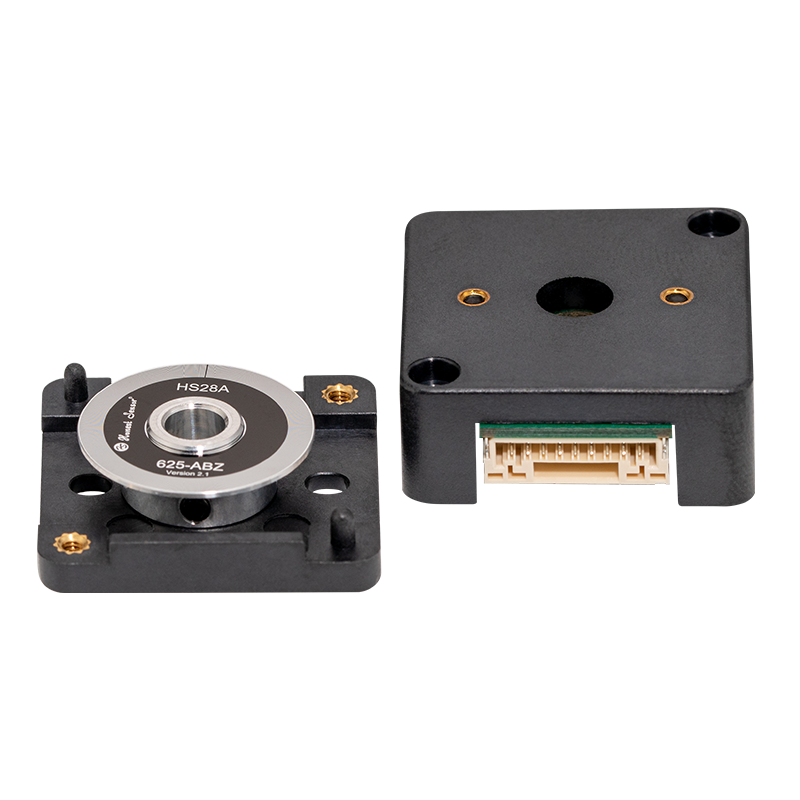

HS28H
Model Encoder Modules_Incremental
500~2500 PPR │ -20 ~ +85℃

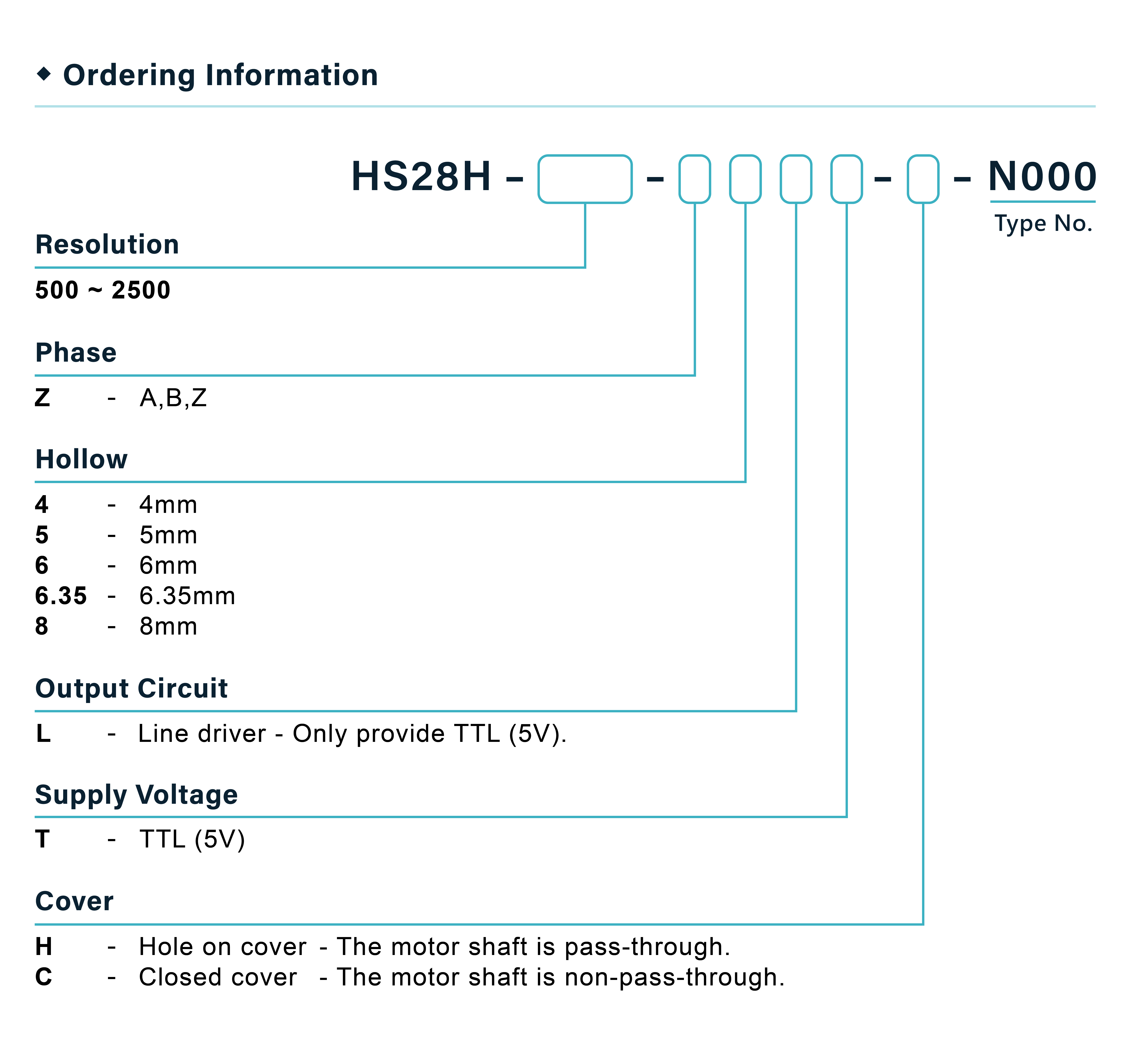

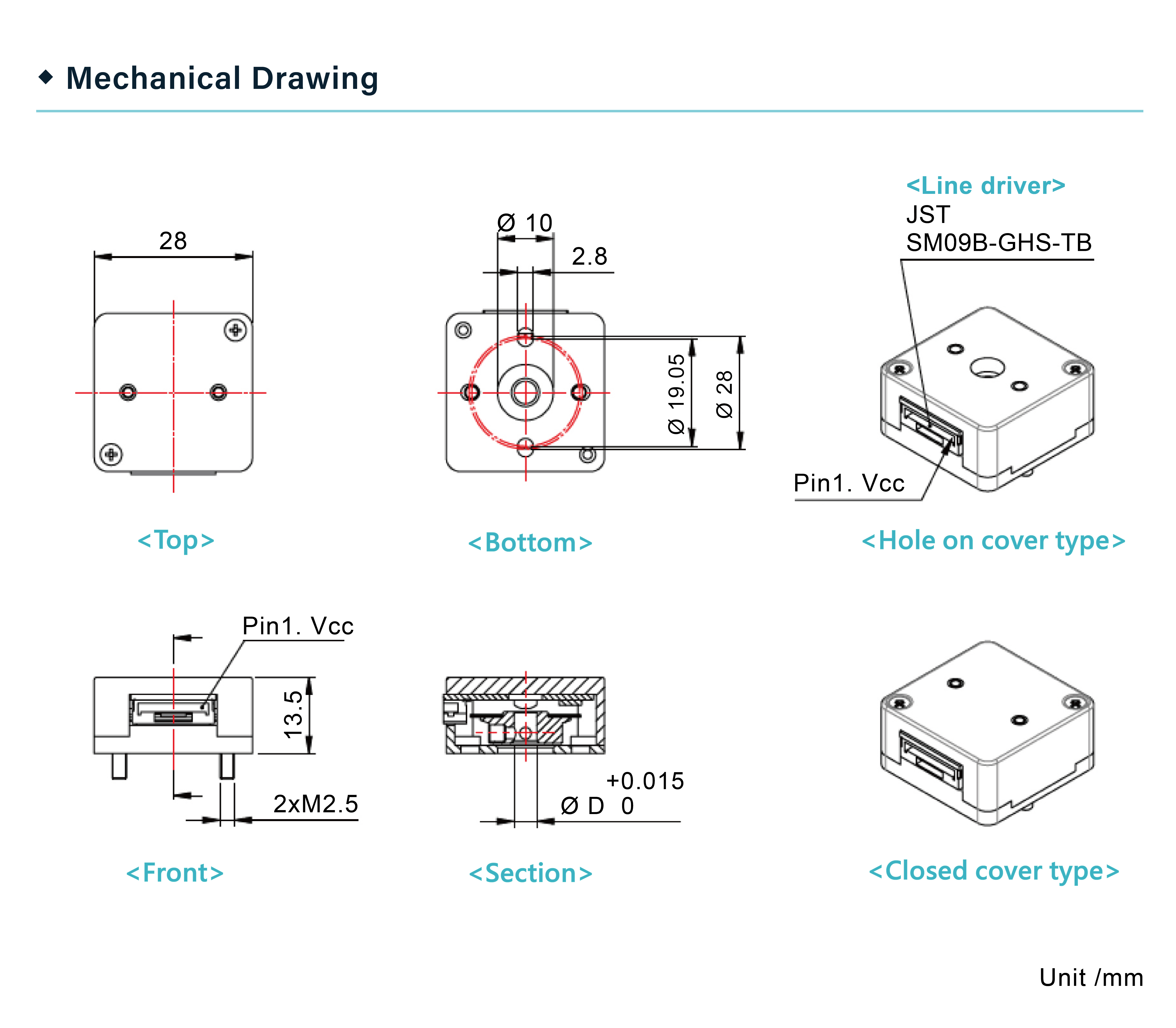

Product Description

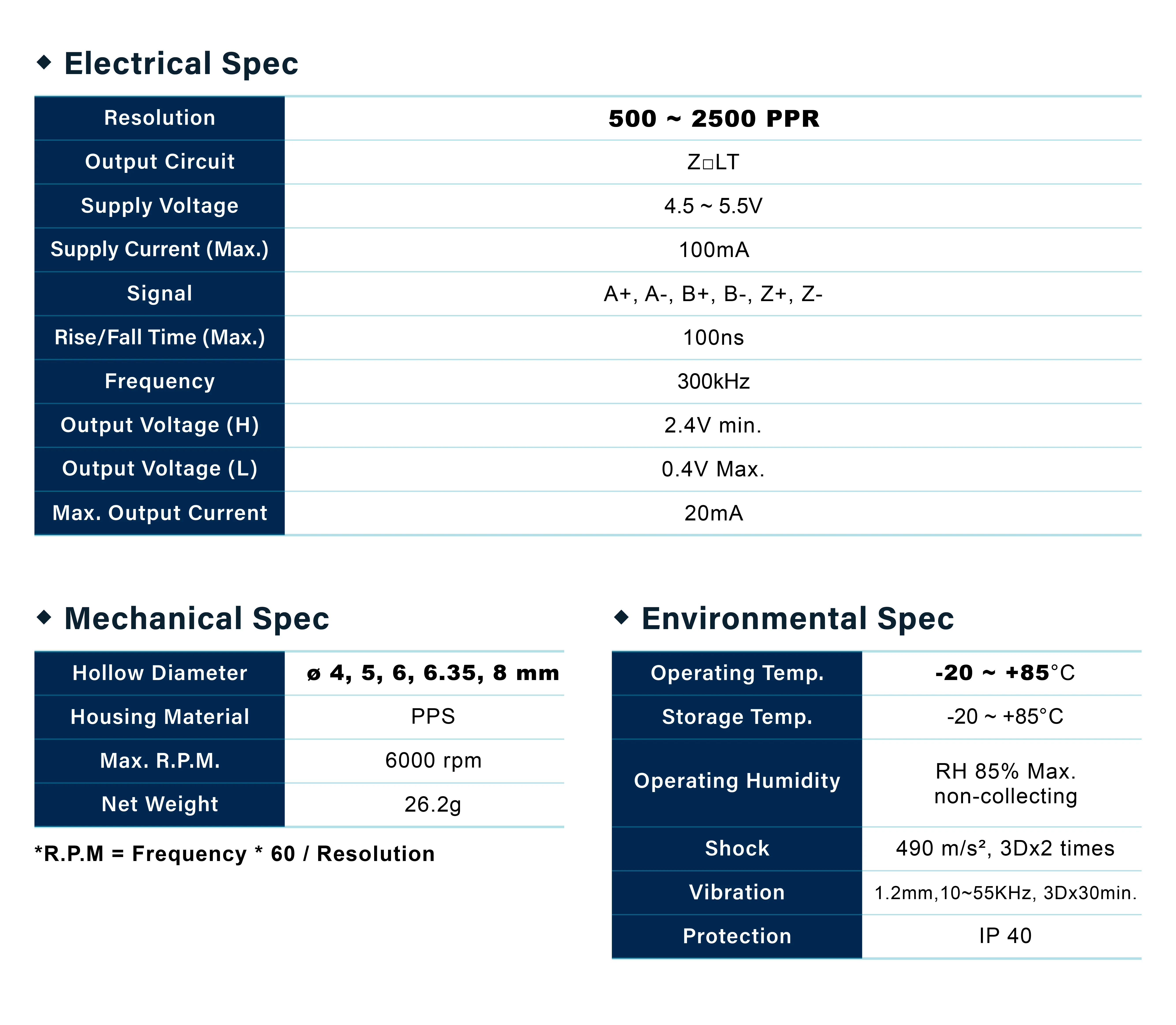

Resolution ：
Hollow ：

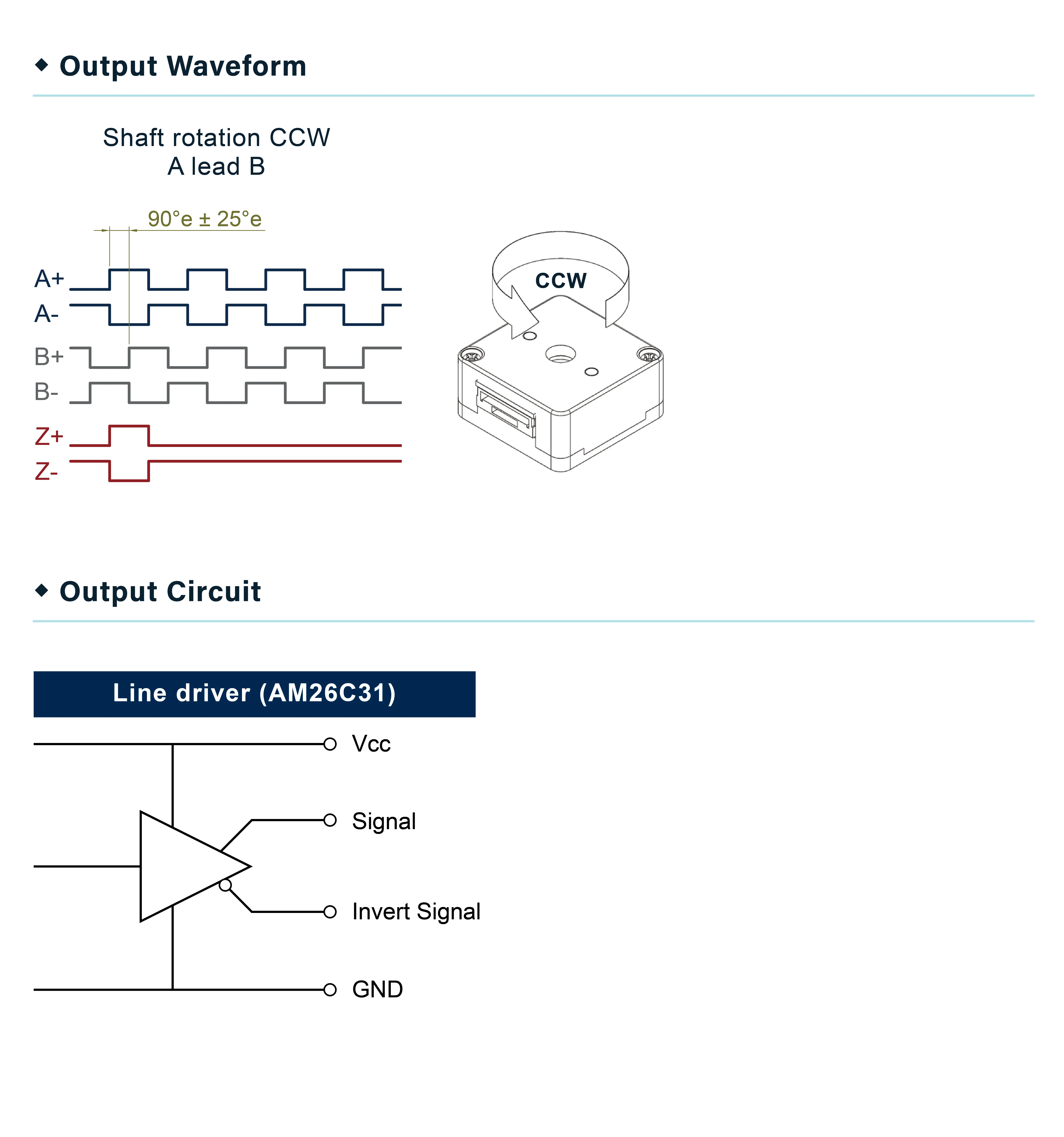

Output circuit ：
Cover ：
Cable length ：
Installation tool ：
Quantity：

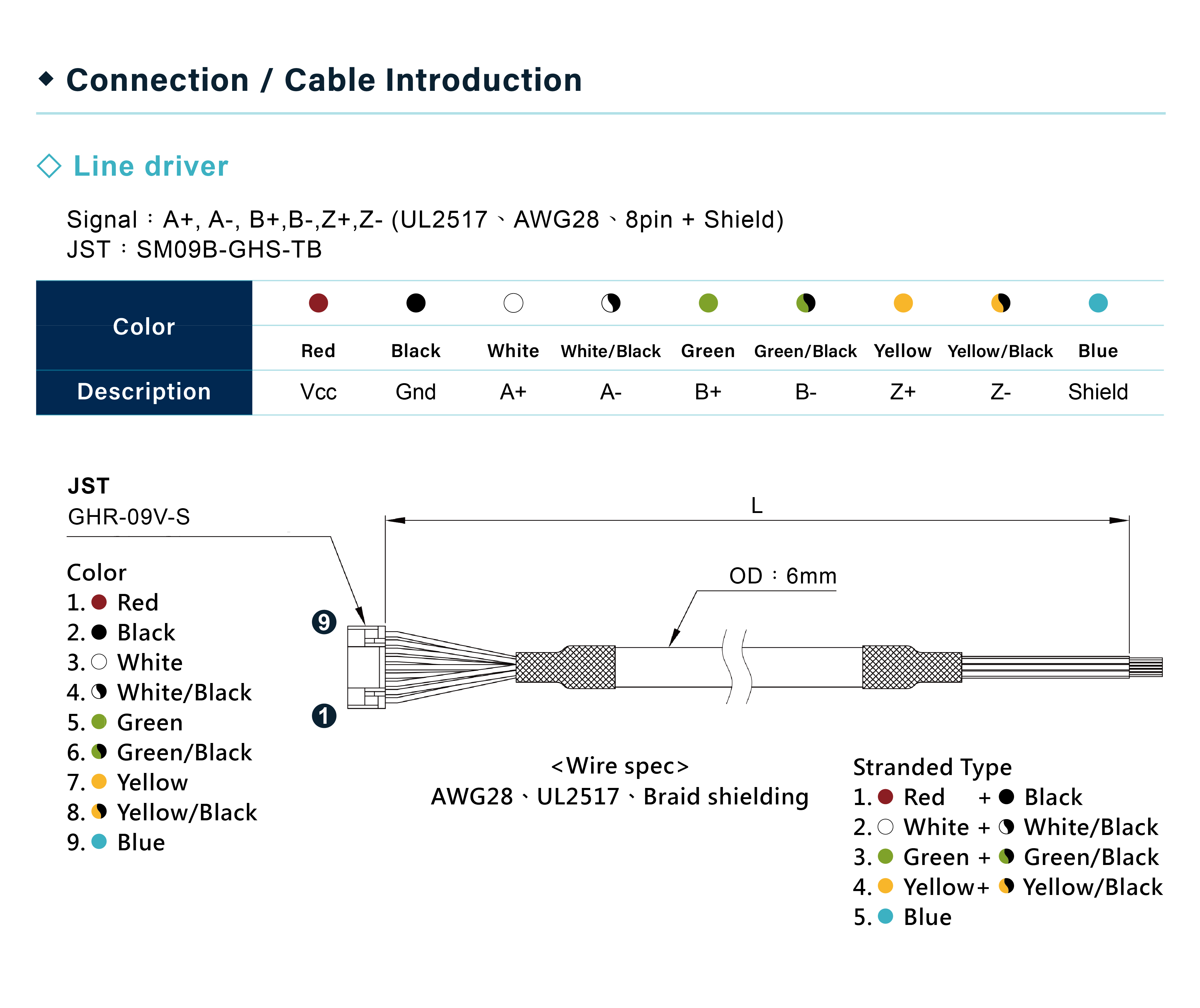

Cable length
500mm、1000mm、2000mm
A. Cover x1
B. Base x1
C. Hubdisk x1
D. Screws x2
E. Screws x2
F. Cable (Option) x1
G. Centering tool x1
H. Space tool x1
I. Hex wrench x1

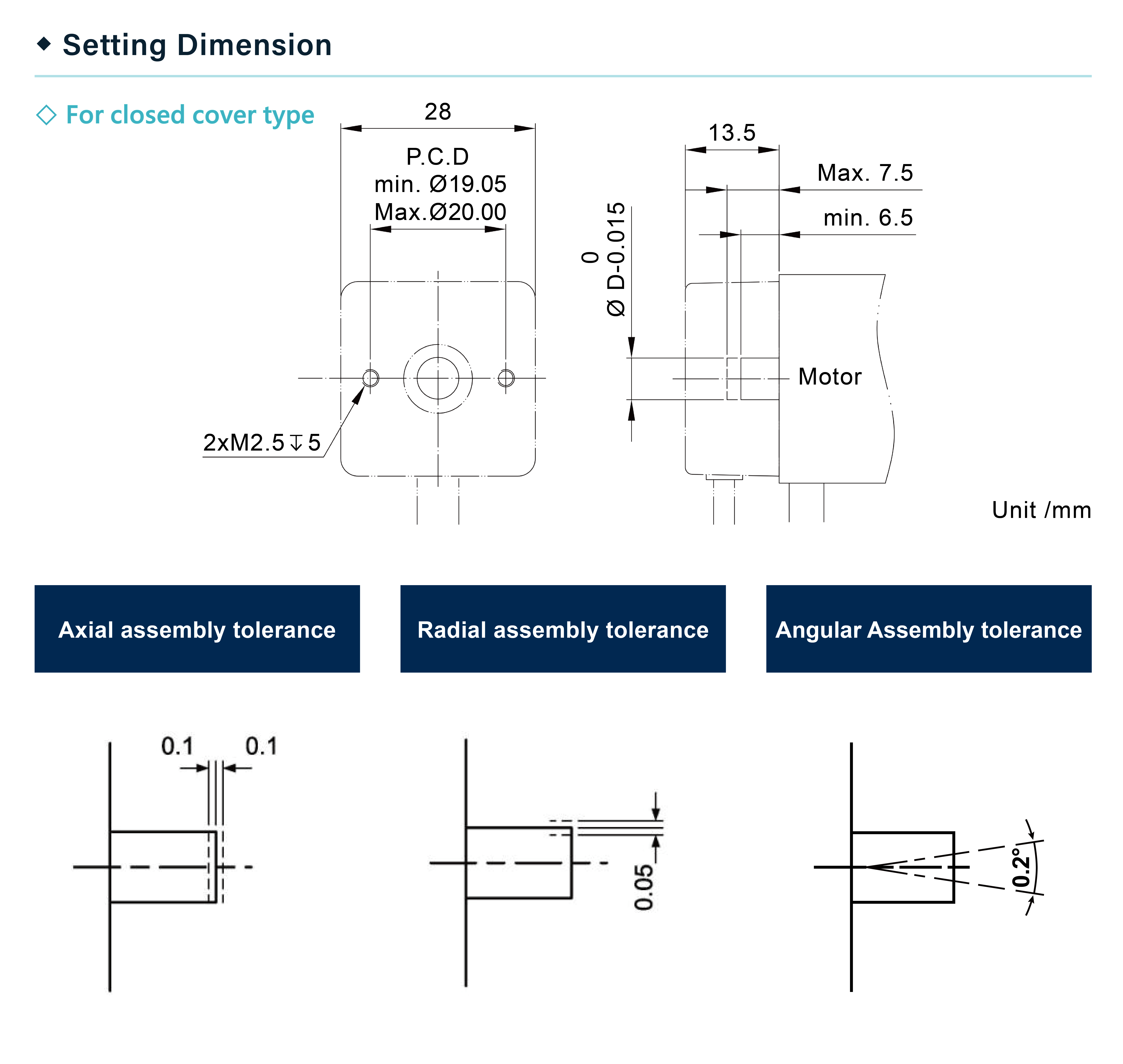

Prepare the motor.

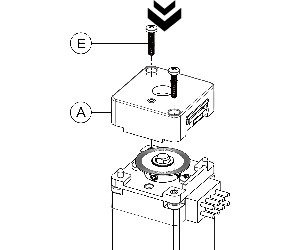

The bottom part is mounted on top of the motor.
(Feature is in the same direction as motor outlet)
Place the centering tool onto the shaft.
Tighten the mounting screws.
Remove the centering tool.
Place the spacing tool.

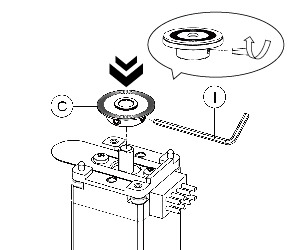

Install the hubdisk onto the motor shaft.
Use a hex wrench to secure the position.
Tighten the screws of the hubdisk.
Remove the spacing tool.
Close the cover.
Assemble the cable.
Cable length
500mm、1000mm、2000mm
A. Cover x1
B. Base x1
C. Hubdisk x1
D. Screws x2
E. Screws x2
F. Cable (Option) x1
G. Centering tool x1
H. Space tool x1
I. Hex wrench x1
Prepare the motor.
The bottom part is mounted on top of the motor.
(Feature is in the same direction as motor outlet)
Place the centering tool onto the shaft.
Tighten the mounting screws.
Remove the centering tool.
Place the spacing tool.
Install the hubdisk onto the motor shaft.
Use a hex wrench to secure the position.
Tighten the screws of the hubdisk.
Remove the spacing tool.
Close the cover.
Assemble the cable.
