HS28C

|PRODUCTS|

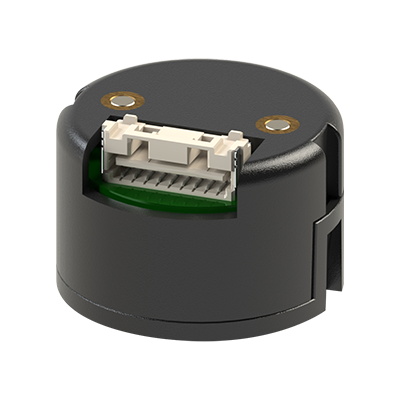

HS28C

Model Encoder Modules_Incremental
150~8192 PPR │ -40 ~ +100℃

Product Description

● Application
‧Stepping motor
‧Automated equipment

● Feature
‧ Excellent value
‧ Compact size
‧ Efficient mounting mechanism

Share:

Resolution :

1503004004505005126008009001000102412001600180020002048240032003600400040966400720080008192Customized

Hollow :

4mm5mm6mm6.35mm8mmCustomized

Output circuit :

L (Line driver)Customized

Supply voltage :

TTL (5V)

Base :

D (Default)-19.05mmE (Ears)-34mmCustomized

Cable length :

500mm1000mm2000mmCustomizedNo Line

Installation tool :

Comes with the goods according to ratio

Quantity:

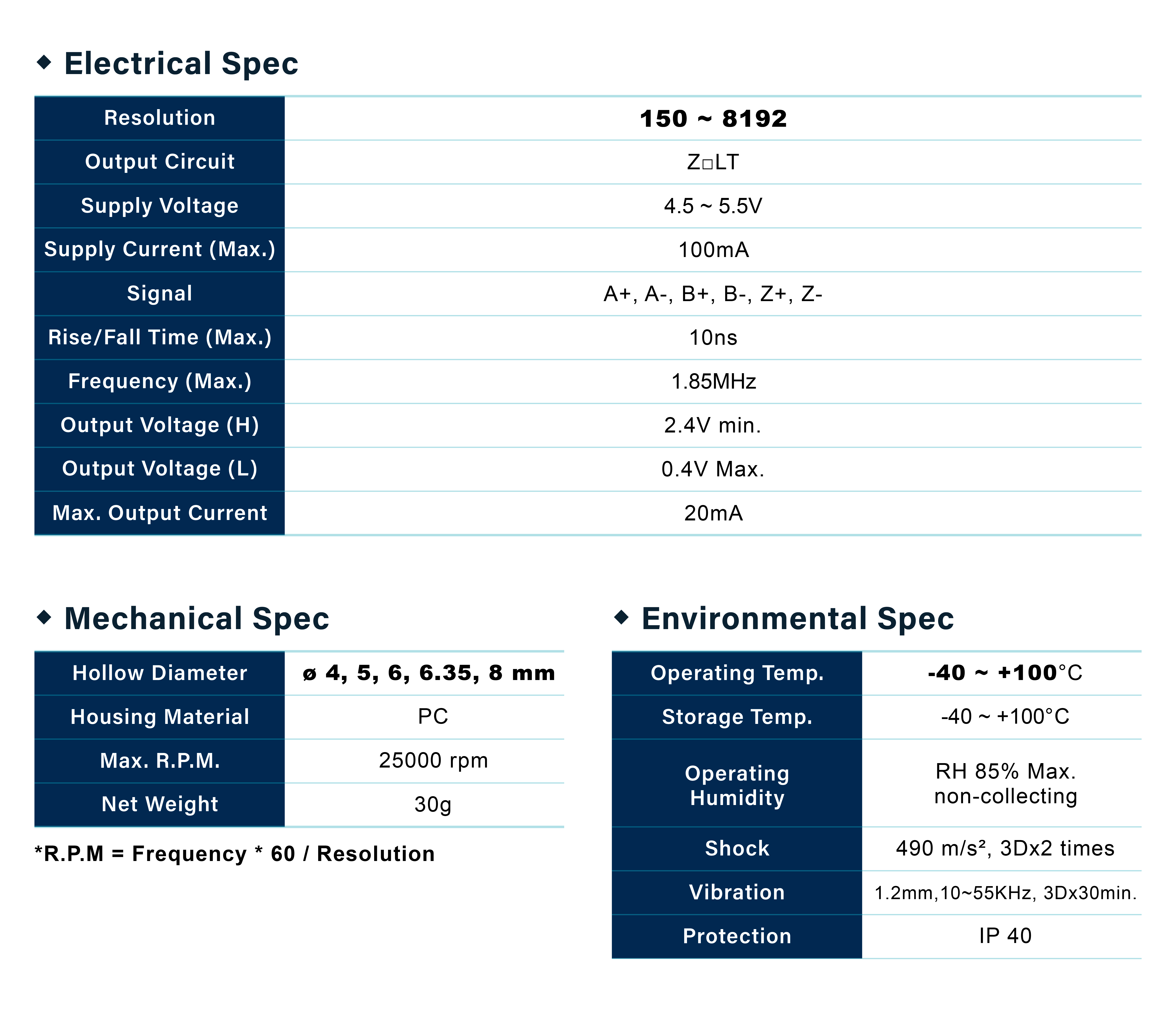

Specification

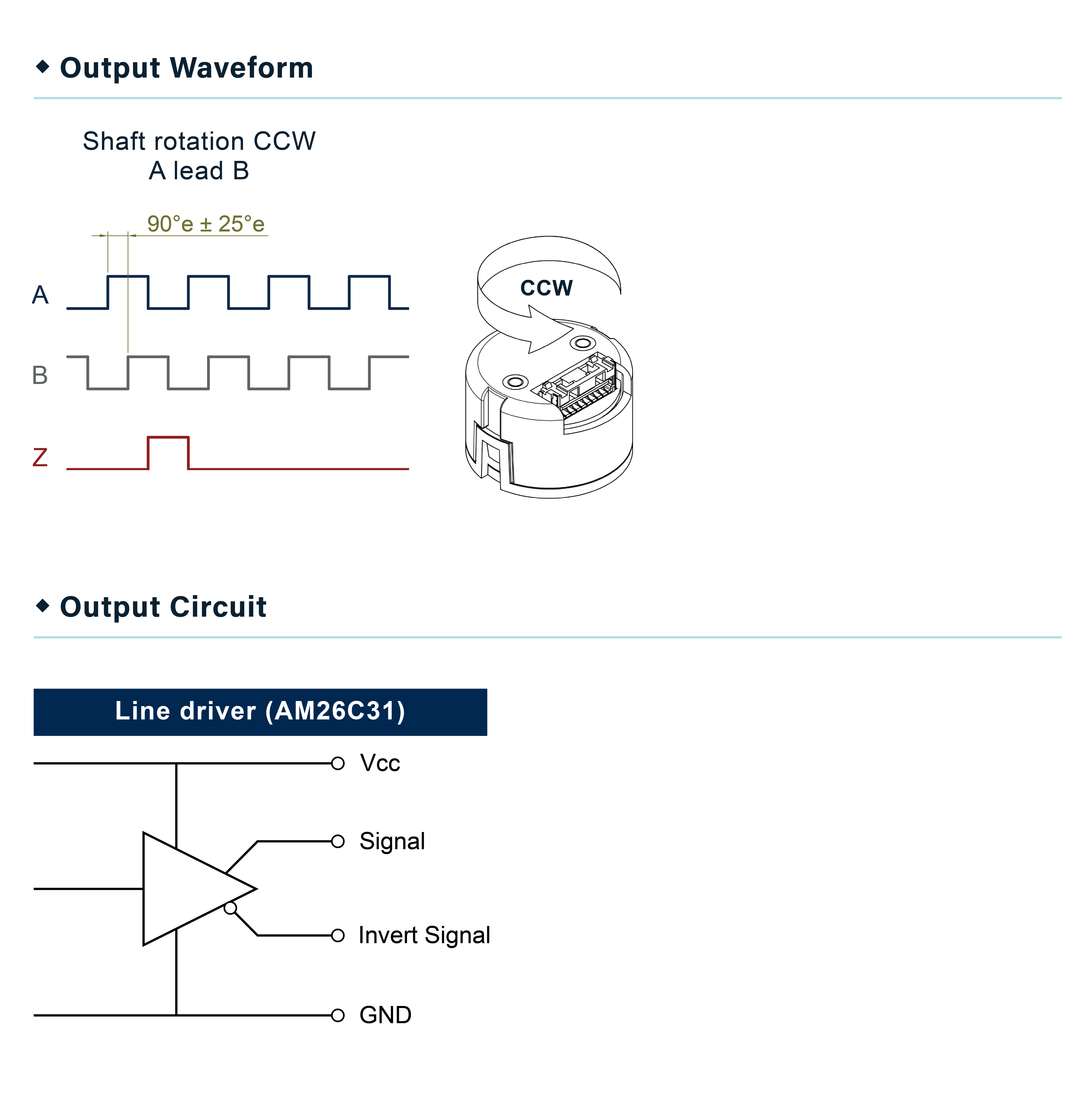

Output Waveform /Circuit

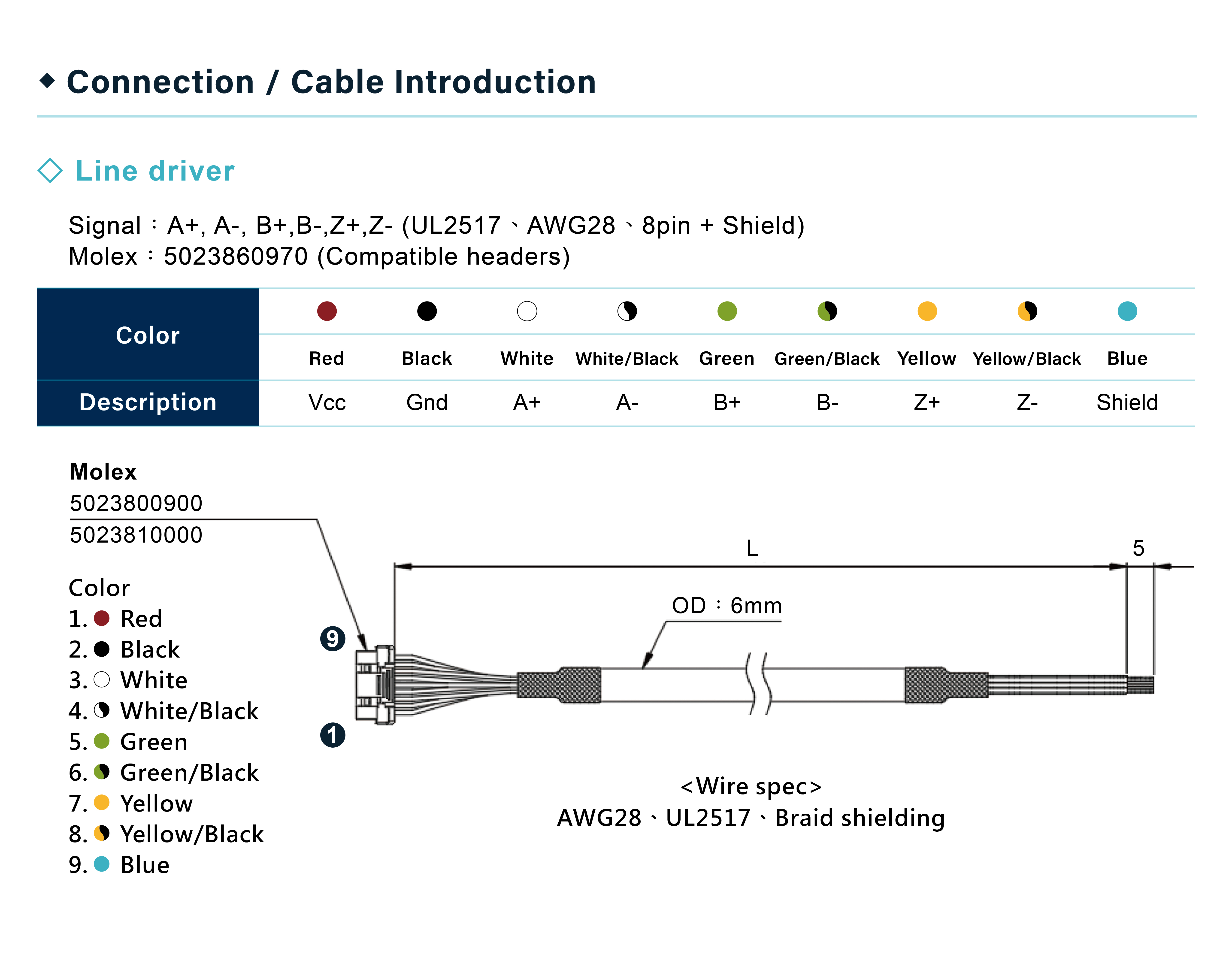

Connection /Cable Introduction
Ordering Information

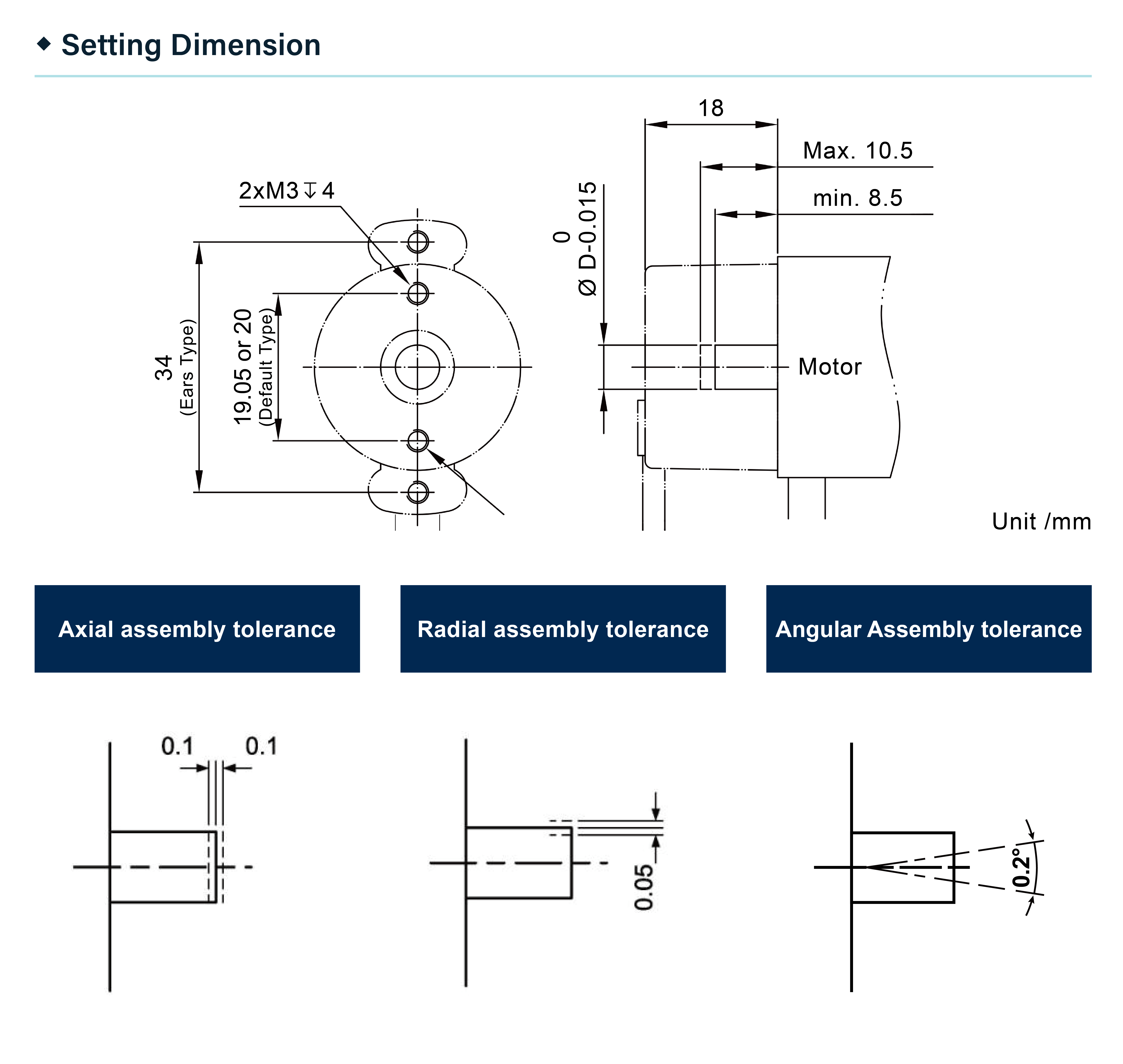

Mechanical Drawing /Setting Dimension
Assembly Guide
Downloads



Cable length

500mm、1000mm、2000mm







Parts List

A. Cover x1
B. Base x1
C. Screws x2
D. Hubdisk x1
E. Cable x1

Installation Tool

F. Centering tool x1
G. Space tool x1
H. Hex wrench x1




  • Assembly Instructions :

1.

Prepare the motor.

2.

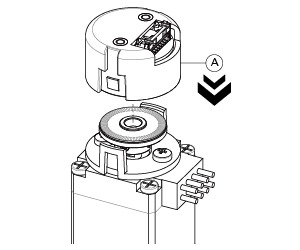

The bottom part is mounted on top of the motor.

3.

 Place the centering tool onto the shaft.



4.

Tighten the mounting screws.

5.

Remove the centering tool.

6.

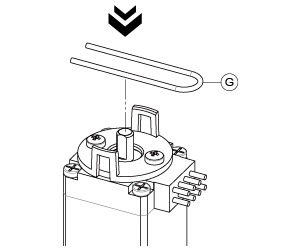

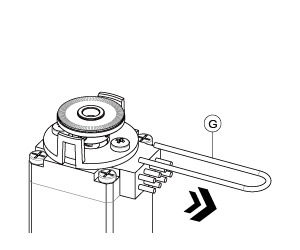

Place the spacing tool.

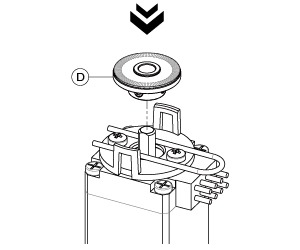

7.

Install the hubdisk onto the motor shaft.

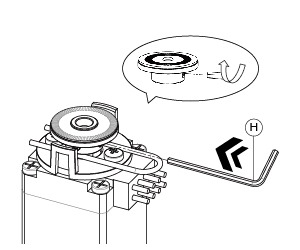

8.

Use a hex wrench to secure the position.

Tighten the set screws of the hubdisk.

9.

Remove the spacing tool.

10.

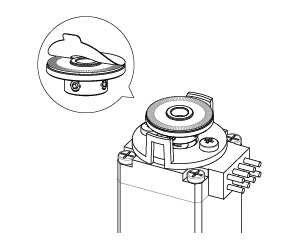

Please carefully remove the protective film.

11.

Close the cover.

12.

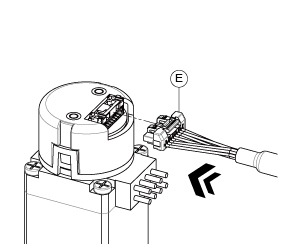

Assemble the cable.

13.

The assembly process is now completed.

Specification

Output Waveform /Circuit

Connection /Cable Introduction

Cable length

500mm、1000mm、2000mm

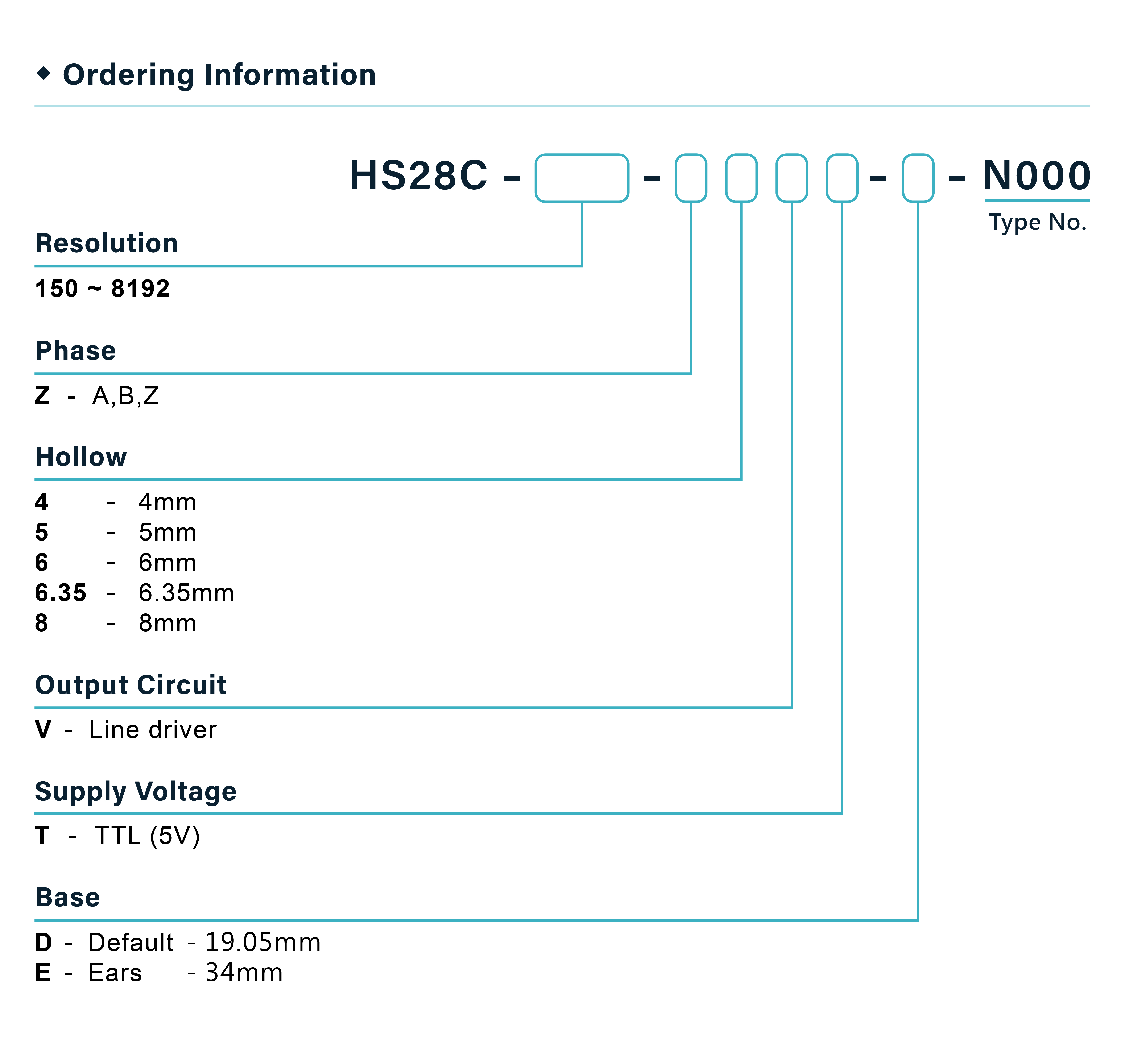

Ordering Information

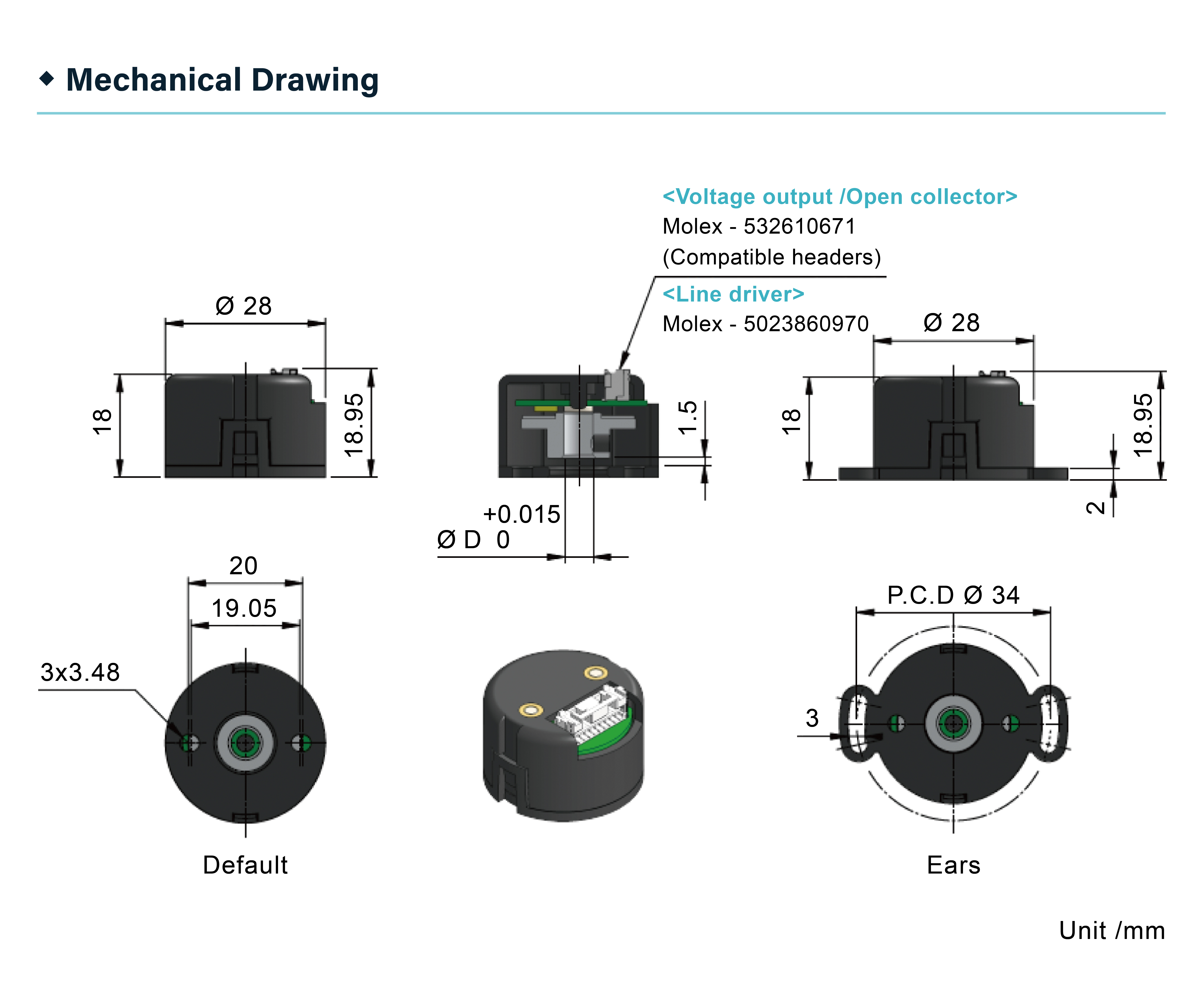

Mechanical Drawing /Setting Dimension



Assembly Guide



Parts List

A. Cover x1
B. Base x1
C. Screws x2
D. Hubdisk x1
E. Cable x1

Installation Tool

F. Centering tool x1
G. Space tool x1
H. Hex wrench x1




  • Assembly Instructions :

1.

Prepare the motor.

2.

The bottom part is mounted on top of the motor.

3.

 Place the centering tool onto the shaft.



4.

Tighten the mounting screws.

5.

Remove the centering tool.

6.

Place the spacing tool.

7.

Install the hubdisk onto the motor shaft.



8.

Use a hex wrench to secure the position.

Tighten the set screws of the hubdisk.

9.

Remove the spacing tool.

10.

Please carefully remove the protective film.

11.

Close the cover.

12.

Assemble the cable.

13.

The assembly process is now completed.
