HS28A
Model Encoder Modules_Incremental
360~10000 PPR │ -20 ~ +85℃
Product Description

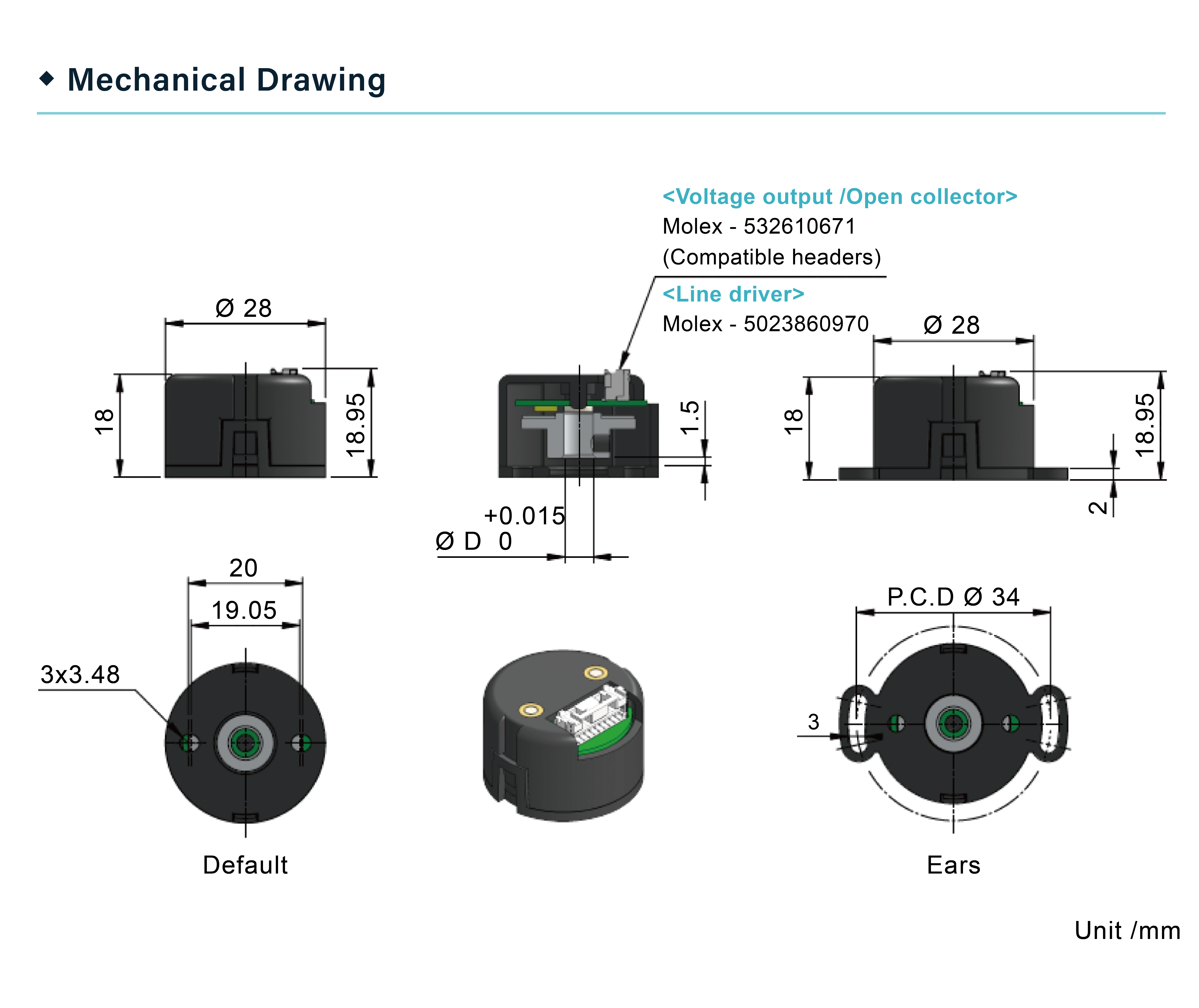

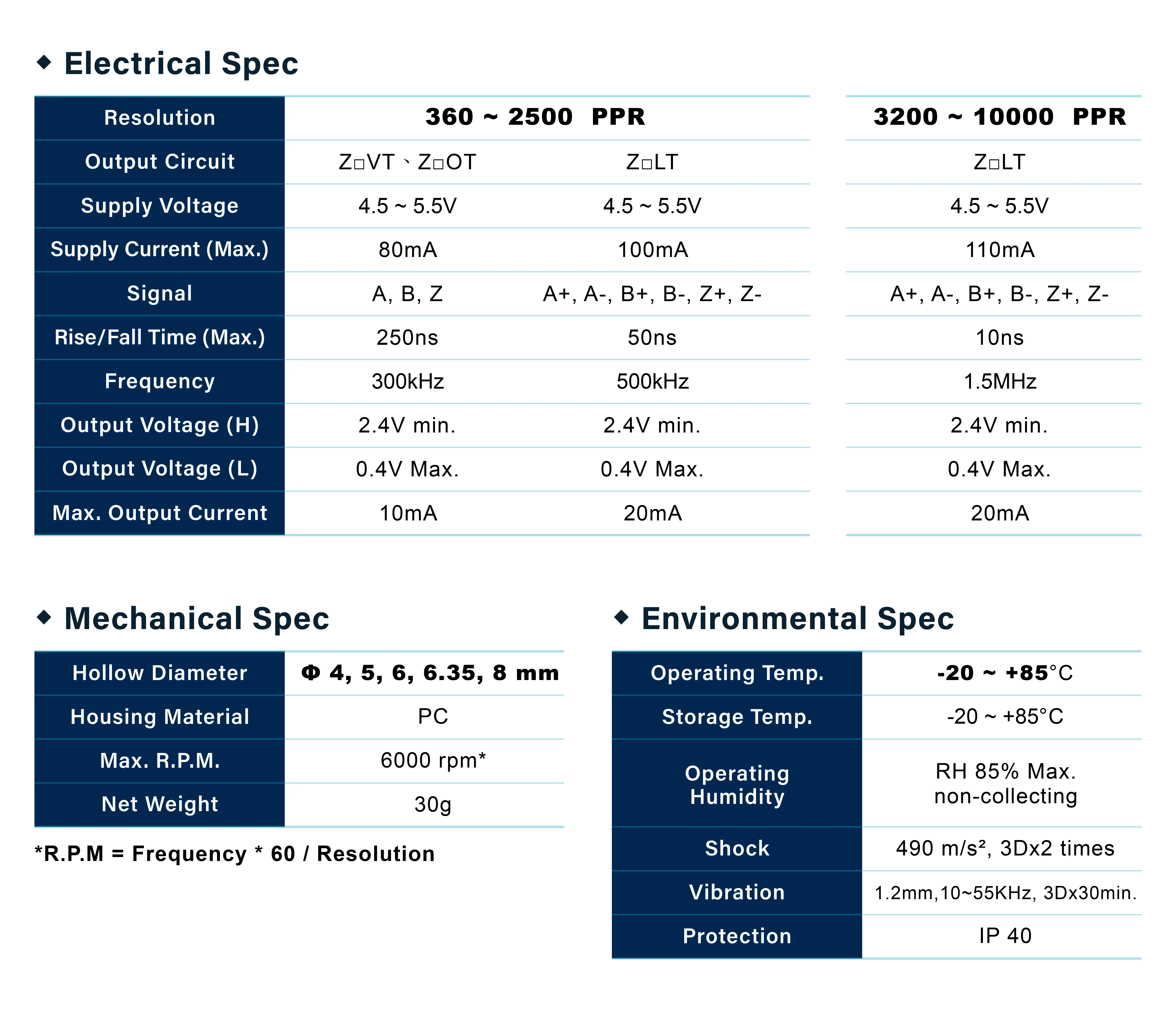

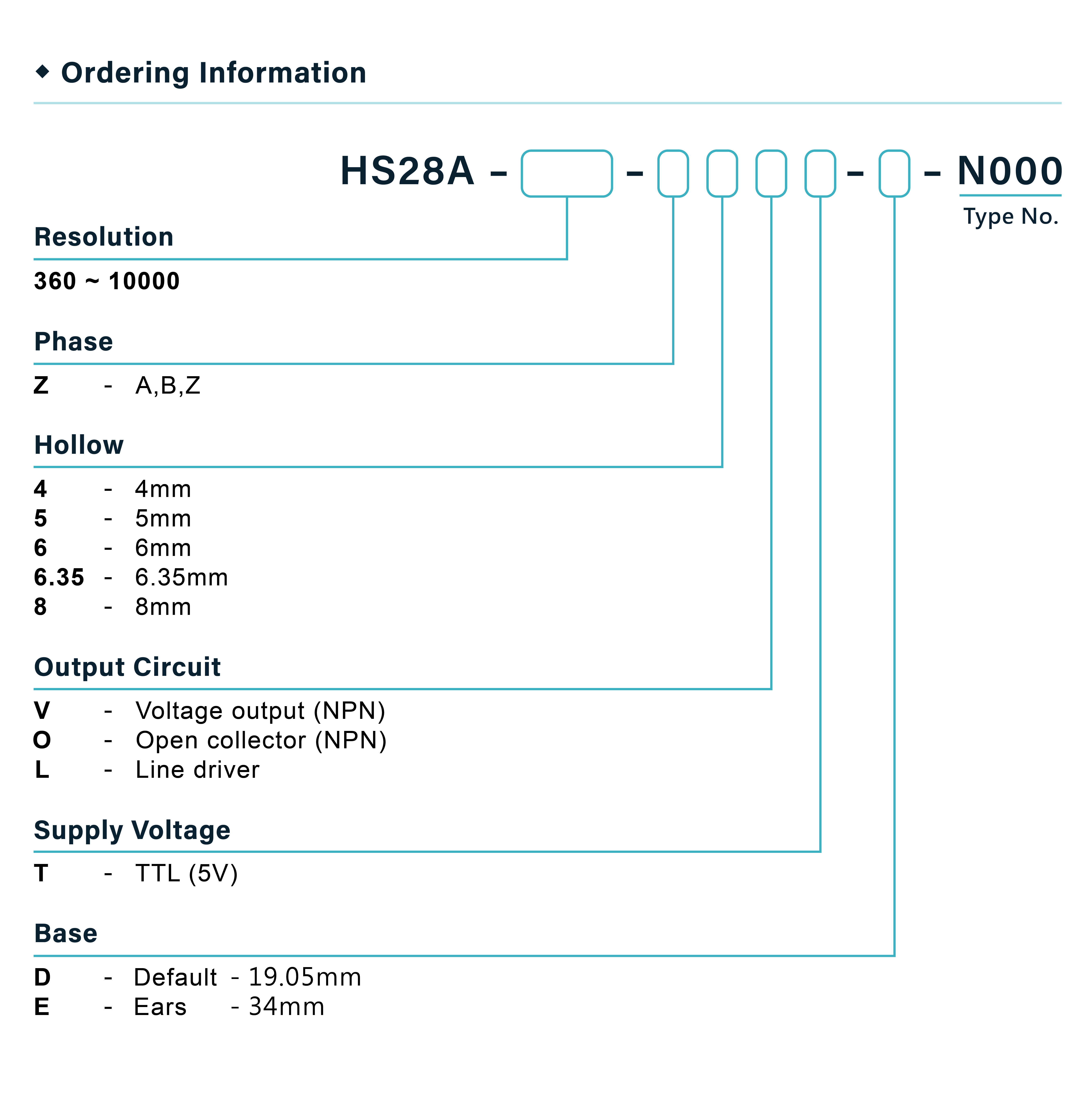

Resolution ：
Hollow ：

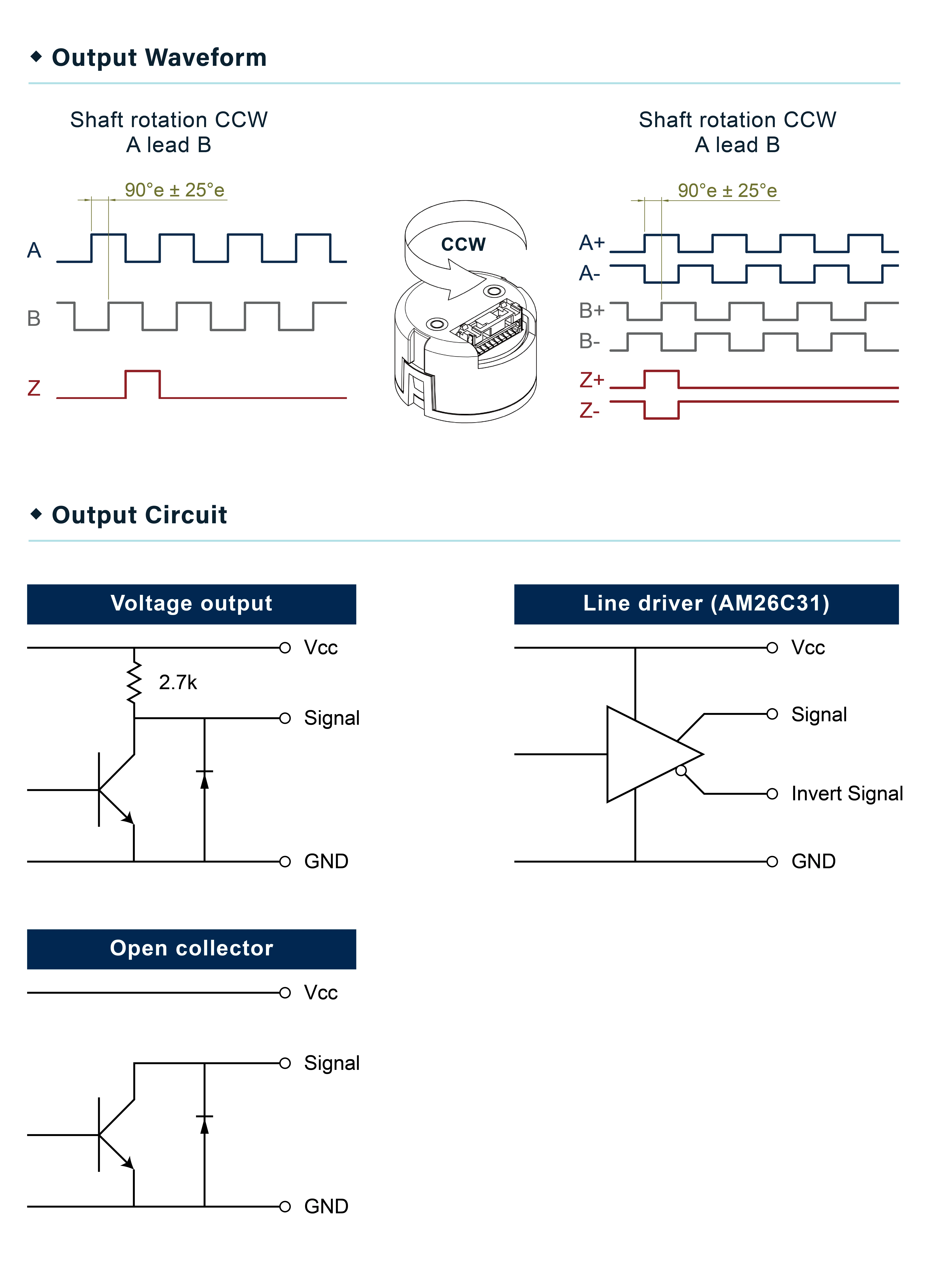

Output circuit ：
Supply voltage ：
Ba
Cable length ：
Installation tool ：
Quantity：

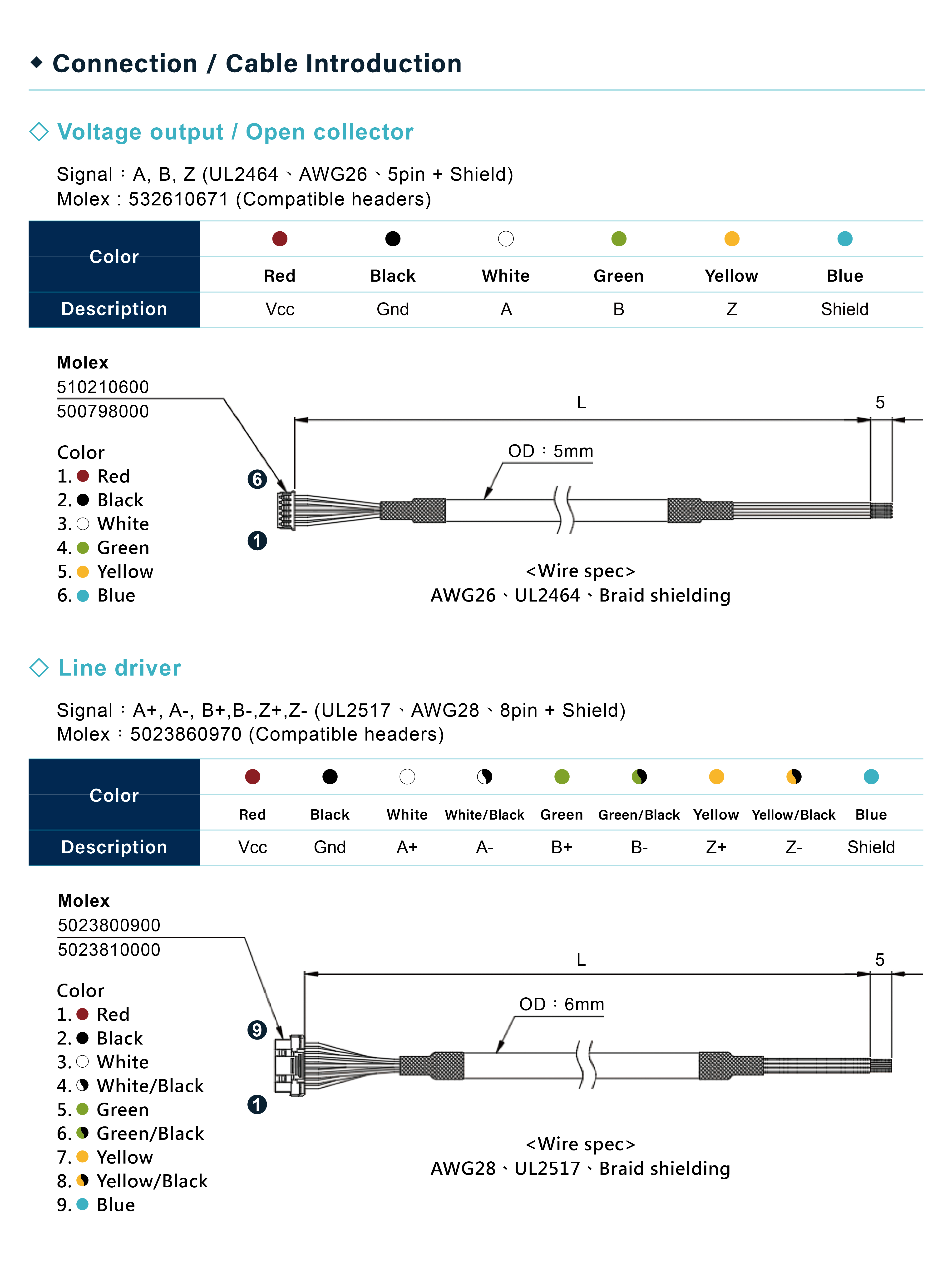

Cable length
500mm、1000mm、2000mm
A. Cover x1
B. Base x1
C. Screws x2
D. Hubdisk x1
E. Cable x1
F. Centering tool x1
G. Space tool x1
H. Hex wrench x1

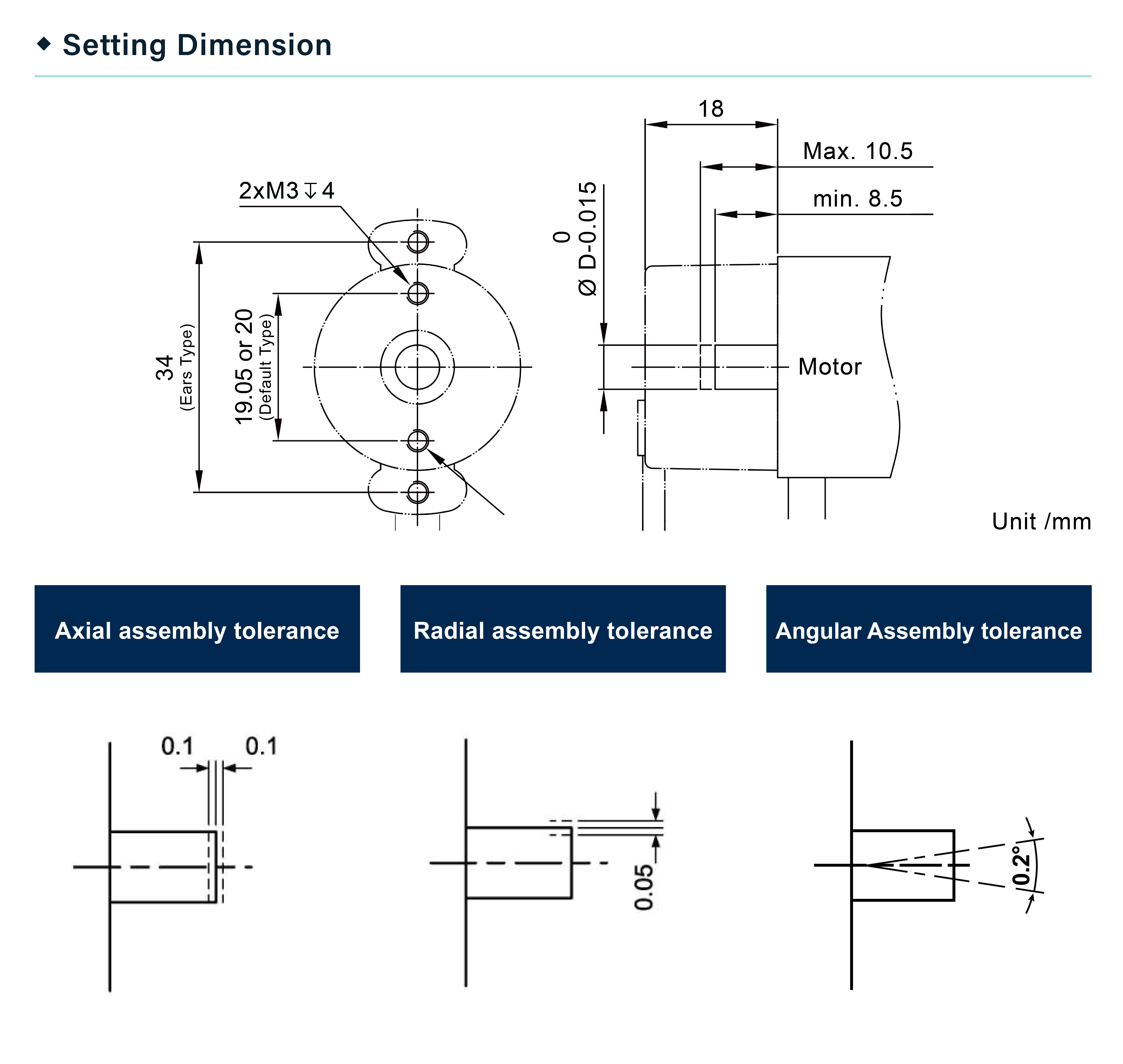

Prepare the motor.
The bottom part is mounted on top of the motor.
Place the centering tool onto the shaft.
Tighten the mounting screws.
Remove the centering tool.
Place the spacing tool.
Install the hubdisk onto the motor shaft.
Use a hex wrench to secure the position.
Tighten the screws of the hubdisk.
Remove the spacing tool.
Please carefully remove the protective film.
Close the cover.
Assemble the cable.
The assembly process is now completed.
Cable length
500mm、1000mm、2000mm
A. Cover x1
B. Base x1
C. Screws x2
D. Hubdisk x1
E. Cable x1
F. Centering tool x1
G. Space tool x1
H. Hex wrench x1
Prepare the motor.
The bottom part is mounted on top of the motor.
Place the centering tool onto the shaft.
Tighten the mounting screws.
Remove the centering tool.
Place the spacing tool.
Install the hubdisk onto the motor shaft.
Use a hex wrench to secure the position.
Tighten the screws of the hubdisk.
Remove the spacing tool.
Please carefully remove the protective film.
Close the cover.
Assemble the cable.
The assembly process is now completed.
