HS20A

|PRODUCTS|

HS20A

Model Encoder Modules_Incremental
200~8192 PPR │ -20 ~ +85℃

Product Description

● Application
‧Stepping motor
‧Automated equipment
‧Robot arm

● Feature
‧ Excellent value
‧ Compact size
‧ Efficient mounting mechanism

Share:

Resolution :

200250256300360400500 51260072080010001024120014401600200020488192Customized

Hollow :

2mm3mm4mmCustomized

Output circuit :

V (Voltage output)O (Open collector)L (Line driver)Customized

Cable length :

500mm1000mm2000mmCustomized

Installation tool :

Comes with the goods according to ratio

Quantity:

Specification
Output Waveform /Circuit
Connection /Cable Introduction
Ordering Information
Mechanical Drawing /Setting Dimension
Assembly Guide
Downloads






Cable length

500mm、1000mm、2000mm









Parts List

A. Cover x1
B. Base x1
C. Hubdisk x1
D. Pan head screws x2
E. Flat head screws x2
F. Cable x1

Installation Tool

G. Centering tool x1
H. Space tool x1
I. Hex wrench x1





  • Assembly Instructions :

1.

Prepare the motor.

2.

The bottom part is mounted on top of the motor.

3.

Place the centering tool onto the shaft.

4.

Tighten the mounting screws.

5.

Remove the centering tool.

6.

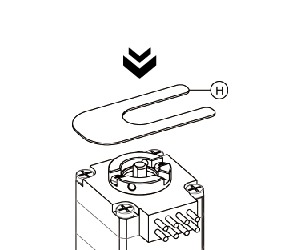

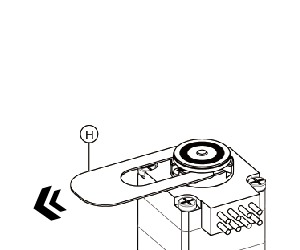

Place the spacing tool.

7.

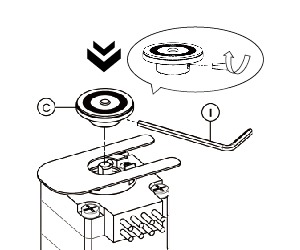

Install the hubdisk onto the motor shaft.

Use a hex wrench to secure the position.

Tighten the screws of the hubdisk.

8.

Remove the spacing tool.

9.

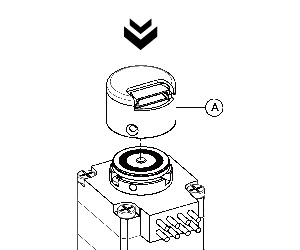

Close the cover.

10.

Tighten the flat head screws.

11.

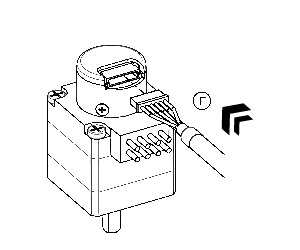

Assemble the cable.

12.

The assembly process is now completed.

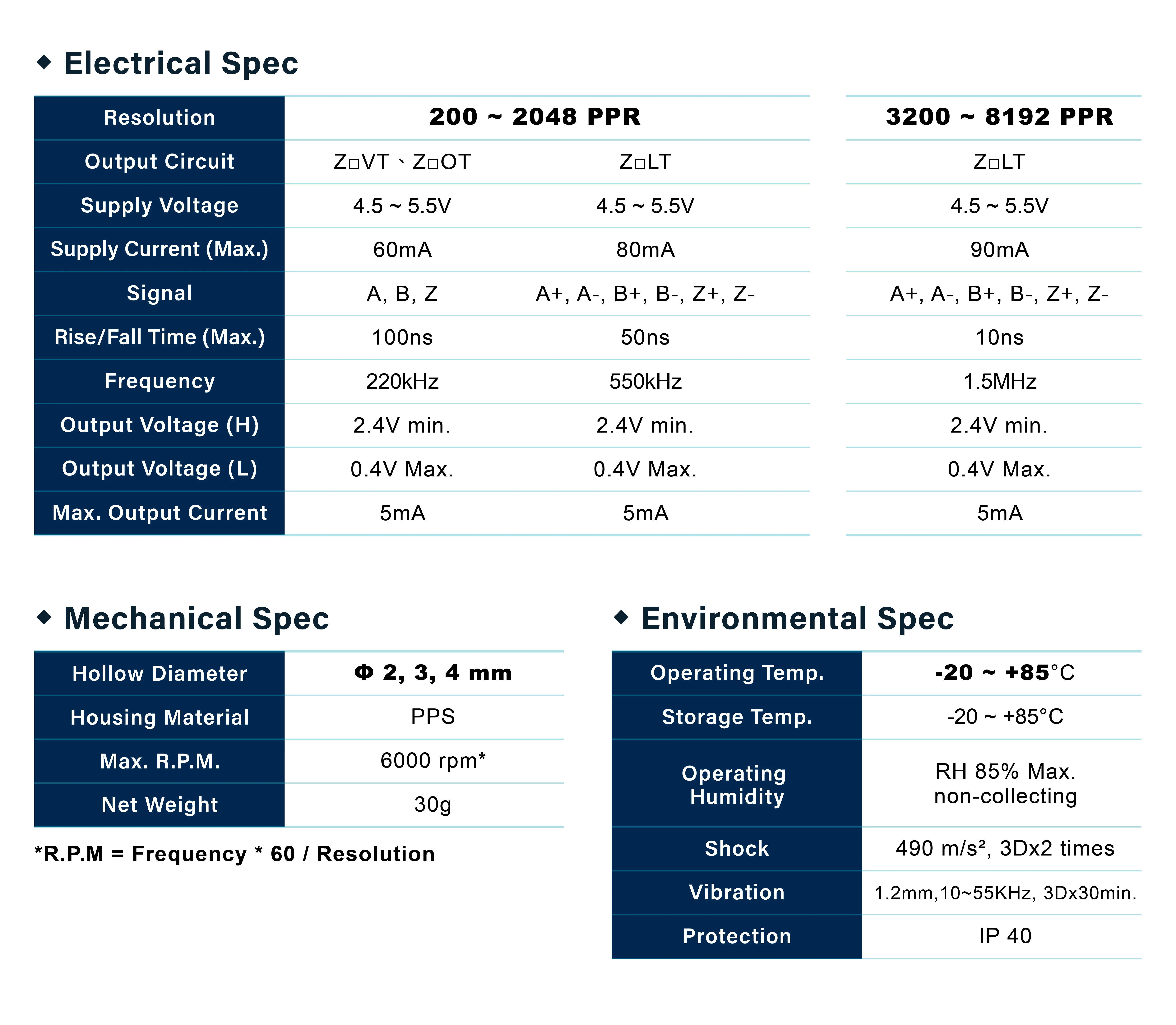

Specification

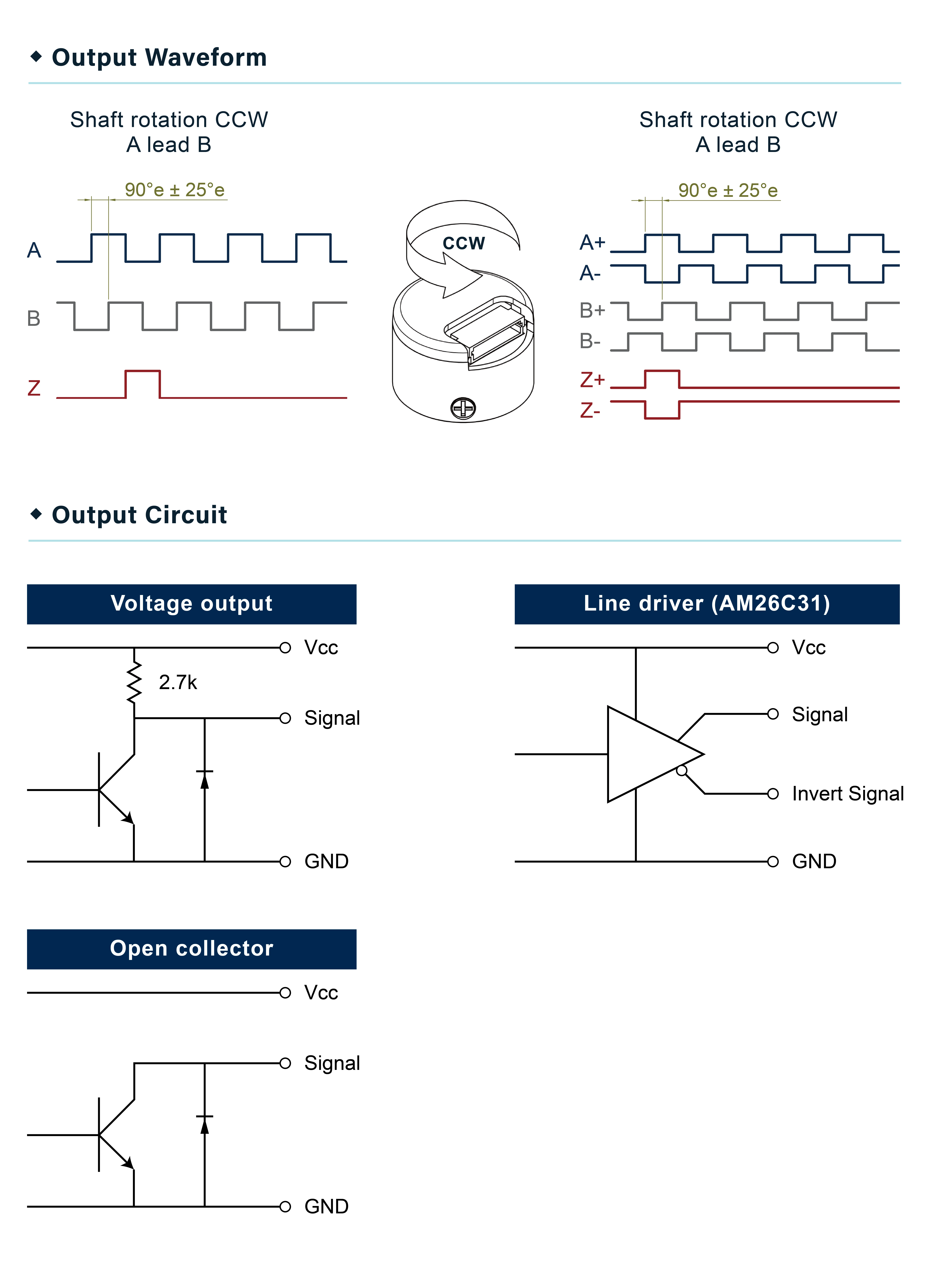

Output Waveform /Circuit




Connection /Cable Introduction

Cable length

500mm、1000mm、2000mm

Ordering Information

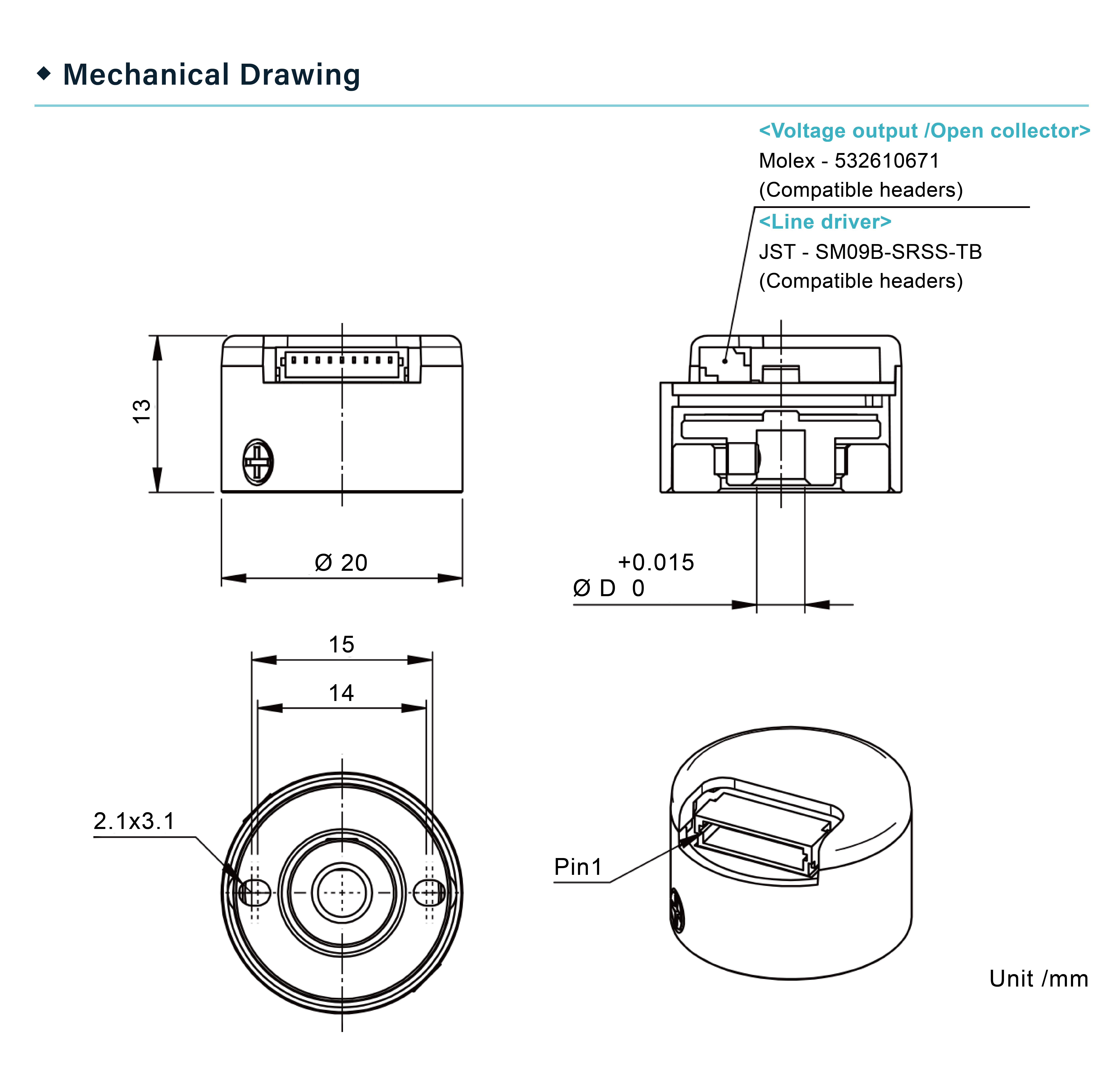

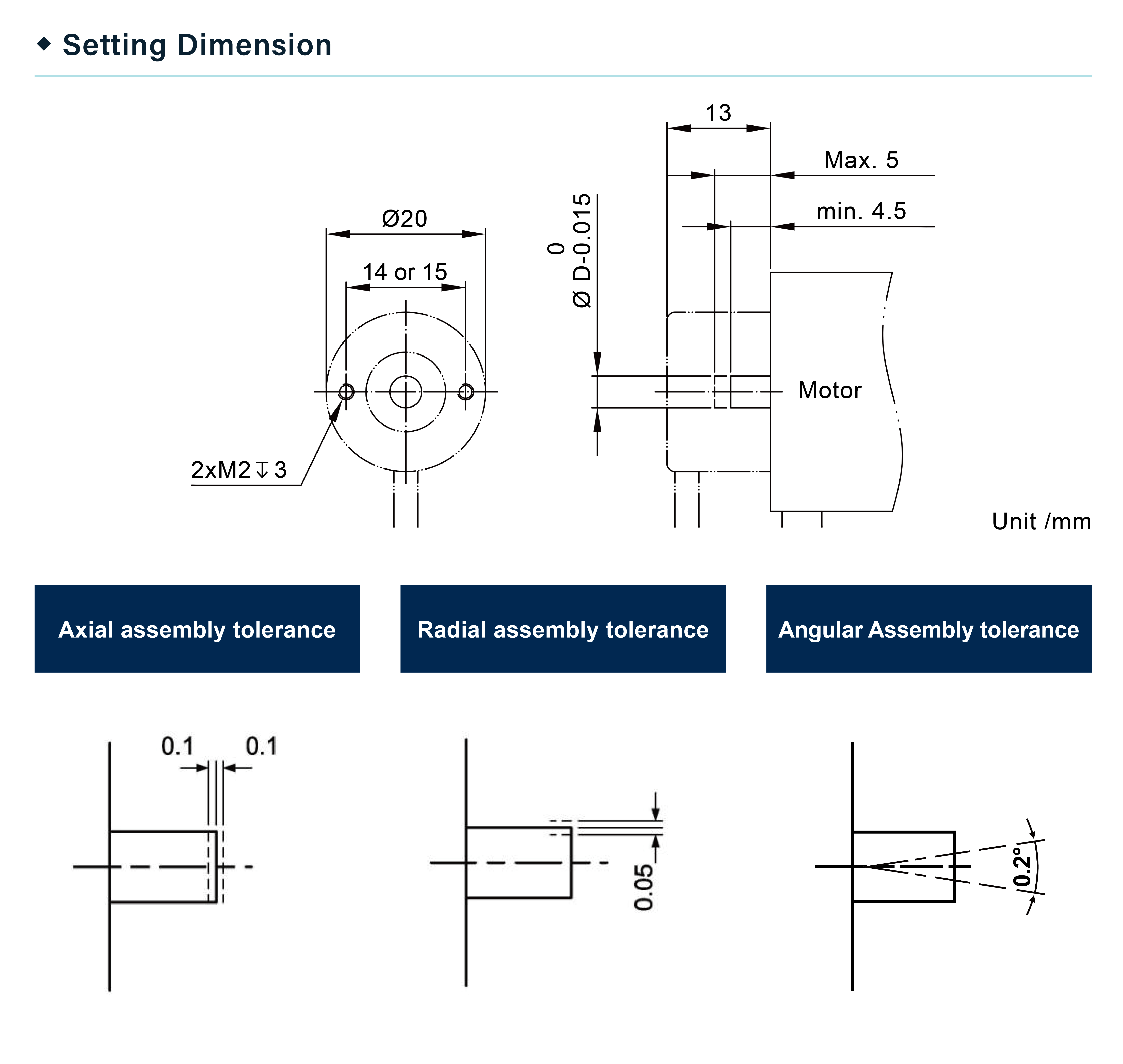

Mechanical Drawing /Setting Dimension






Assembly Guide

Parts List

A. Cover x1
B. Base x1
C. Hubdisk x1
D. Pan head screws x2
E. Flat head screws x2
F. Cable x1

Installation Tool

G. Centering tool x1
H. Space tool x1
I. Hex wrench x1





  • Assembly Instructions :

1.

Prepare the motor.

2.

The bottom part is mounted on top of the motor.

3.

Place the centering tool onto the shaft.

4.

Tighten the mounting screws.

5.

Remove the centering tool.

6.

Place the spacing tool.

7.

Install the hubdisk onto the motor shaft.

Use a hex wrench to secure the position.

Tighten the screws of the hubdisk.

8.

Remove the spacing tool.

9.

Close the cover.

10.

Tighten the flat head screws.

11.

Assemble the cable.

12.

The assembly process is now completed.
